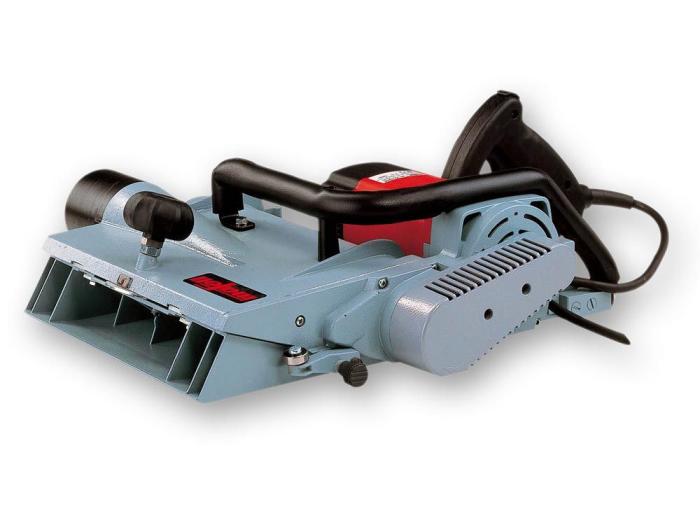

The Mafell ZH 320Ec is considered by most timber framers to be the finest wide format planer in the world. This 32cm planer is very lightweight at only 14kg, and extremely powerful. It has excellent sliding properties, even with moist timbers, due to special base-plate structure, and it even offers a new enhanced air duct for excellent chip removal.
As with most Mafell machines, the intelligent control electronics keep watch in the background to ensure smooth start-up and constant speed under load, and speed reduction to protect the machine without load and overload protection. After switching off, the highly efficient tool brake stops the cutter head in seconds for added safety.
The ZH 320Ec features guide rollers for maximum utilisation of the planing width, and easy-to-change Reversible Blades for high productivity planing.
Make an enquiry about the Mafell ZH320Ec Carpentry Planer
Chip Ejector
The new chip ejector with excellent chip removal via enhanced air flow and new air duct makes blockages due to wet chips a thing of the past!
High quality standard means lower machine costs and longer service life.
Practical lightweight, ergonomic handle ensures exemplary handling.
With guide rollers - for maximum utilisation of the planing width.
Disposable reversible knife system means no more time-consuming planing knife adjustment.
| Cutting capacity | 320mm |
|---|---|
| Motor | 230 V / 50 Hz |
| Weight | 14kg |
Planing width 320 mm
Planing depth 0 - 3 mm
Cutter head diameter 74 mm
Nominal No. of strokes – no load 8500 1/min
Nominal power input 2700 W
Weight 14 kg
Universal motor 230 V / 50 Hz
Specifications are subject to change without notice.
Mafell AG manufactures high-end woodworking power tools specialised for carpentry, founded in 1899.
