Janssens - the versatile edgebander. Proudly manufactured in NZ and sold worldwide.
Using hot air to re-activate pre-glued edgetapes, a Janssens is the ideal machine for short runs and intermittent use.
- Versatile - virtually all types of edge from wood veneers to 3mm PVC can be applied to curved or straight panels
- A quality edge - precise electronic temperature control combines with fully variable feed speed to achieve perfect bonding for all edge types, without scratching or marking
- Edgings of stiffer material such as Tekton laminated wood made easy with Janssens unique ‘variable fence-line'
- An ultra-reliable pneumatic tape feed with variable pressure
- Proven reliability - good functional design, careful manufacture and quality components
- Ready to go in minutes and so easy to use.

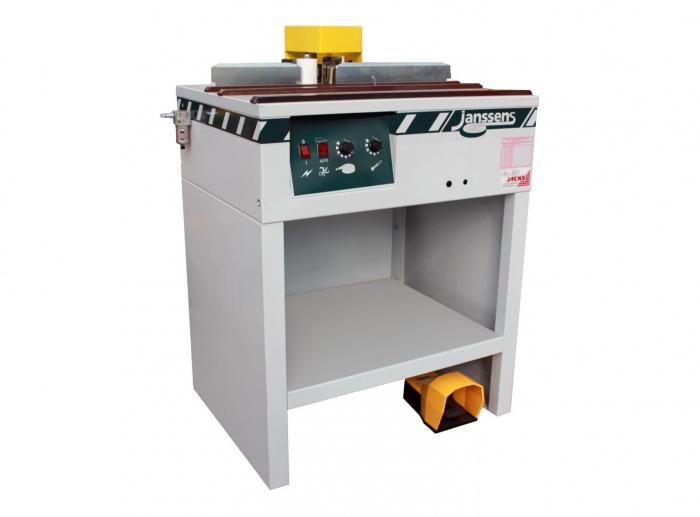

NB The image above shows the machine with table extensions, which are an optional extra.
Make an enquiry about the Janssens VTJ Edgebander

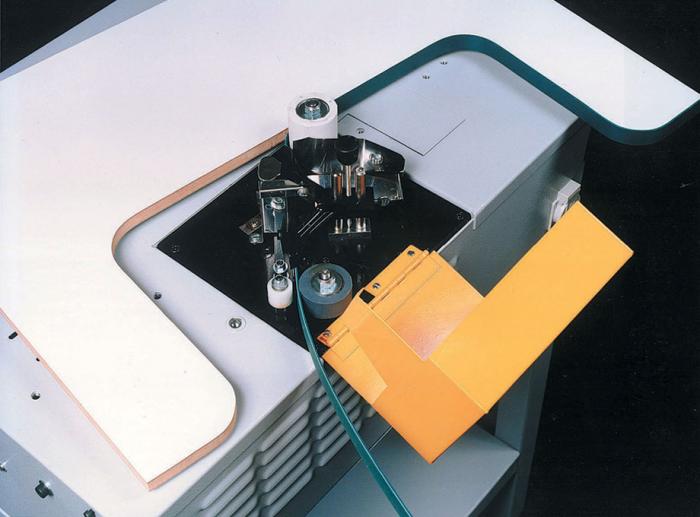

Inside and outside curves are easy
The central working area is very compact, allowing complex and tight shapes to be edged.

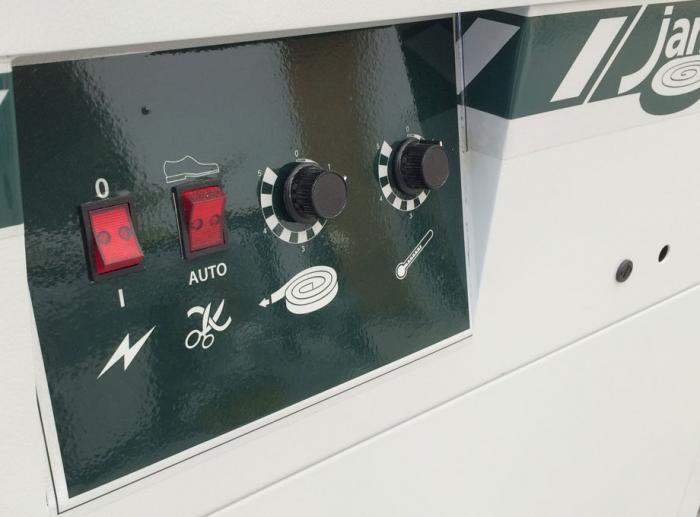

Simple controls at your fingertips
Temperature, feed speed, foot or automatic guillotine control - all at your fingertips.
| Total input power | 3.4kW single phase |
|---|---|
| Tape thickness | 0.4 - 3mm |
| Minimum workpiece length | 130mm |
| Air pressure | 7 bar |
| Feed speed | 0 - 5m/min, variable |
| Working temperature | Up to 460°C |
| Dimensions (W x D x H) | 750 x 250 x 590mm |
| Weight | 70kg |
Specifications are subject to change without notice.
VTJ Edgebander
|
P200 Edgebander
|
|
|---|---|---|
| Weight | 70kg | 210kg |
| Tape thickness | 0.4 - 3mm | 0.4 - 2mm |
| Feed speed | 0 - 5m/min, variable | 5.5m/min |
| Working temperature | Up to 460°C | Variable 20 - 500°C |
| Total input power | 3.4kW single phase | 1.2kW (1.6hp) |
| Air pressure | 7 bar | 6.5 bar |
