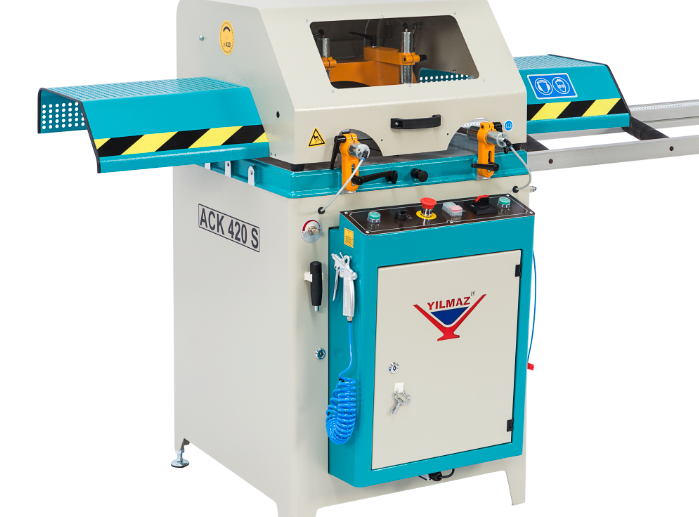

Constructed from high quality material and components the ACK420S is a robust machine capable of highly accurate cutting of aluminium profiles.
Due to the smart design of the ACK420S some common problems associated with drop saws have been eliminated. Offcuts being thrown by the blade are not a problem, because the clamps can be set very close to the blade allowing very short offcuts to be clamped. Clamps are pneumatic and pressure regulated, while blade feed is controlled via a hydro-pneumatic (air over oil) feed system, and is fully adjustable.
A sealed induction motor provides continuous high torque output.
Totally guarded and with two-hand push button operation, Yilmaz’s ACK420S complies with New Zealand Safety standards for mitre saws.
(Roller table shown is sold separately)
Make an enquiry about the Yilmaz ACK420S Upcut Saw

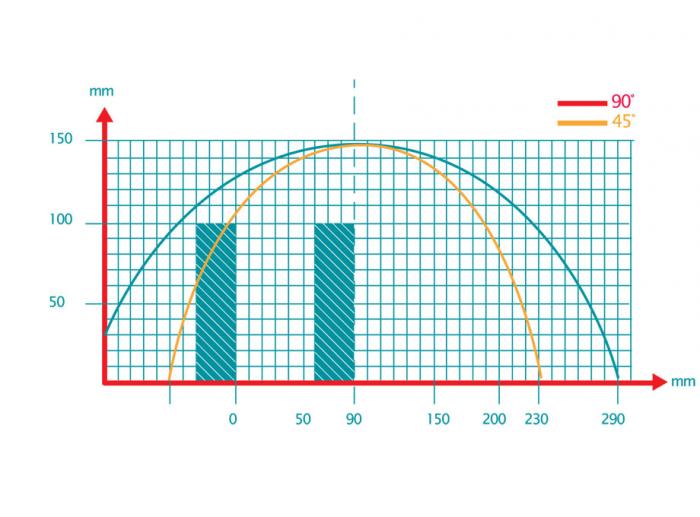

Capacity
- 420mm blade capacity with adjustable hydro-pneumatic feed
- Mitres L-R 60-0-45°
- Easy access blade change
- Movable back-fence for larger cutting capacity
- Protective hood with safety switch
- 2 pneumatic vertical clamps
- 2 horizontal clamps (optional)
- Air gun
- Pneumatic spray-mist blade lubrication
- Perfect for bundle/stack cutting
- German high quality TCT Aluminium saw blade included (420mm)
| Saw blade Ø | 420mm |
|---|---|
| Saw blade speed | 3000rpm |
| Motor | 2.2kW 3-phase |
| Air pressure | 6-8 bar |
| Dimensions (W x D x H) | 95 x 95 x 149cm |
| Bore Ø saw spindle | 30/32 mm |
| Air consumption | 34L/min |
| Weight | 210kg |
Specifications are subject to change without notice.
ACK420S Upcut Saw
|
ACK700S Upcut Saw
|
ACK550S Upcut Saw
|
|
|---|---|---|---|
| Motor | 2.2kW 3-phase | 4kW (5.5hp) 3 phase | 4kW (5.5hp) 3 phase |
| Saw blade Ø | 420mm | 700mm | 550mm |
| Saw blade speed | 3000rpm | 2000rpm | 2400rpm |
| Weight | 210kg | 500kg | 373kg |
| Air pressure | 6-8 bar | 6-8 bar | 6-8 bar |
| Air consumption | 34L/min | 180L/min | 160L/min |
| Bore Ø saw spindle | 30/32 mm | 38mm | 30mm |
Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:
- machine stands
- cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
- clamp and lubricant sprays to ensure you can process your materials securely and efficiently
- saw blades - we stock a variety of blades including specialist blades for aluminium
All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
