Size, performance and precision with proven Hammer technology.

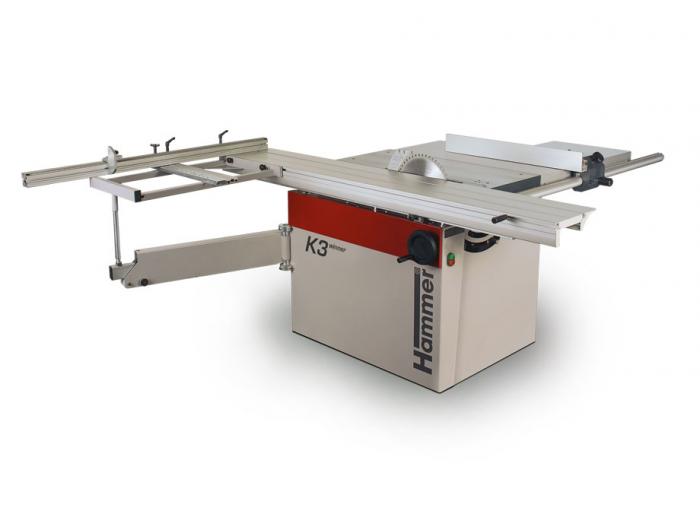

The K3 Winner, with the Comfort Package, is a format circular saw that boasts high-quality Hammer technology, unique ease of ­operation and innovative solutions that are obvious in every detail.

The Comfort package includes additional features such as the 2000 mm sliding table and 1100mm outrigger table with mitre index system that meet the high demands of professionals. Other features include preparation for grooving tooling and a cast iron guiding bar on the rip fence.

Naturally there are many other useful accessories available to fulfil your individual needs.

Please note machine images may show optional equipment.

Make an enquiry about the Hammer K3 Winner Comfort Panel Saw

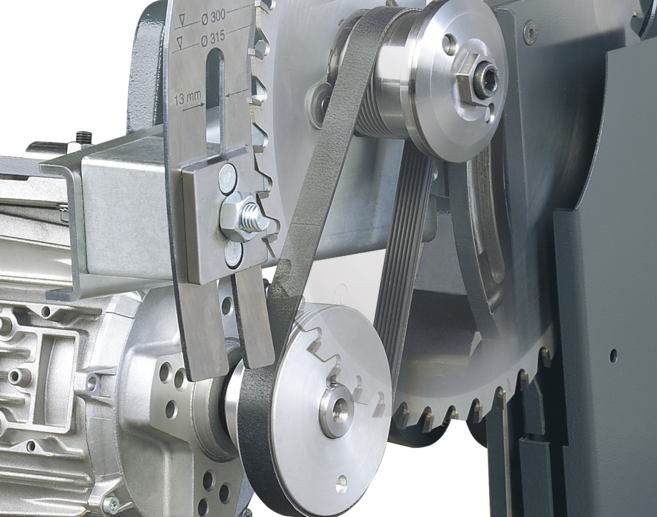

Optimal power transmission

The power transmission of the motor power to the saw arbour or moulder spindle is achieved using large dimensioned Poly-V belts and counter surface. The surface area which is increased through the V shape of the drive belt on the pulley increases the grip and ensures an almost perfect transmission of power from the motor to the saw arbour and moulder spindle.

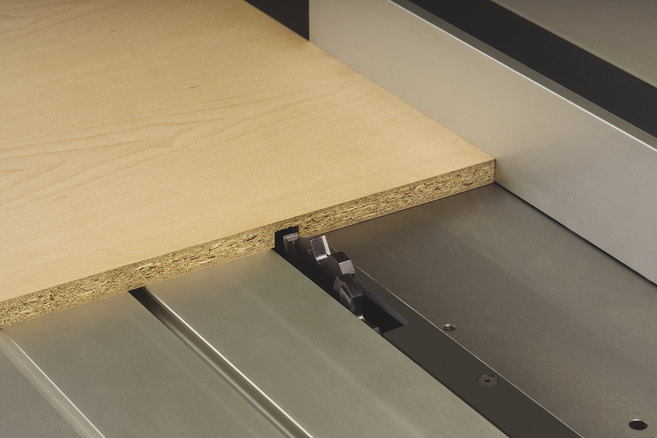

Grooving, slot and tenoning

Every hammer panel saw can be equipped with a preparation for the use of specialised dado tooling. The dado tool can be fitted to the saw arbour and makes it possible to make various width grooves, tenons and slots of between 8 and 19.5 mm in width.

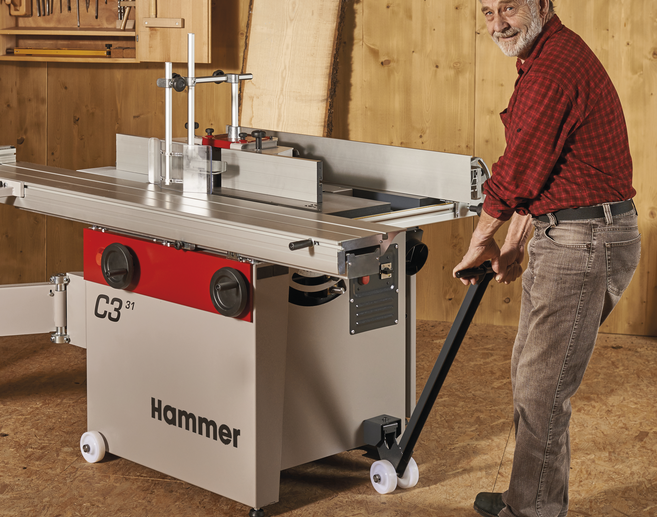

Minimal space requirement

Hammer woodworking machines are an absolute spatial wonder. The efficient machine design of a Hammer means that space can be found in even the smallest of workshops. As an option a rolling carriage can be fitted to every Hammer, offering mobility and freeing up additional space.




Crosscut fence length 1300mm
Max. saw blade Ø 315mm
Max. cutting height @ 90º 103mm
Rip capacity 1250mm
Saw blade speed 4800rpm
Sliding table length 2000mm
Working height 888mm
Motor 3kW (4hp) single phase
Weight 320kg

Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.

Specifications are subject to change without notice.

K3 Winner Comfort Panel Saw
K3 Winner Comfort Panel Saw
SA250STE Sliding Table Saw
SA250STE Sliding Table Saw
K500S Panel Saw
K500S Panel Saw
K3 Winner Panel Saw
K3 Winner Panel Saw
K3 Basic Panel Saw
K3 Basic Panel Saw
Motor 3kW (4hp) single phase 2.2kW (3hp) with 15amp plug 4kW (5.5hp) 3 phase or 3kW (4hp) single phase 3kW (4hp) single phase 3kW (4hp) single phase
Weight 320kg 230kg 600kg 280kg 240kg
Max. cutting height @ 90º 103mm 80mm 104mm 103mm 103mm
Saw blade speed 4800rpm 3000rpm 4800rpm 4800rpm 4800rpm
Rip capacity 1250mm 810mm 1250mm 800mm 700mm
