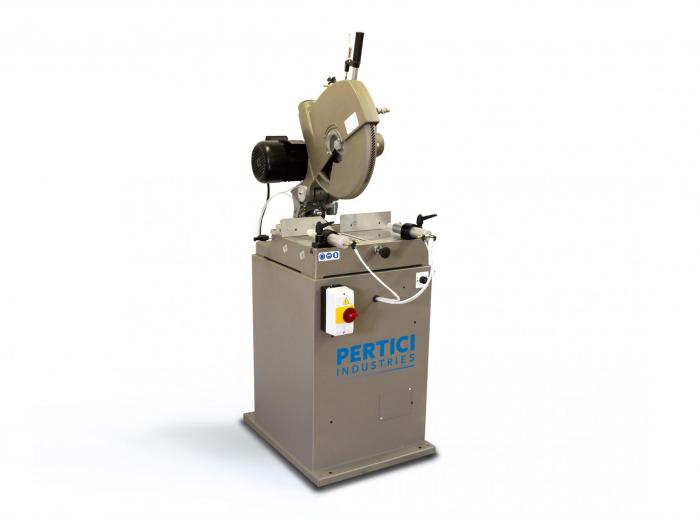

The 40 MP is a single-headed pendulum (Drop Saw) cut-off machine with descending blade ø 400mm.
The profile support surface rotates manually at an angle of +/-45°, the manual side tilt of the head goes from 0° to 45° outside.
40MP is equipped with 2 pairs of horizontal clamps for the correct clamping of the profile, minimal blade lubrication and mechanical protection of the cutting blade.
Safety Features:
- Electronic brake on motor
- Handle lock on saw head
- Pneumatic lock on clamp
- Fully guarded blade
Make an enquiry about the Pertici 40MP Compound Mitre Saw

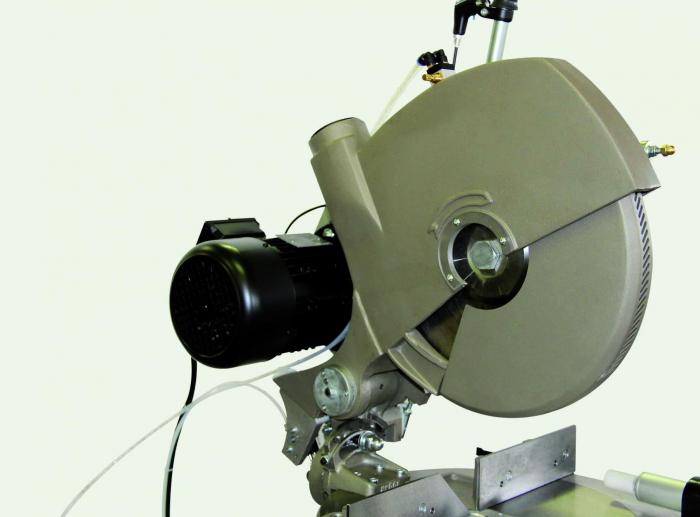

400 mm Blade
Equipped with an electronic braked motor

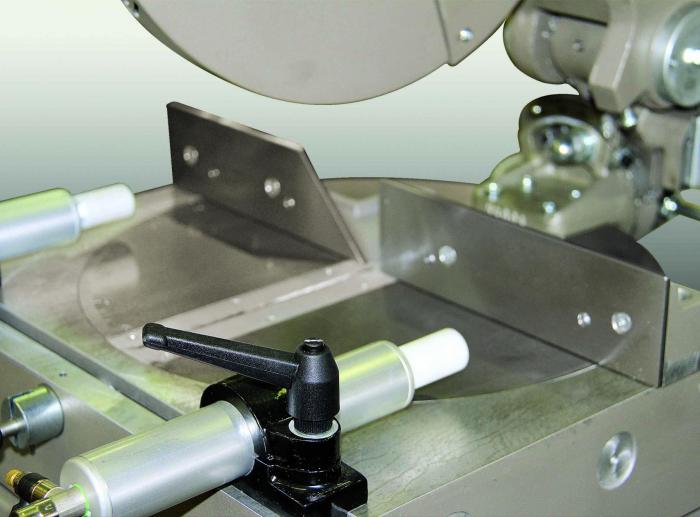

Horizontal clamps
Securely hold the work piece in place, improving accuracy and quality of cut.

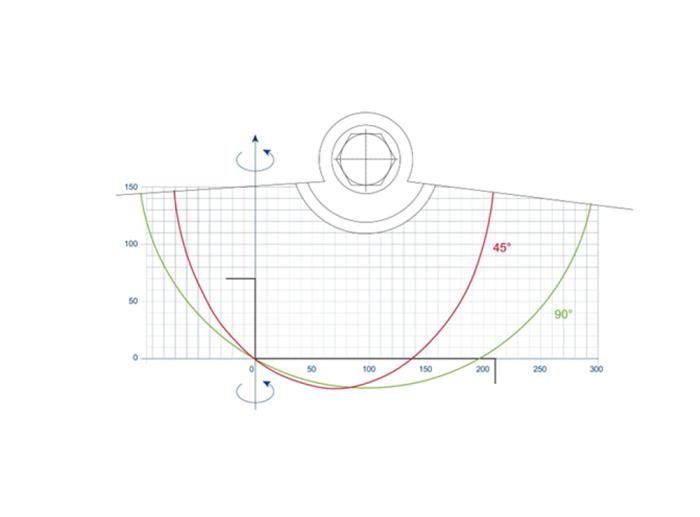

Mitre cutting capacity

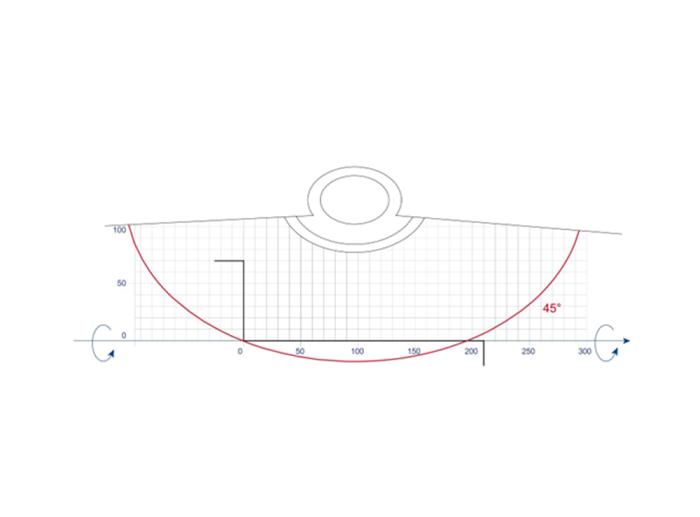

Compound cutting capacity
400mm Carbide saw blade
110mm H x 200mm W Cutting Capacity @90° Straight
110mm H x 140mm W Cutting Capacity @45° Mitre
70mm H x 200mm W Cutting Capacity @45° Bevel
2.2kW (3HP) 230V 1 Phase Motor
2 Pneumatic Horizontal Clamps
Spray Mist Blade Lubrication
400mm 108T Saw blade included
Machine Cabinet Stand
Air Duster Gun
| Motor | 2.2kW (3HP) 400V |
|---|---|
| Dimensions (W x D x H) | 95 x 230 x 170 cm |
| Weight | 120kg |
Specifications are subject to change without notice.
Pertici is a global leader in technology for the processing of aluminum and PVC extrusions
