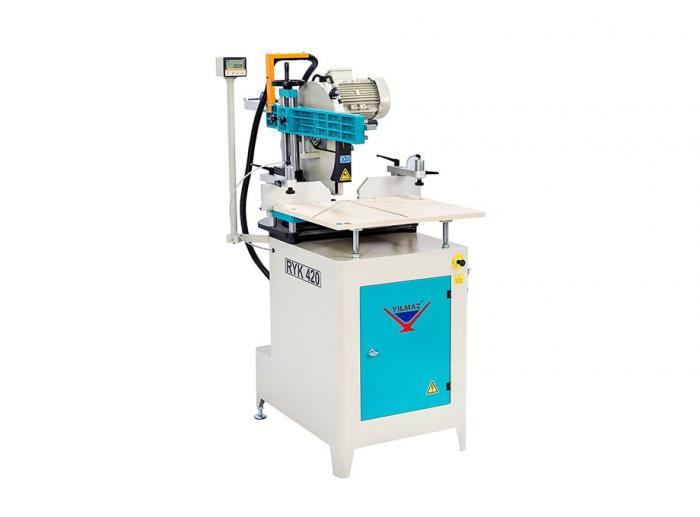

Not suitable for cutting aluminium, the RYK 420 Radial Arm Saw is designed for straight or angular cutting operations of large size materials made of PVC and timber.
Smooth movement and excellent sensitivity are provided through a gas spring, linear bearings and ergonomic handle. RYK 420 allows straight and angular cuttings by means of the pivoting and tilting head.
Key safety features:
- E-braked motor
- Hydraulic damper to restrict saw head climbing forward if the blade locks up on work piece
- Auto return to parked position of saw head with sprung loaded cable device
- Blade clocked behind fence when parked with an easy to activate release
- Blade is fully enclosed when in parked position
Make an enquiry about the Yilmaz RYK420 Radial Arm Saw
Pivoting range from 45° right to 60° left infinitely adjustable

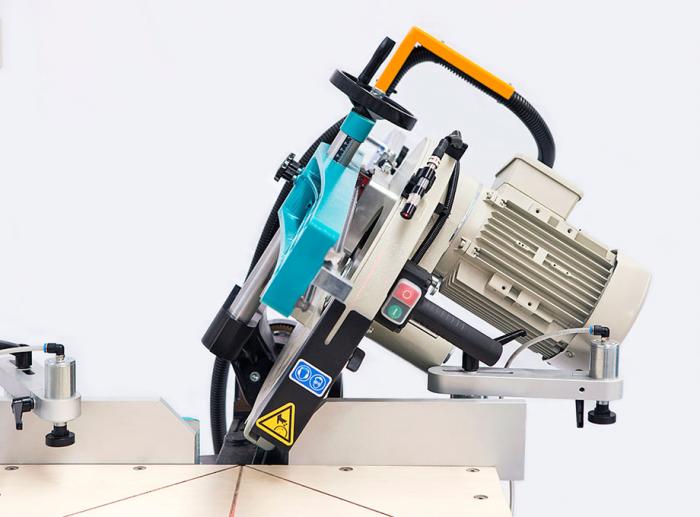

Tilting range from 90° to 45° left

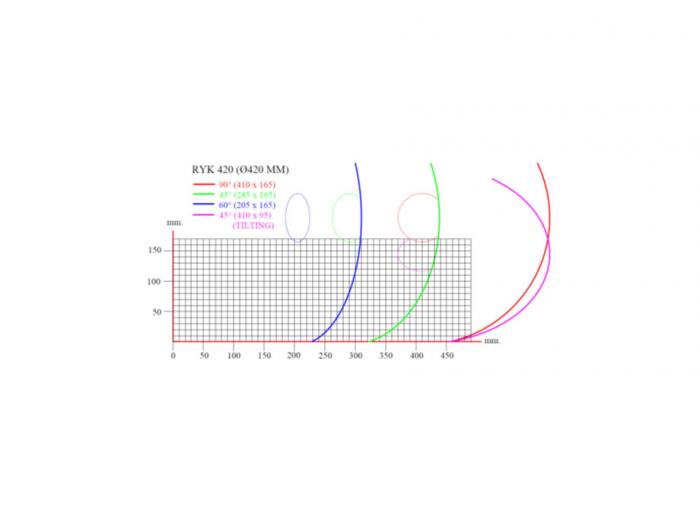

Cutting diagram
| Max. saw blade Ø | 420mm |
|---|---|
| Crosscut capacity | 400mm |
| Saw blade speed | 3000rpm |
| Motor | 3kW (4hp) 3 phase |
| Dimensions (W x D x H) | 75 x 112 x 155cm |
| Air consumption | 7L/min |
| Weight | 200kg |
- 2x pneumatic vertical clamps & extension pieces
- Robust mechanical construction makes for effortless adjustments
- Sawblade capacity of up to 420 mm diameter
- Location points at 15°, 22.5°, 30°, 45°, 60°, 90° both left and right
- Pivoting range from 45° right to 60° left infinitely adjustable
- Tilting range from 90° to 45° left
Specifications are subject to change without notice.
