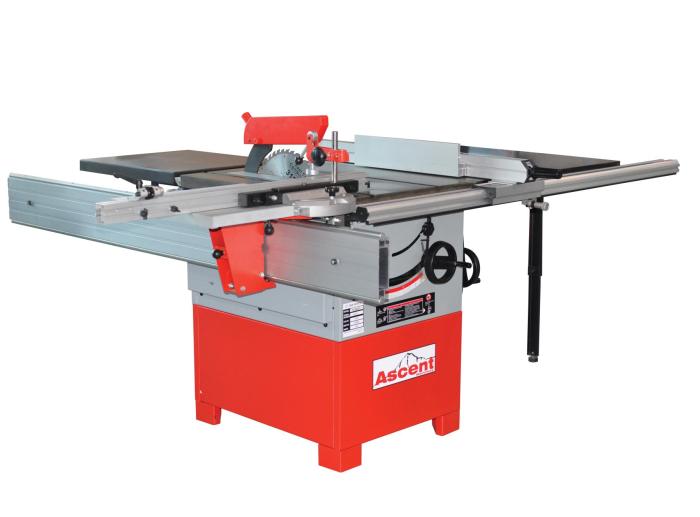

The SA300ST Sliding Table Saw from Ascent Machinery.  A powerful 12", sturdy sawbench with a sliding table that offers excellent value for money.



Some assembly required.



$3,739.13 ex GST $4,300.00 inc GST Make an enquiry

Make an enquiry about the Ascent Machinery SA300ST Sliding Table Saw

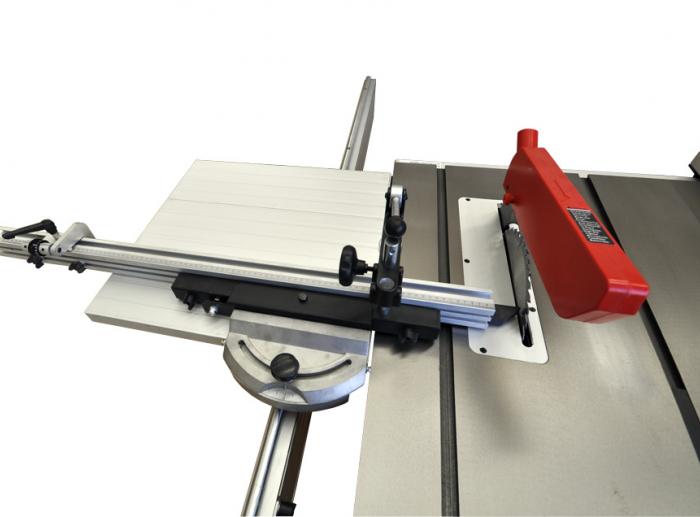

Anodised sliding table

Large ribbed anodised aluminium sliding table running on upper and lower steel bars spread widely for stability. Solid aluminium crosscut fence with eccentric clamp; swivels +/-45°.

Note that the saw guard with dust take-off rises, falls and tilts with the riving knife, meeting NZ safety rules.

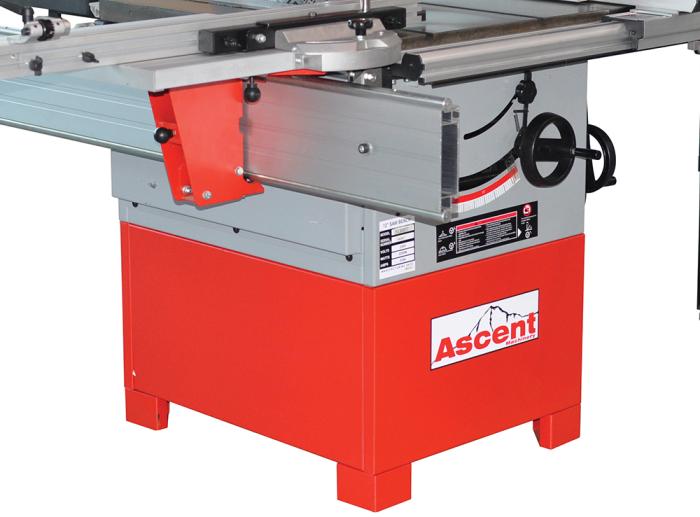

Full steel bracing

The full steel base braces much better than the splayed leg system.

Dust take-offs from base and hood - and internally ducted for efficient dust removal. Open toe space enables easy sweeping underneath.

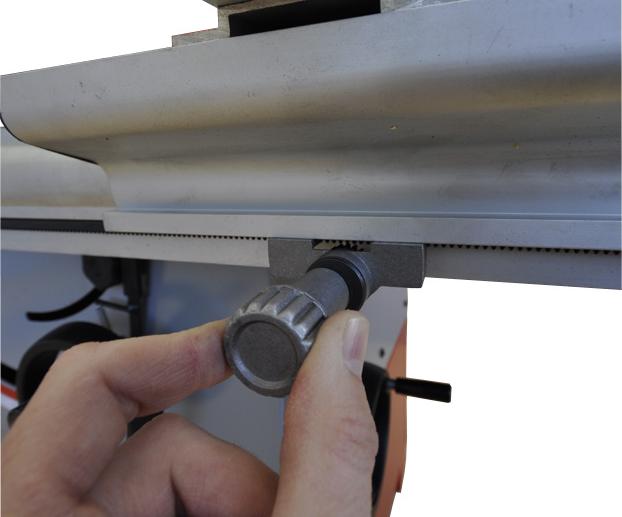

Precision where you need it

Precision rip fence setting by rack & pinion. This is included but you don't have to fit it. Some people prefer to set the fence by hand.

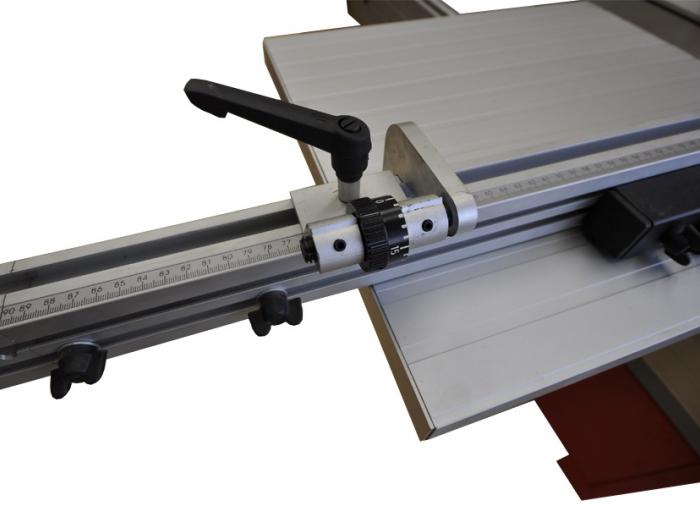

Crosscut fence

Crosscut fence extends to 1.5m. Clear scale for easy reading. Solid steel flip-stop with micro-adjustment.

  • Heavy cast iron table & saw trunnions to absorb vibration
  • Big table surface for easy and safe working
  • Mitre slide included for small parts, T slots on both sides
  • Anodised aluminium self aligning rip fence with fast double clamping
  • Precision rip fence setting by rack & pinion (included but not fi tted in main photo)
  • Generous aluminium sliding table 350 x 500 with eccentric hold down clamp
  • Heavy crosscut fence with clear scale telescopesto 1.5m and swivels +/- 45
  • Strong flip stop with micro adjustment
  • Powerful 2.2kW (3HP) motor for heavy rips
  • TCT sawblade included
Saw blade Ø 315mm x 30mm bore
Saw blade speed 3500rpm
Table size 1480mm wide x 800mm deep
Motor 2.2kW (3hp) with 15amp plug
Weight 290kg

Specifications are subject to change without notice.

SA300ST Sliding Table Saw
SA300ST Sliding Table Saw
SA250 Sawbench
SA250 Sawbench
SA250ST Sliding Table Saw
SA250ST Sliding Table Saw
SA250STE Sliding Table Saw
SA250STE Sliding Table Saw
SA300 Sawbench
SA300 Sawbench
Motor 2.2kW (3hp) with 15amp plug 2.2kW (3hp) with 15amp plug 2.2kW (3hp) with 15amp plug 2.2kW (3hp) with 15amp plug 2.2kW (3hp) - with 15amp plug
Table size 1480mm wide x 800mm deep 1175 x 800mm 900mm wide x 800mm deep 650mm wide x 800mm deep 1480 x 800mm
Saw blade Ø 315mm x 30mm bore 254mm (10") with 25.4mm (1") bore 254mm (10") x 25.4mm (1") bore 254mm (10") x 25.4mm (1") bore 315mm (12") with 30mm bore
Weight 290kg 190kg 200kg 230kg 235kg
