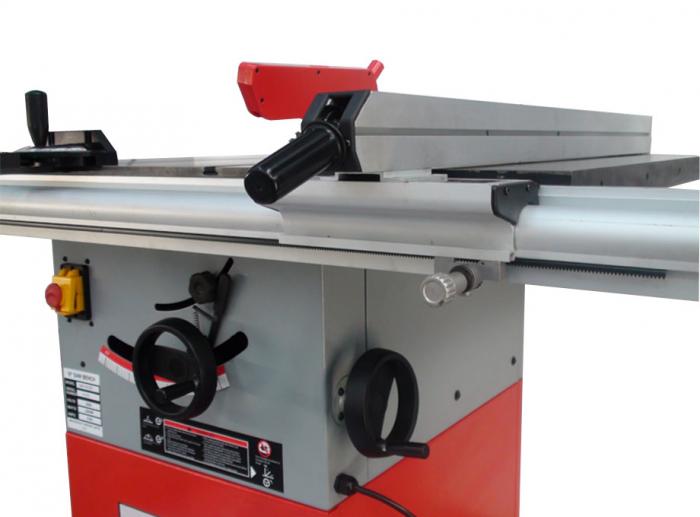

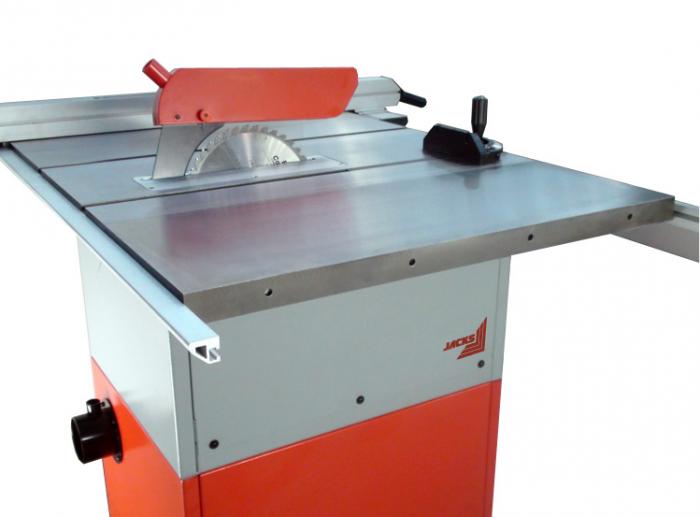

A powerful, sturdy 10" sawbench that offers excellent value for money.
- Heavy cast iron table & saw trunnions to absorb vibration
- Big table surface for easy and safe working
- Full cabinet stand with toe space - excellent bracing & easy to keep clean
- Mitre slide included for small parts. T-slots on both sides
- Anodised aluminium self-aligning rip fence with fast double clamping
- Precision rip fence setting by rack & pinion
- Powerful 3hp motor for heavy rips
- TCT saw blade included
Some assembly required.
Make an enquiry about the Ascent Machinery SA250 Sawbench
Cast iron mitre slide
Hood guard with 30mm dust take-off, rises/falls/tilts with riving knife to meet NZ safety standard.
- Heavy alloy rear rail for rip fence support and clamping
- 100mm dust take-off with branch to hood guard
- Unusually, the rip fence can be positioned on both sides. Useful as an adjustable stop for mitre slide work
- Can also be good in a small shop where space is tight

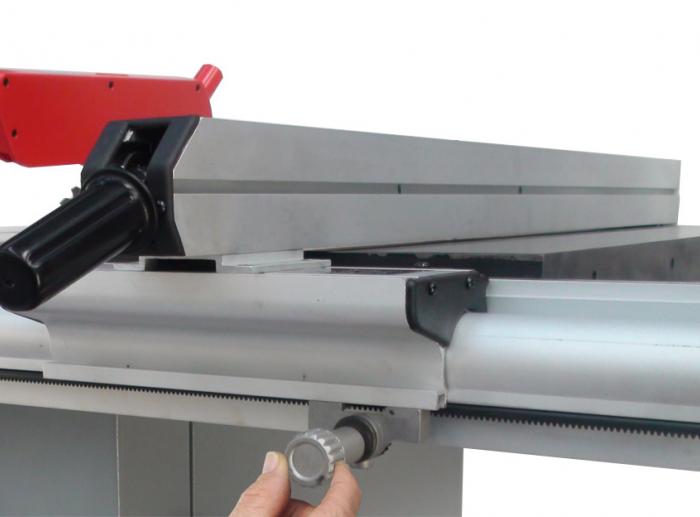

Precision where you need it
Precision rip fence setting by rack & pinion.
This is included but you don't have to fit it. Some people prefer to set the fence by hand.
Heavy duty for your workshop
The full steel base braces much better than the splayed leg system.
Dust take-offs from base and hood mean any dust escaping falls to the floor and can be removed through the toe space.
| Saw blade Ø | 254mm (10") with 25.4mm (1") bore |
|---|---|
| Max. cutting height @ 90º | 75mm |
| Max. cutting height @ 45º | 60mm |
| Rip capacity | 630mm |
| Table size | 1175 x 800mm |
| Motor | 2.2kW (3hp) with 15amp plug |
| Weight | 190kg |
Specifications are subject to change without notice.
If you're looking for a 250mm/10" saw, below are the specifications for our most popular models.
SA250 Sawbench
|
SA250ST Sliding Table Saw
|
SA250STE Sliding Table Saw
|
|
|---|---|---|---|
| Motor | 2.2kW (3hp) with 15amp plug | 2.2kW (3hp) with 15amp plug | 2.2kW (3hp) with 15amp plug |
| Table size | 1175 x 800mm | 900mm wide x 800mm deep | 650mm wide x 800mm deep |
| Saw blade Ø | 254mm (10") with 25.4mm (1") bore | 254mm (10") x 25.4mm (1") bore | 254mm (10") x 25.4mm (1") bore |
| Max. cutting height @ 90º | 75mm | 75mm | 80mm |
| Max. cutting height @ 45º | 60mm | 60mm | 60mm |
| Rip capacity | 630mm | 630mm | 810mm |
| Weight | 190kg | 200kg | 230kg |
Download the SA50 brochure >>
Ascent Machinery is available exclusively from Jacks.
Our warranty policy is second to none, and applies to every machine we sell. We're so proud of it you can read it here on our website. We strongly recommend you compare our policy with others before you buy elsewhere.
Ascent Machinery is exclusive to Jacks
