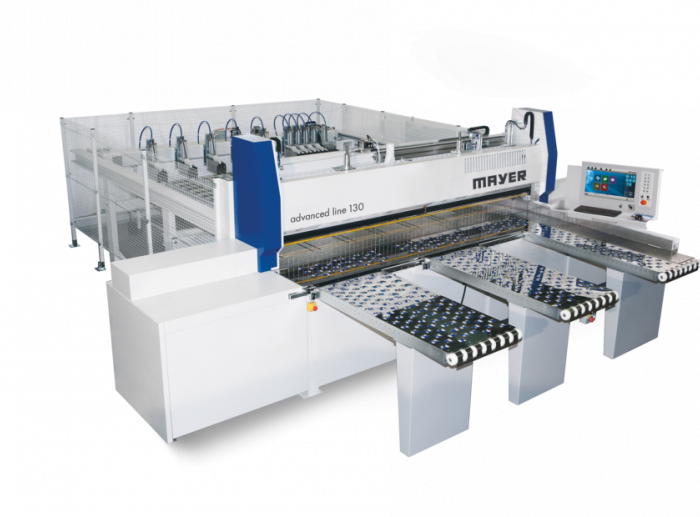

Mayer Advanced Line 130

The experienced – Tailored exactly to customer needs.

Each market and customer has his own special demands when it comes to panel cutting. According to these requirements, the advanced line 130 combines the extraordinary with the useful. Thanks to the solid construction and the powerful saw carriage, cutting forces are removed vibration free period. With the efficient saw motor, the advanced line 130 cuts accurately and with high quality results any aluminium, non-ferrous metals, and plastics up to 130 mm.

Make an enquiry

Make an enquiry about the Mayer Advanced Line 130

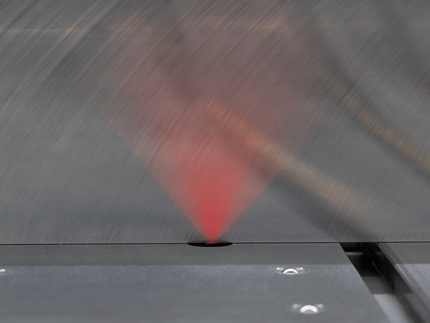

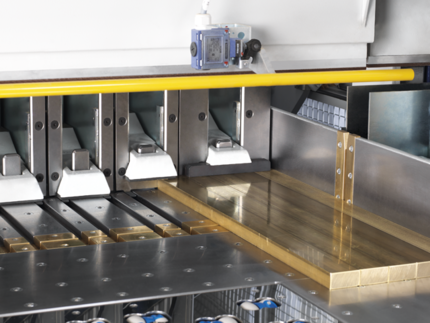

Double pressure beam with laser measurement

The split pressure beam facilitates minimum trimming cuts (chip or scratch cuts) regardless of the programmed board dimension. This guarantees optimal material utilisation with perfect dust extraction

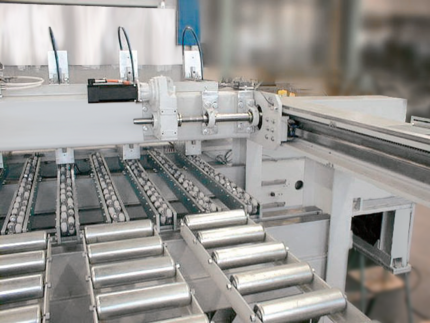

Universal roller tables

Power-saving transportation of heavy panels for highly productive one-man operation is possible thanks to the universal roller tables that are moved on linear guides

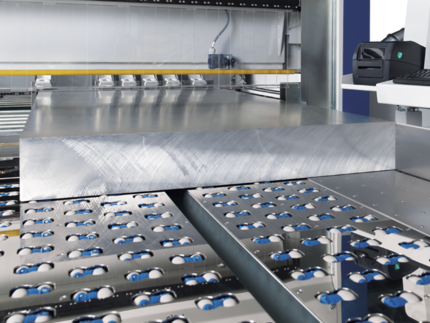

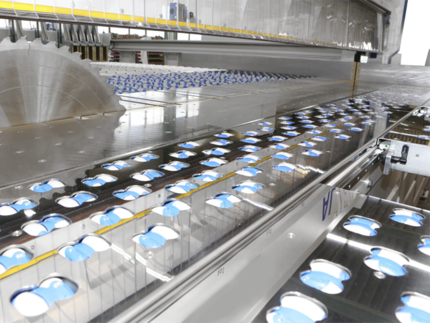

Pneumatically liftable table segments

Thanks to the pneumatic liftable table segments, heavy panels can be moved easily and without damage

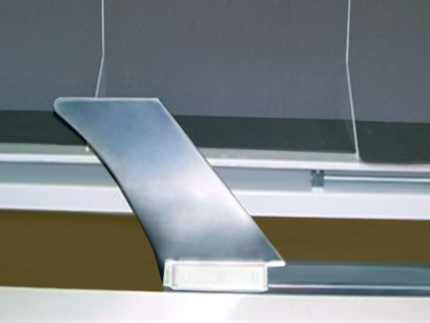

Patented riving knife for panels with high material tensions

The riving knife for panels with high material tensions is mounted at the end of the saw carriage and can be mechanically connected and disconnected

Dual Servo Drive – the high-precision solution

Two independent servomotors with separate measuring systems and programmable correction curves guarantee absolute precision for all travel distances

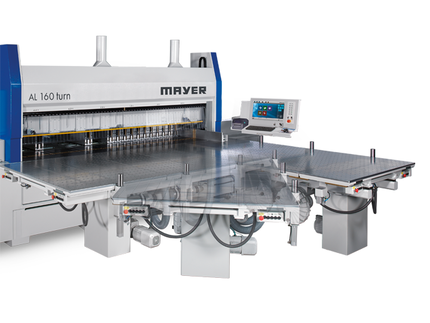

Front turntable

Quickly and easily change the position of the front desk by 90 degrees and thus have a space-saving or large-sized supporting surface

Tension clamps

Heavy and robust tension clamps

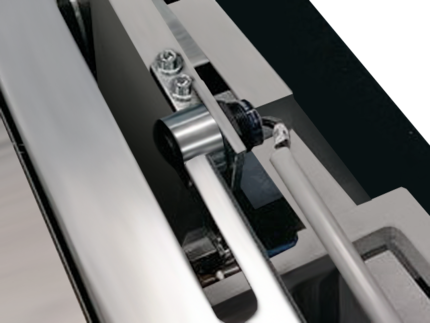

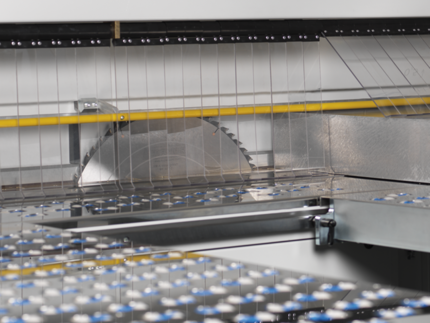

Saw blade deviation sensor

An accurate sensor for saw blade deviation ensures material-saving cuts and also reduces the costs for saw blades.

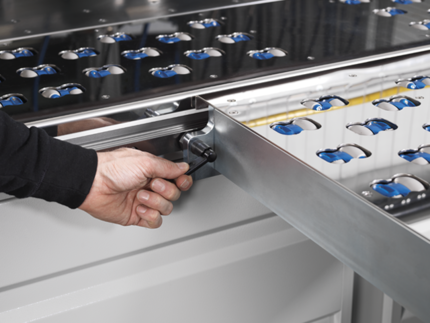

Additional moveable tables

Additional tables can be moved easily and precisely on the ground linear guides

Automatic length measurement system

Automatic length measurement system for trimming cuts.

Ergonomically arranged controls

Ergonomically arranged controls on the side table

Saw blade Ø	500mm
Maximum cutting height	142mm
Cutting capacity	3200mm, 4200mm
Motor	24 kW
Feed speed	0.2–60 m/min

Specifications are subject to change without notice.

	Advanced Line 130	Advanced Line 100	Advanced Line 160	Advanced Line 200
Motor	24 kW	18 - 24 kW	35 kW	43 kW
Saw blade Ø	500mm	450mm	600mm	670mm
Cutting capacity	3200mm, 4200mm	3200mm, 4200mm	3200mm, 4200mm (& custom cutting lengths)	3200mm, 4200mm (& custom cutting lengths)
Feed speed	0.2–60 m/min	0,2–60 m/min	0.2–60 m/min	0.2–60 m/min
Maximum cutting height	142mm	125mm	180mm	215mm
