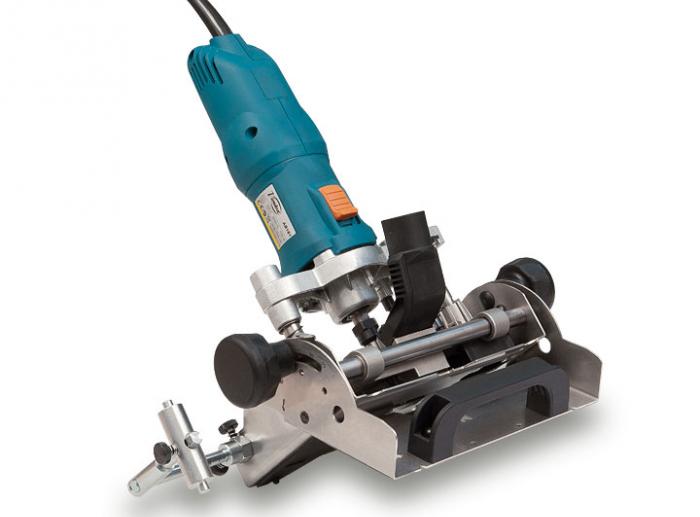

The Virutex AB181N is especially designed for fast and easy trimming of slots to place the OVVO® automatic connectors for assembling panels.
- Powerful 1000W motor, no-load speed 14,000-27,000/min
- Positioning of the machine by mean of retractable stoppers and visual references.No need to take measurements
- Adjustable fence for trimming angles. Automatic stoppers for 0°, 45° and 90°
- Precise adjustment of the panel thickness
- Precise adjustment of the trimming depth
- Non-slip double base with non-scratch protection
- Dust collector nozzle for connection to an external dust extractor
New OVVO® assembling system
The OVVO® connection system saves assembly time and allows the transport of furniture in flat-pack form, saving time and volume. There is no requirement to use tools, screws or glue to assemble the pieces. The OVVO® system is a solution to join two pieces easily and quickly when compared to traditional systems and creates invisible join with an internal automatic clamp between the two pieces.
Make an enquiry about the Virutex AB181 OVVO Slot Trimmer
Adjustable angle base

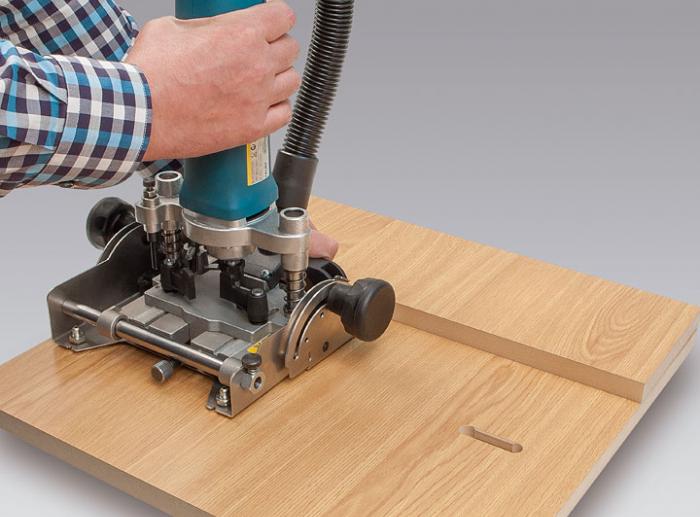

Designed for the quick and easy trimming of slots for the OVVO connection system. Adjustable base for slotting between 0 - 90°.

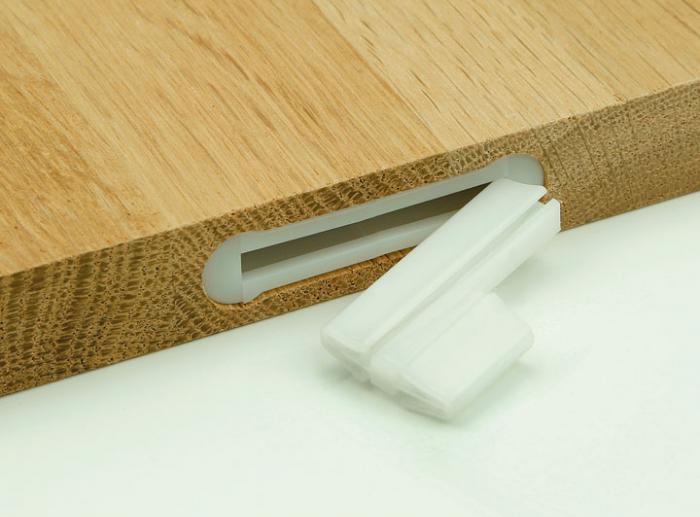

OVVO Connection system
The OVVO system saves assembly time and does not require any tools, screws or glue. Once connected it provides an invisible join between the two panels.
Perfect quick connections

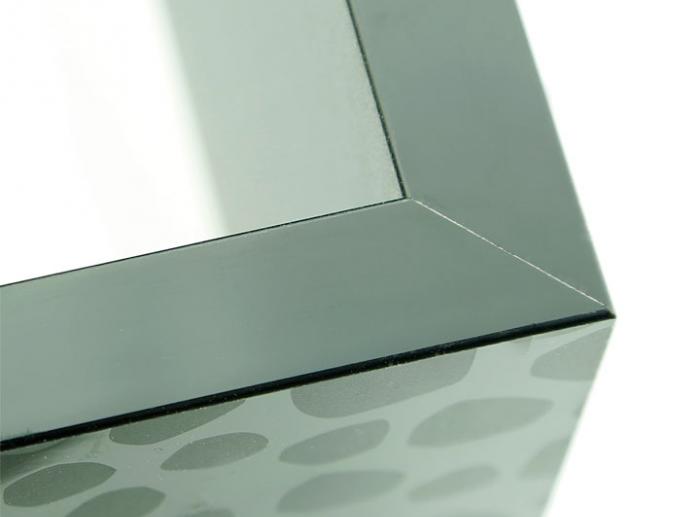

Provides an invisible join between panels with quick assembly.
| Maximum cutting depth | 60mm (trimming) |
|---|---|
| Motor | 1kW (1.3hp) |
| Chuck collet | 8mm |
| Weight | 3.6kg |
| Work area on door front | 80 x 300 mm |
|---|---|
| Work area on door edge | 55 x 300 mm |
| Maximum opening of clamps | 190 mm |
| Minimum opening of clamps | 13 mm |
Specifications are subject to change without notice.
Virutex has a wide range of machinery and accessories that are available via Jacks.
