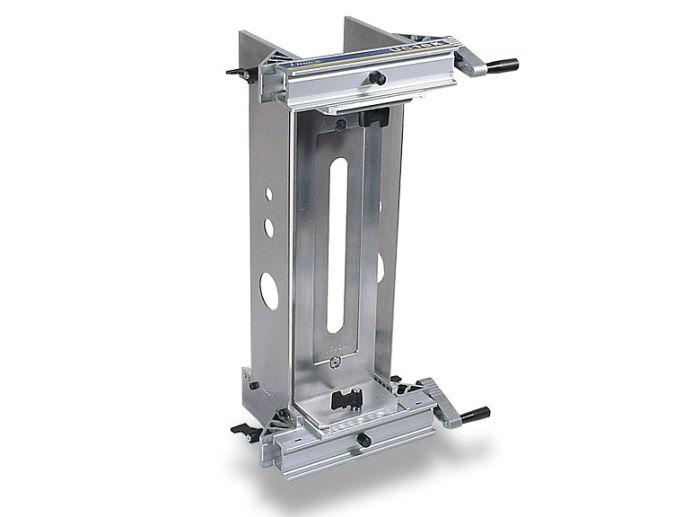

The UC16K lock mortise template jig is designed for frontal and lateral recesses for any kind of lock on doors and frames. It's exclusive attachment system by means of adjustable clamp vices enable the user to mortise doors that have already been hung without damaging the surface with a secure and reliable grip.
Make an enquiry about the Virutex UC16K Lock Mortise Template Holder

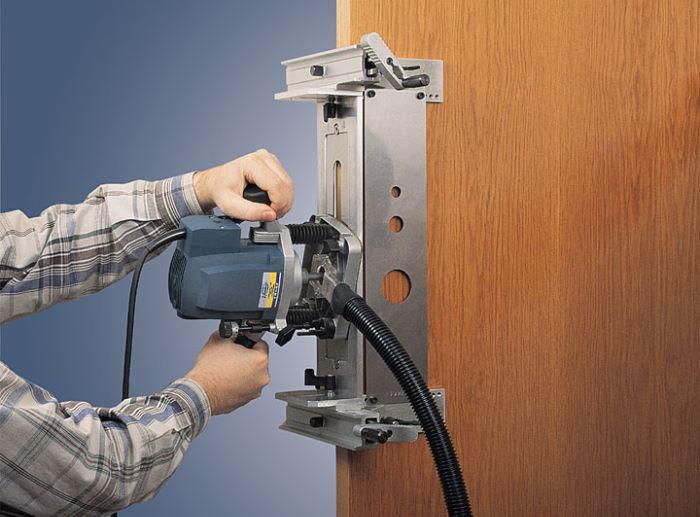

Strong and reliable vice clamps
The strong vice clamps ensure no slipping during working and peace of mind.

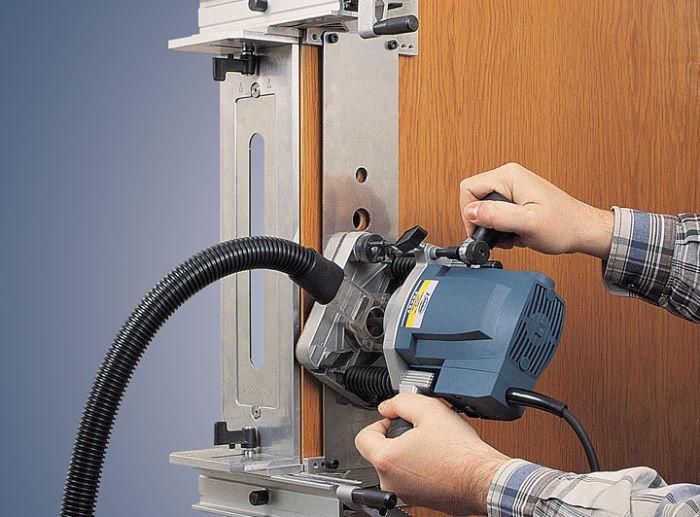

Door front and edge processing
The ability to hold templates on both the door front and edge processing makes set-up times minimal and always aligned with each other.

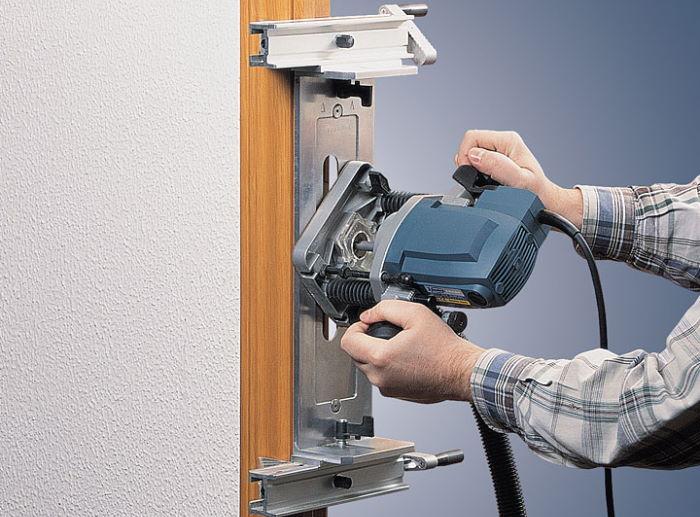

Door frames
The UC16K is able to work on door frames and provide exceptional results.
Example of work

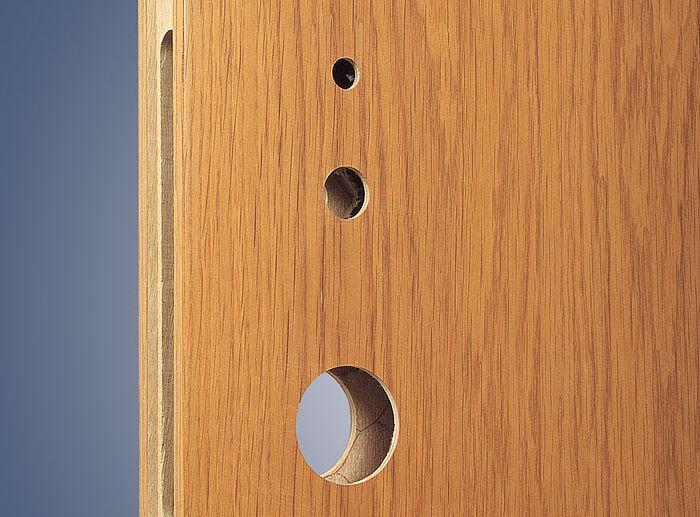

Making side holes for placing of the knob, cylinder and other mechanisms.
Example of work

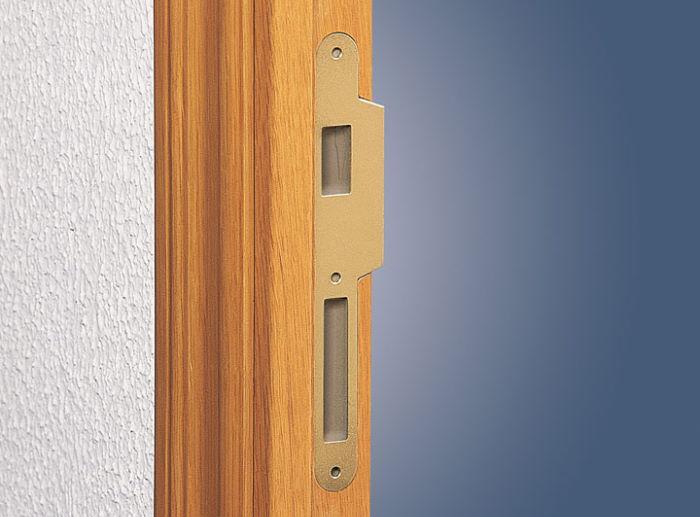

Making recesses for the box-staple or lock box and the recesses for the latch and lever.
Example of work

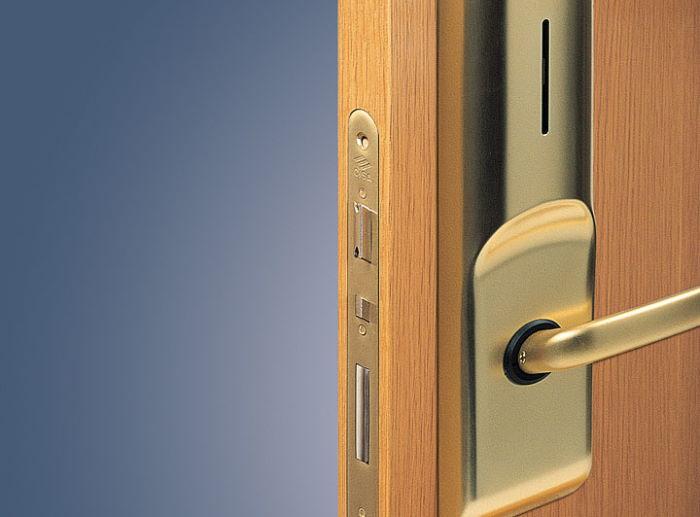

Special lock systems such as magnetic card locks, anti-panic locks and other special kinds of locks can be processed with the UC16K.
| Maximum trimming depth | 60 mm |
|---|---|
| Work area on door front | 80 x 300 mm |
| Work area on door edge | 55 x 300 mm |
| Maximum opening of clamps | 190 mm |
| Minimum opening of clamps | 13 mm |
| Weight | 6 kg |
Specifications are subject to change without notice.
