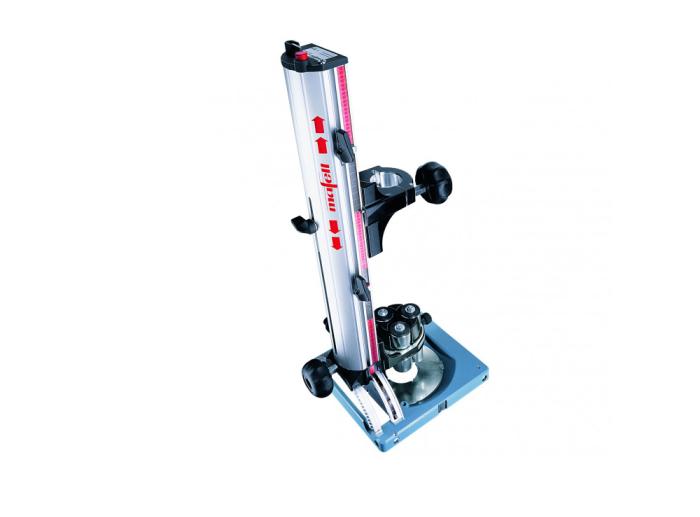

Mafell's new line of drilling stations are brilliantly engineered and constructed with the highest quality materials for a superior drilling experience. Using a lightweight but rigid single aluminum column and continually adjustable iris-like guide rollers, these drill guides offer unprecedented accuracy.
The "S" versions can be precisely set to +/- 45° and an innovative template accessory system enables the user to produce highly accurate series of patterned holes. Notches in the base plate enable easy alignment to a marked location and a parallel fence is available for end grain drilling or to reference drill from the edge of a timber.
Mafell drill stands include top and bottom stops, as well as an adjustable tensioning cable which effortlessly returns the drill to its starting position.
Make an enquiry about the Mafell Mafell BST460S Drilling Station

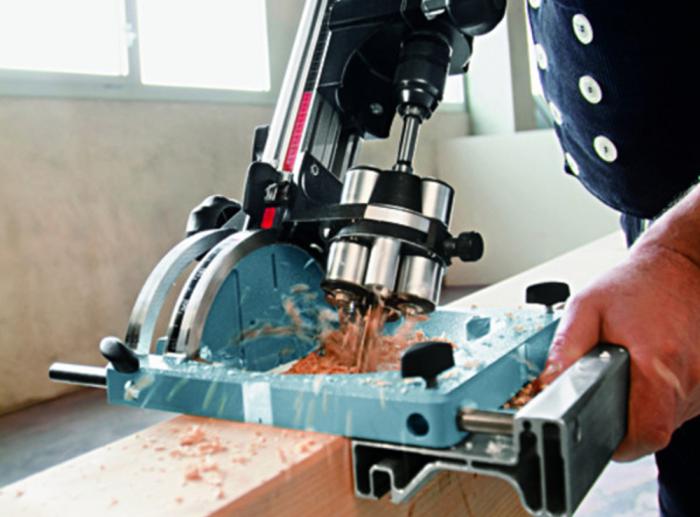

S Models can be set to +/- 45°

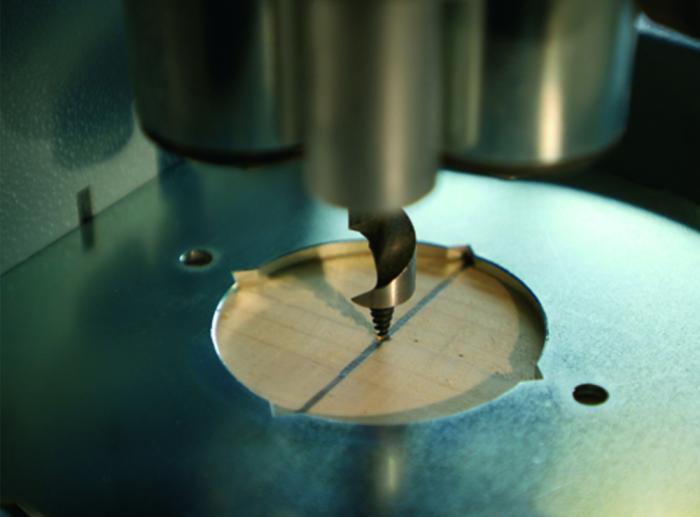

For series drilling and hole patterns, the insertion plate can be replaced by a copying insert. ideal when working with drilling templates
Adjustable Drill Guide
The continuously adjustable drill guide, with six locating elements, enables the drilling station to achieve unprecedented accuracy. Notches to facilitate marking enable you to position the drill with great accuracy. even when working at an angle, the drill tip always serves as the pivot axis.
| Maximum tool Ø | 0° 130mm 45° 100mm |
|---|---|
| Drilling depth | D:265mm L:460mm |
| Weight | 5 kg |
| Tilt range | +/- 45° |
Specifications are subject to change without notice.
Mafell AG manufactures high-end woodworking power tools specialised for carpentry, founded in 1899.
