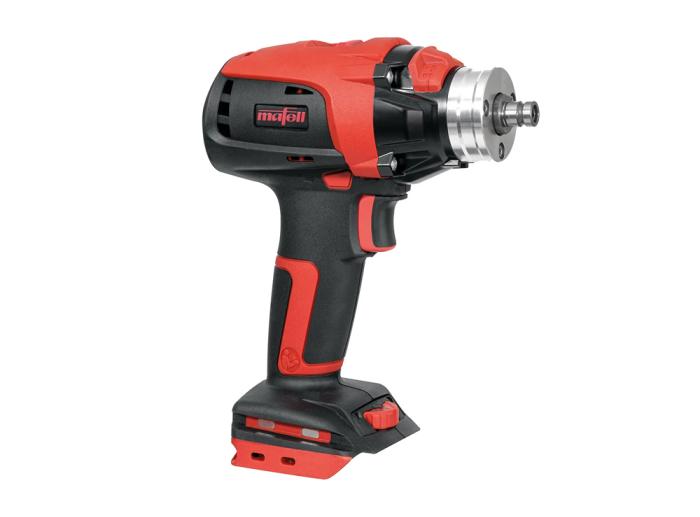

The all new generation cordless Impact drill driver ASB 18 from Mafell
- Drilling
- Driving
- Percussion drilling
Capable in dealing with the toughest challenges, the new-generation A 18 and ASB 18 has an especially rugged specification and extra power. addition of the Impact drill function makes the ASB 18 a genuine all-rounder. By applying the MAFELL ErgoBalance design principle, ease of use and fatigue-free operation is priotised.
*Battery is not included
Delivery specification:
- 1 Quick-release chuck A-SBF 13; Ref. No. 206772
- 1 Quick-release bit holder A-SBH; Ref. No. 206766
- 1 Belt clip
- 1 Auxiliary handle
- Transport and storage box T-MAX
Make an enquiry about the Mafell ASB 18 Cordless Impact Drill Driver PURE in T-MAX
Powerful impact drill functionality

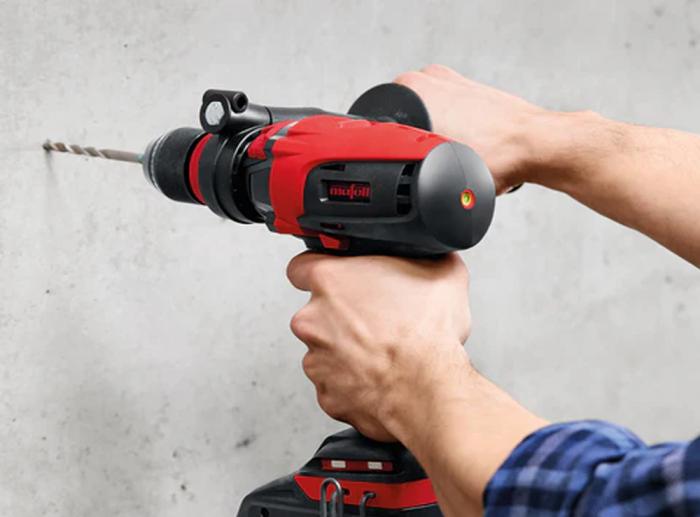

Delivers excellent results when drilling holes in masonry
Spirit levels
Two spirit levels clearly indicate the 90° angle when driving screws and drilling, horizontally and vertically
Anti-kickback
The electronic anti-kickback function provides extra safety by actively shutting down the motor and protecting the wrist against sudden twisting
Its impact drill function makes the ASB 18 a genuine all-rounder
- In difficult situations the impulse mode delivers a critical boost, e.g. for releasing immovable screws or controlling the first few turns when drilling into smooth surfaces.
- With 4 magnetic bit holders on both sides of the battery holder, the desired bit is always to hand.
- Bright LED lamps with an afterglow effect illuminate a large working area.
- Bits and push-fit accessories are inserted directly in the ¼” drive.
- 43 mm diameter clamping collar fits all MAFELL BST drilling stations.
- To overcome the toughest challenges, we have given the new-generation A 18 an especially rugged specification and extra power.
| Weight | 1.3kg |
|---|---|
| Voltage rating | 18V |
Technical data:
| Collar diameter | 43 mm |
| Chuck capacity | 13 mm |
| Max. drilling diameter in wood / steel | 68 / 13 mm |
| Torque soft / hard | 65 / 130 Nm |
| Impulse torque (soft) | 65 Nm |
| 1st speed range | 0 - 560 1/min |
| 2nd speed range | 0 - 1960 1/min |
| Dimensions (L x W x H) | 163 x 79 x 201 mm |
| Nominal voltage | 18 V |
| Impact rate | 38000 1/min |
| Torque settings | 10 + 1 |
| Vibration (measured in metal/reinforced concrete) < | 2,5/15,5 m/s^2 |
| Noise level dB(A) | 92 |
| Sound power level (LwA) dB(A) | 103 |
| Weight | 1,3 kg |
Specifications are subject to change without notice.
