Thanks to the unique tilting system, a cutting depth of 42 mm (including rail) is always available in the angle range from 0° to 45°.
The machine can be removed from the cross-cut track at the single press of a button, allowing its use for the full range of applications offered by the K55cc.
The rubberized underside ensures a good grip on the work and avoids damage to the surface.
With their low weight and cutting depths of up to 52 mm at 0° on the track, MAFELL’s new, powerful cross-cutting systems are making a big impact when it comes to interior work, for example, Once the cut has been executed, the saw automatically returns to the starting position. The maximum cutting length, exploiting the full cutting depth, is 407 mm.
It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.
Make an enquiry about the Mafell KSS 50cc Cross-Cutting System
One-stop solution
With the cross-cutting system, the machine is permanently attached to the guide track.
Precise angles

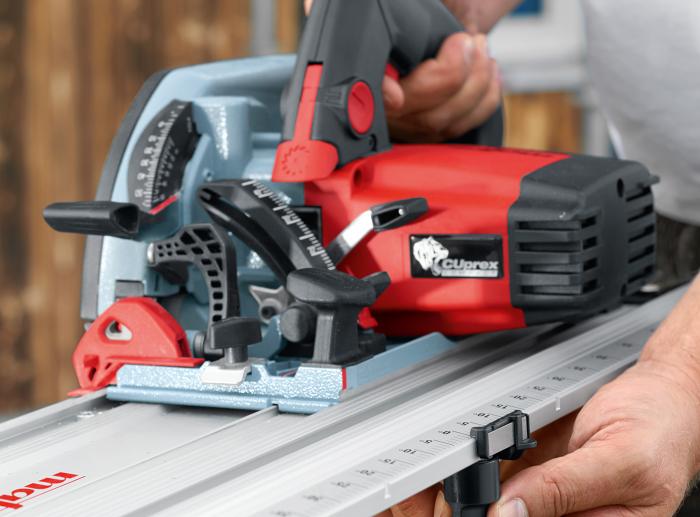

The highly graduated scale permits very precise angle setting.
Angle cuts from + 60° to - 60°

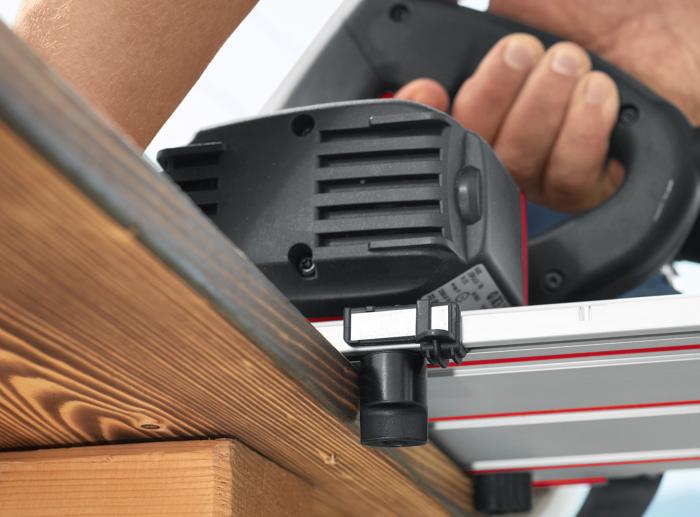

The fixed and adjustable stops on the underside of the rail allow the system to be used for angle cuts from + 60° to - 60°
- Cross cuts with guide
- Rip cuts and cross-cutting
- Plunge cuts and recesses
- Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials
The saw is compatible with the MAFELL special accessories for the corresponding mains powered models (e.g. saw blades).
The cross-cutting system with the latest 18 V lithium-ion technology offers unprecedented flexibility and unrestricted use with full freedom from the mains power supply.
| Max. cutting height @ 90º | 58mm (52mm with guide track) |
|---|---|
| Maximum cutting height | 48mm (42mm with guide track) @ 45° |
| Motor | 1.3kW (1.74hp) |
| Weight | 5.7kg with guide rail |
| Voltage rating | 18V |
| Tilt range | 0 to 45° |
| Cutting length | 407mm |
|---|---|
| Angle cuts | -60 – +60 ° |
| Nominal No. of strokes – no load | 5700 1/min |
Specifications are subject to change without notice.
Mafell AG manufactures high-end woodworking power tools specialised for carpentry, founded in 1899.
