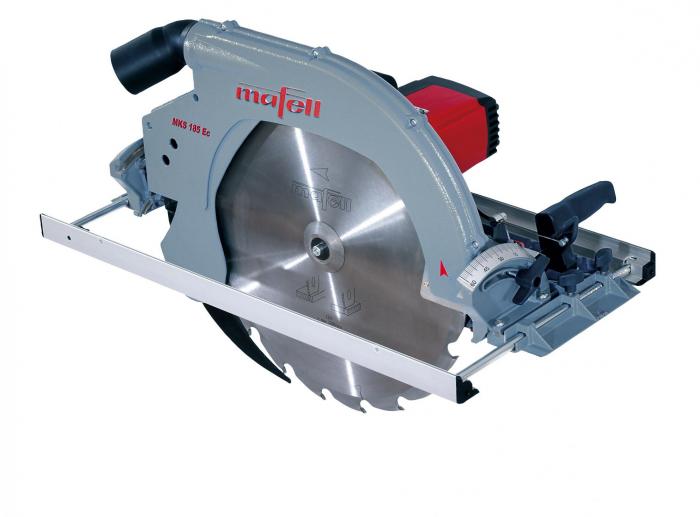

The Mafell MKS 185Ec carpenter's portable circular saw uses ultra-modern die-cast magnesium alloys to achieve an extraordinary weight/performance ratio. Weighing only 16.1kg, the MKS 185Ec accurately and powerfully makes 185mm cuts like no other saws in its class.
In a class of its own: heavy-duty 3000 Watt (3.8 hp) motor for extreme 185 mm (7 5/16 in.) cutting performance.
The saw´s handling and behavior are refined by smooth starting, constant speeds under load, speed reduction and overload protection.
The easy-to-use stop system, the low noise emission and the remote-controlled retractable knife guard make your work much easier.
The very smooth-running height adjustment with its clearly legible scale and an effective brake also ensure perfect cutting results and optimum operator safety.
Make an enquiry about the Mafell MKS 185Ec Portable Circular Carpentry Saw

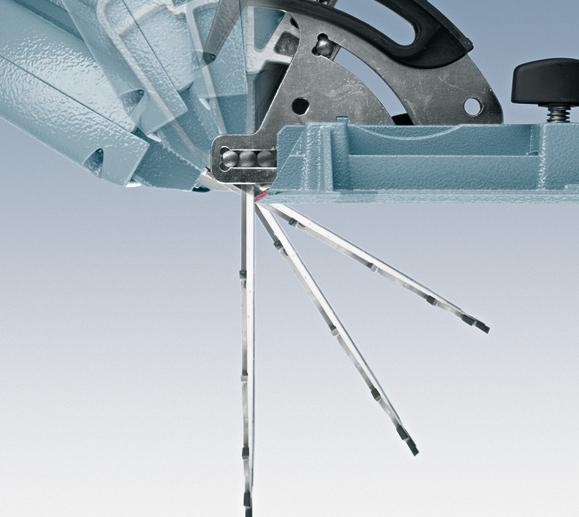

Tilt range of 0 - 60°
The tilt range of 0 - 60° enables extreme bevel cuts

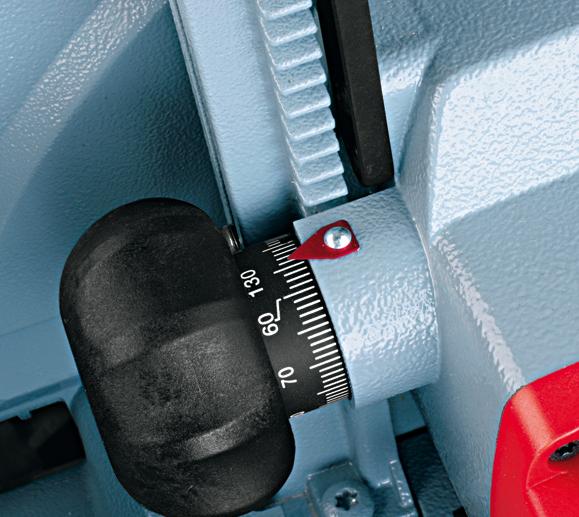

Easy to ajust
Depth of cut can be adjusted easily via a precise handwheel

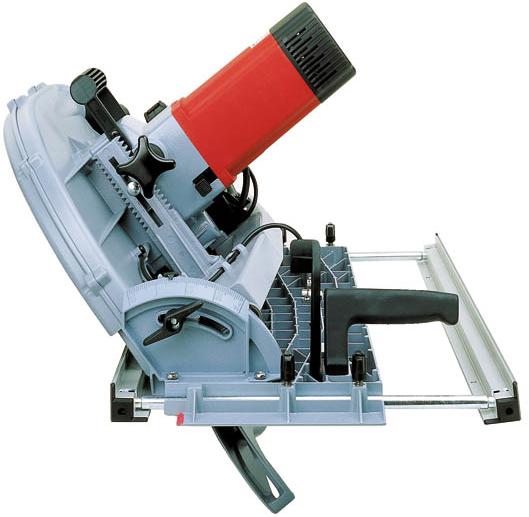

Impressive cutting depth at 60°
With a tilting range of 60°, the MKS 185Ec is ideal for compound mitre cuts, even at this angle the maximum cutting depth remains an impressive 65mm
- Cross-cutting and rip cuts
- Bevel cuts up to 60°
- General joining work
- Compatible materials include solid wood, laminated beams, insulating materials, composite boards
- With CUprex, the high-performance motor
- Unique ratio between maximum stability and minimum weight.
- High quality standard means lower machine costs and longer service life.
- Constant cut display for 0° - 60° - due to exact centre of rotation, which is on the unterside of the base plate.
| Maximum cutting depth | 105 - 185mm |
|---|---|
| Table tilt | 0 - 60 ° |
| Cutting width @ 45° | 74 - 131mm |
| Weight | 16,1kg |
Specifications are subject to change without notice.
Mafell AG manufactures high-end woodworking power tools specialised for carpentry, founded in 1899.
