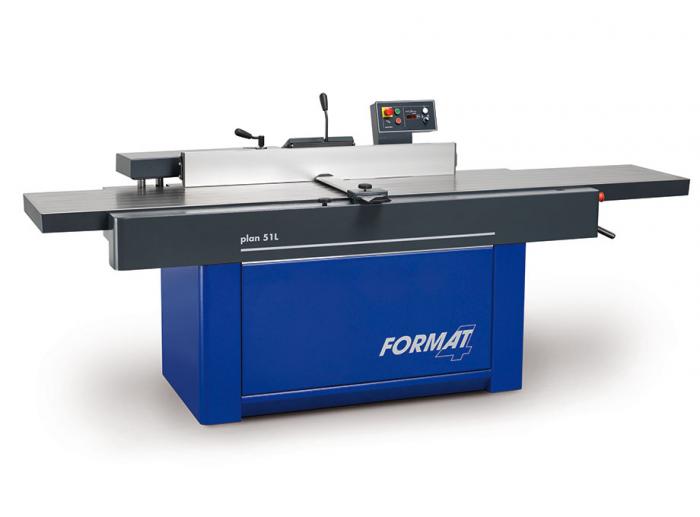

Format-4’s Plan 51L: the strength lies in the length.
The solid Plan 51L planer impresses with its new design and above all with the new three metre planing table length. The feeding planer table alone offers 1,650 millimetres of adequate supporting surface for larger dimensioned workpieces. Another highlight, the new Plan 51L is the first Format-4 planer that offers a tiltable planing table for concave and convex joint finishing. The space saving design of the planing fence makes it possible to position the planer directly against the workshop wall.
The comfort guard is integrated into the machine chassis and can be folded away which, when coupled with the design of the machine cover panel allows absolute freedom of movement when planing. The Power Drive electrical height adjustment is included as standard and offers operating comfort of the highest level. The ergonomically designed control panel is positioned at eye level.
Please note machine images may show optional equipment.
Make an enquiry about the Format-4 Plan 51L

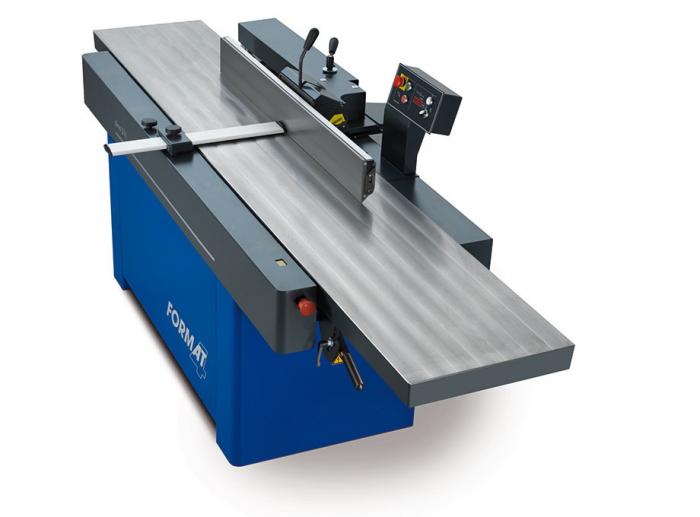

3000mm table length
A highlight of the planer is the heavy, solid, ribbed planing tables with a total length of 3m. The length of the infeed planing table alone is an impressive 1650mm and offers a solid support surface for even the largest of woodworking challenges.

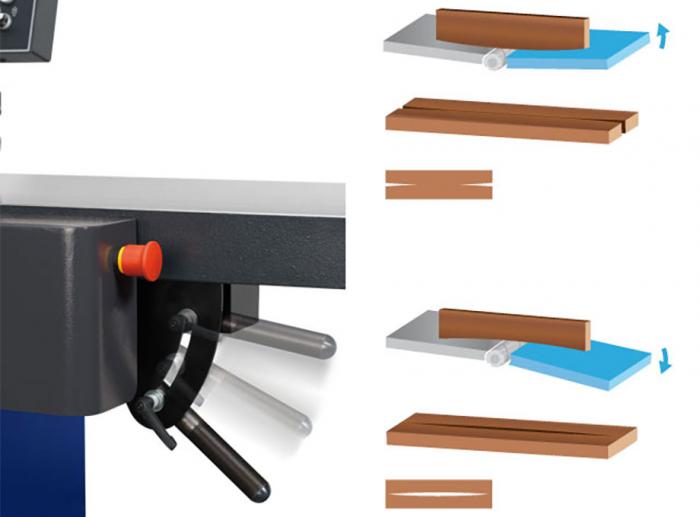

Concave - convex joint
The Plan 51L is the first Format-4 planer to offer a tilt setting of the infeed planing table for hte production of concave and convex pieces. With the concave or convex planed workpieces you will achieve perfect results when gluing, without any visible joints.
See the benefits of a Silent-POWER cutterblock
| Maximum cutting depth | 8mm |
|---|---|
| Working height | 890mm |
| Working width | 510mm |
| Motor | 5.5kW (7hp) |
| Length of tables | 3000mm total |
| Fence tilt | -45 to +45° |
| Dust extraction | 140mm |
| Knives | Silent-POWER 77 knives |
| Weight | 800kg |
Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
Plan 51L
|
A941 Surface Planer
|
A951L Surface Planer
|
|
|---|---|---|---|
| Motor | 5.5kW (7hp) | 4kW (5.5hp) | 4kW (5.5hp) |
| Weight | 800kg | 610kg | 730kg |
| Working width | 510mm | 410mm | 510mm |
| Fence tilt | -45 to +45° | 0 to 45° | -45 to +45° |
| Length of tables | 3000mm total | 2200mm | 2700mm |
| Knives | Silent-POWER 77 knives | Silent-POWER 63 knives | Silent-POWER 77 knives |
