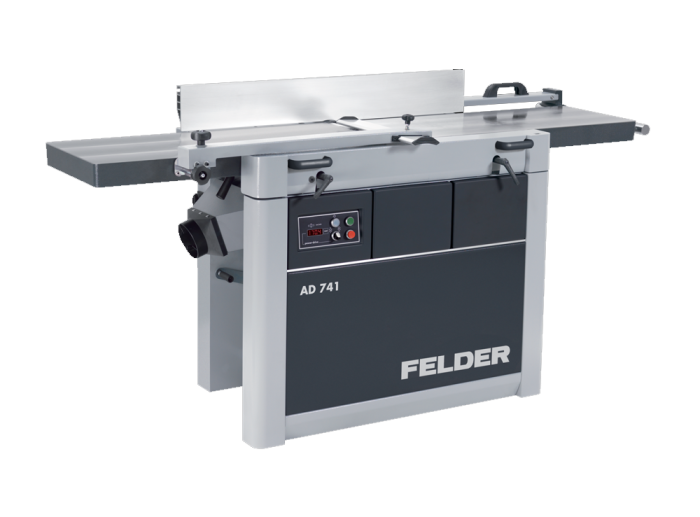

The tried and tested planer/thicknesser from the Felder 700 series is renowned for its excellent planing results and reliability. In the new design the AD 741 offers an unbeatable price/performance ratio and is a perfect entry level model into professional woodworking. Like all planers from Felder, the AD 741 can also be equipped with the revolutionary Silent-Power® spiral cutterblock guaranteeing optimal working conditions by halving the noise emissions.
Highlights:
- Easy, synchronised opening of the solid planing table
- Minimum space requirement due to the optimised planing fence
- Accuracy to a tenth of a millimetre on the thicknessing table adjustment with digital indicator
- Optional “Power-Drive” package for electrical control
- Easy to read depth of scale, optimally integrated into the machine chassis
- The Felder system cutterblock, has been guaranteeing perfect planing results for decades
- Innovative Silent-Power® spiral cutterblock halves noise emissions
Please note machine images may show optional equipment.
Make an enquiry about the Felder AD741 Planer Thicknesser
Thicknessing unit

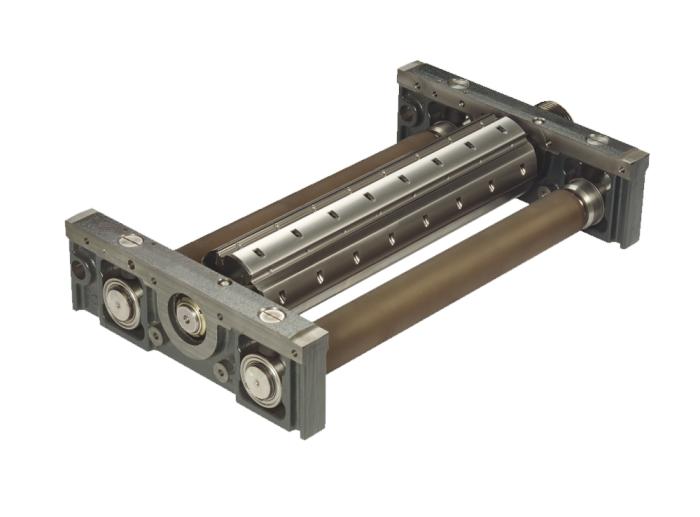

The solid cast iron cutterblock housing is built for heavy duty work. The serrated steel infeed roller and micro-serrated steel outfeed roller ensure a smooth transport of the workpiece through the machine. Both steel rollers are well dimensioned and are non-wearing.

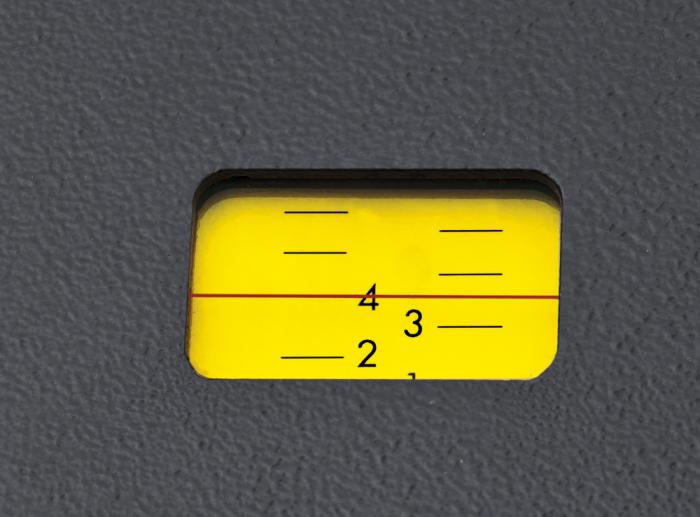

Adjusting the depth of cut
The chip removal can be adjusted continuously to up to 4 mm. The magnifying glass guarantees accurate reading of the scale.

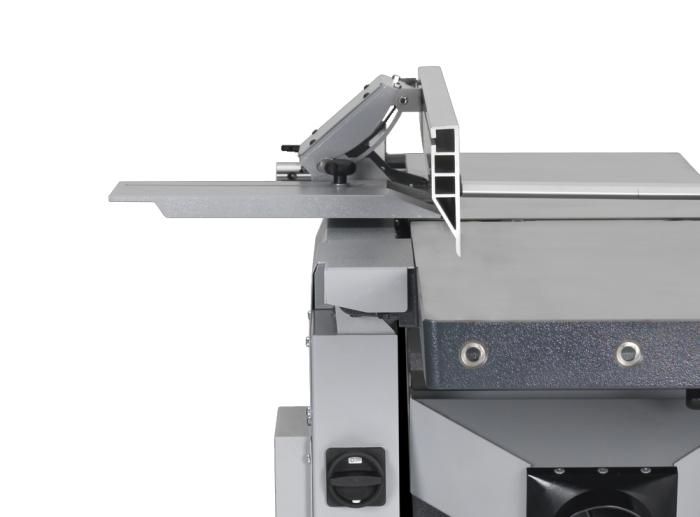

Planer fence
The planer fence: A masterpiece of engineering providing stability, precision and performance! The fence can be tilted with end-stops at 90° to 45°

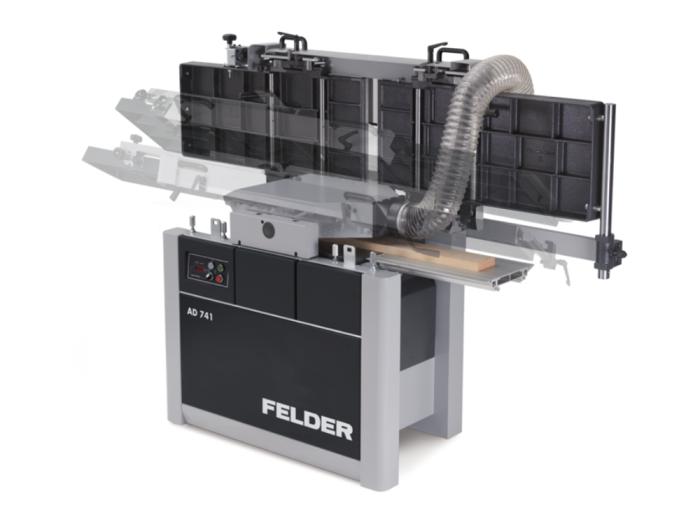

Open planer table
Quickest ever conversion from planer to thicknesser by simultaneously lifting the spring-assisted planer tables

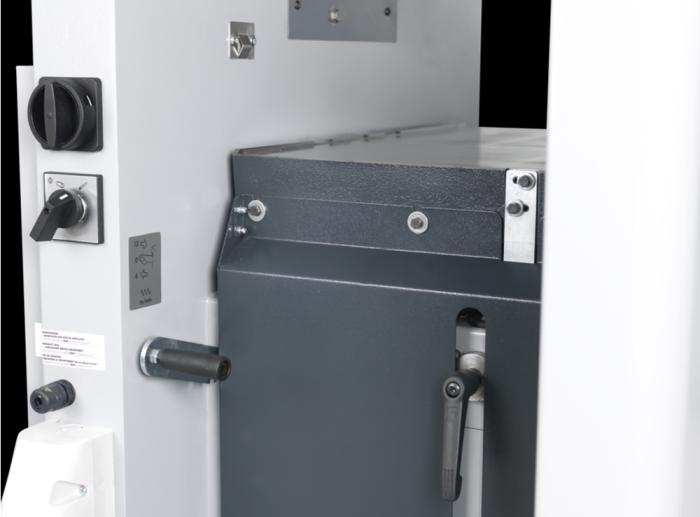

2-stage gear
Simple choice for the power feeder speeds of 6 m/min. and 12 m/min. As an option, the machine can be equipped with a reversing controller. To control the dust extractor system, connect it to a potential-free contact. This option automatically turns on your dust extractor.

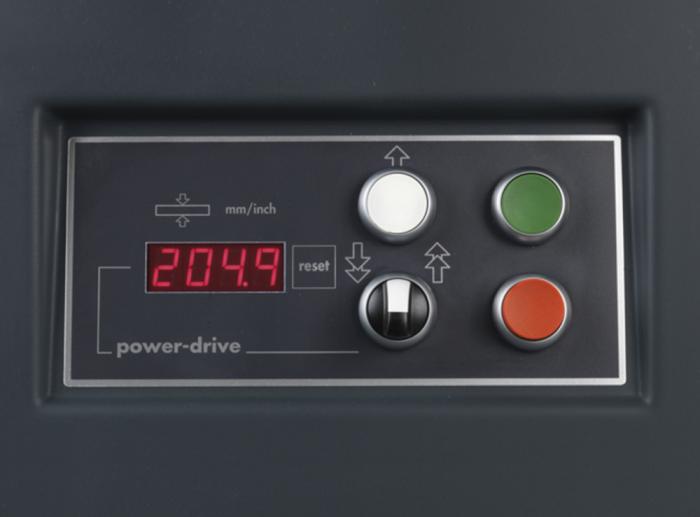

Power-Drive height control
The fully electrical height adjustment of the thicknessing table is a breeze with the Power-Driver controller. With a simple twist of the knob you can quickly adjust the thicknessing height and then fine-tune through the push of a button while the height of the table is continuously displayed through an easy to read LED display.

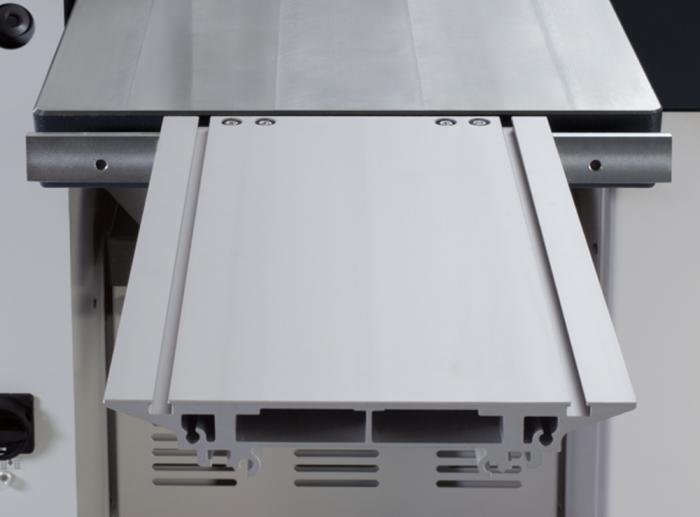

Felder table extension
With the proven Felder table extension systems, you can extend your planer table quickly and without tools.
See the benefit of the Silent-POWER cutterblock
| Working height | 890mm |
|---|---|
| Motor | 3 phase 5.5HP - single phase 4HP motor |
| Feed speed | Variable 6 - 12m/min |
| Dust extraction | 120mm |
| Knives | Silent-POWER spiral block |
| Thicknessing width | 404mm |
| Maximum workpiece thickness | 230mm |
| Weight | 500kg |
Specs shown are for the standard model we offer, but Felder offer a wide variety of options, so talk to us about customising a machine to suit you.
Specifications are subject to change without notice.
AD741 Planer Thicknesser
|
AD951 Planer Thicknesser
|
|
|---|---|---|
| Motor | 3 phase 5.5HP - single phase 4HP motor | 5.5kW (7.5hp) 3 phase |
| Weight | 500kg | 900kg |
| Thicknessing width | 404mm | 504mm |
| Knives | Silent-POWER spiral block | Silent-POWER spiral block |
| Maximum workpiece thickness | 230mm | 254mm |
| Feed speed | Variable 6 - 12m/min | Variable 4 - 16m/min |
| Working height | 890mm | 890mm |
| Dust extraction | 120mm | 140mm |
More details on the AD741 are available on Felder's website including full details on the Silent-POWER cutterblock.
