The Highspeed Series planers from Weinig offer uncompromising performance. Within the shortest time, they convert an enormous pile of wood into many stacks of high quality workpieces. The Highspeed Series is the highest class in construction and workmanship: robust, massive and a very strong unit in the high performance sector. This means planing and profiling with feed speeds up to 800m/min. And with unbelievable clean surfaces - so perfect that many operators save themselves the sanding process.
Weinig Highspeed comes with the strictest safety quality standards, fantastic operating comfort and of course the top service of the world market leader.
Plus, around the machine we build your individual production. Automation systems, tools, measuring systems, setting aids and grinding machines. All from one source.
Make an enquiry about the Weinig Highspeed Series Planer Moulders

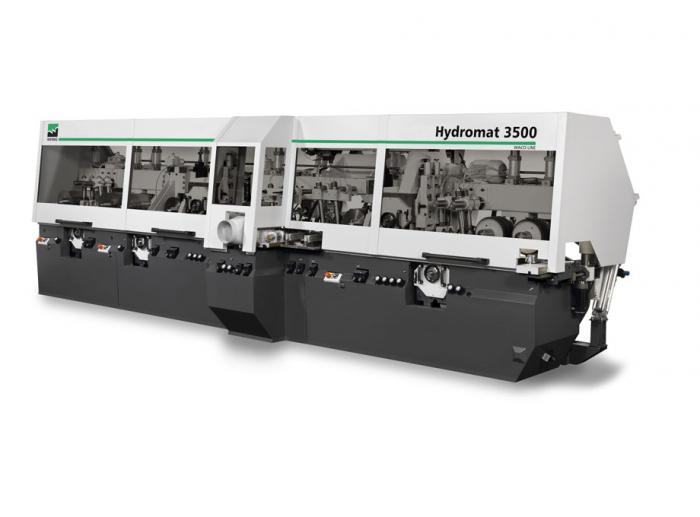

Hydromat 3500
The perfect machine when producing profiled timber, boards and mouldings. Small or large scale business, it doesn’t matter - the Hydromat 3500 is the ideal machine!
Highly equipped in standard design, but also with a wide range of accessories that makes the machine individually specified. The compact machine dimensions, the fully automatic positioning system by PowerCom and the ergonomically designed structure make the tool changing very simple. With separate feed motors, the Hydromat 3500 is 15% more energy efficient than using traditional feeding systems - just one of many advantages.

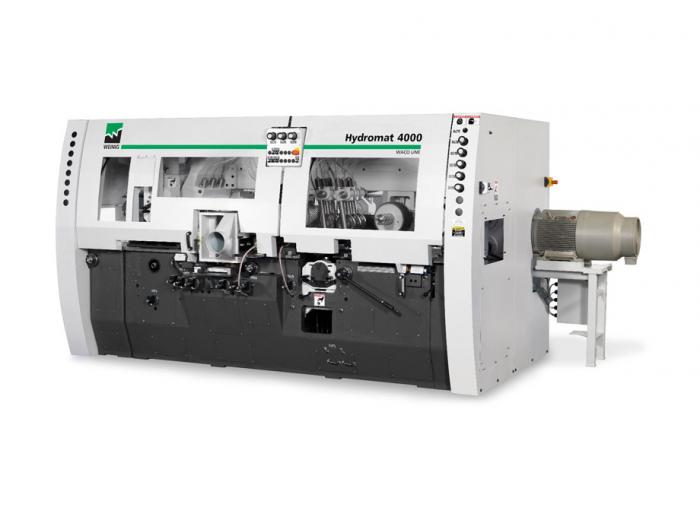

Hydromat 4000
Top quality at a fair price. Dimension planing and moulding up to 300mm width with feed speeds up to 200m/min.
This is the planer and moulder for beam or board material. The absolute width parallelism by the opposing vertical spindles is a highlight. The extremely reliable feed system with large rollers above and within the table protects the continuous transport even with difficult timber. Straight and profile jointers that can be remotely operated provide continuously perfect surfaces. Motor ratings up to 53kW (72hp) guarantee the highest chipping capacity. The short compact machine with up to 6 spindles is ideal as an individual machine or to be used in production lines. At the same time, you get safety according to strict quality standards, fantastic operating comfort and of course the top service of the world market leader.

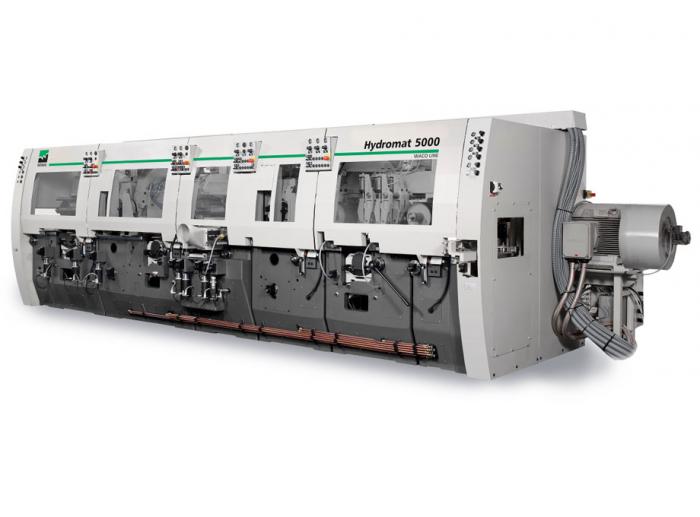

Hydromat 5000
The flexible automatic planer for large batches with a feed speed up to 400m/min.
This planer and moulder catapults you into a different dimension of productivity! At the same time you do not have to rely on large batches: With the modern PowerCom PC and the PowerCom organisation software, you reduce the setting times to a minimum. And you get an excellent finish when planing as well as moulding. The extremely reliable feed system protects with large rollers equipped with bearings on both sides and positioned above and within the table, ensuring continuous transport even with difficult timber. The straight and profile jointers that can be remotely operated provide perfect surfaces. Motor ratings up to 110kW (150hp) guarantee the highest chipping capacity. Automatic clamps of the spindles and guide rails on the left hand side make the operation easy and safe. On account of the modular system, various spindle arrangements consistent with your production are available.

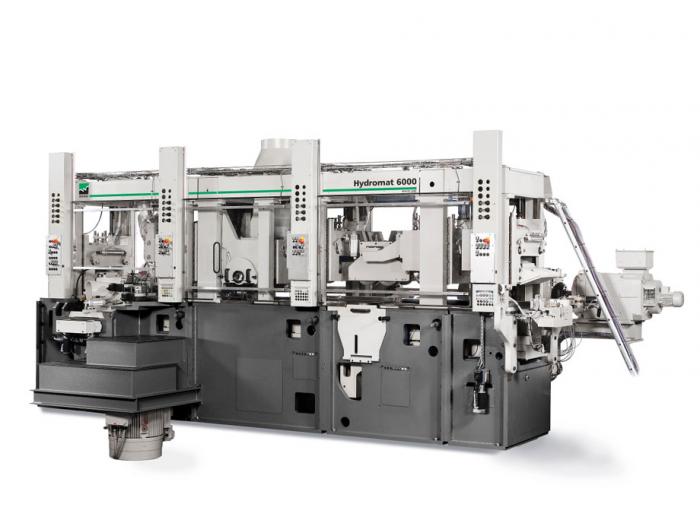

Hydromat 6000
The flexible power package from Sweden with a feed speed up to 800m/min.
The top model of the HighSpeed series for plants with extremely high production volumes and highest demands on surface and performance. You achieve absolute width parallelism by the opposing vertical spindles. The extremely reliable feed system protects with large rollers equipped with bearings on both sides and positioned above and within the table, ensuring continuous transport even with difficult timber. Jointers that can be remotely operated provide perfect surfaces. Motor ratings up to 200kW (272hp) guarantee the highest chipping capacity. Motor-driven settings of the spindles, pressure rollers and fences make the automatic machine incomparably user friendly, and you select from a multitude of spindle arrangements.
| Working height | Options from 10 - 200mm |
|---|---|
| Working width | Options from 30 to 350mm |
| Feed speed | From 10 to 800 m/min |
Specifications are subject to change without notice.
