The Peanut 2 Short is an invisible connector and the most versatile connector in our range.
It's short dowel length combined with a 3.5mm screw enable the connector to produce perfect 45°, 90°, face-to-face and end-to-end connections.
Once inserted, all panels made with Peanut components can be packed flat and depending on the tightness of the joint, can be assembled with no tools.
Key benifits:
- Self-clamping, invisible connector
- Packs flat when pre-inserted
- Creates an incredibly strong joint
- Quick and simple assembly
- Ability to reassemble many times
- Designed from glass fibre reinforced nylon
- 45° joints for 18mm+ material, 90° joints for 15.3mm+ material
- Peanut Jig and Mini Jig Compatible
Tooling Requirements: Peanut® Cutter
Make an enquiry about the IF Peanut 2 Short Box of 1250
Machining
Drill your 5mm Peanut 2 Short holes and machine your Peanut slots with the PeanutCutter
Insert the Peanut
Insert the Peanut 2 Short, flush to it's shoulder
Join your furniture
Simply connect your furniture together

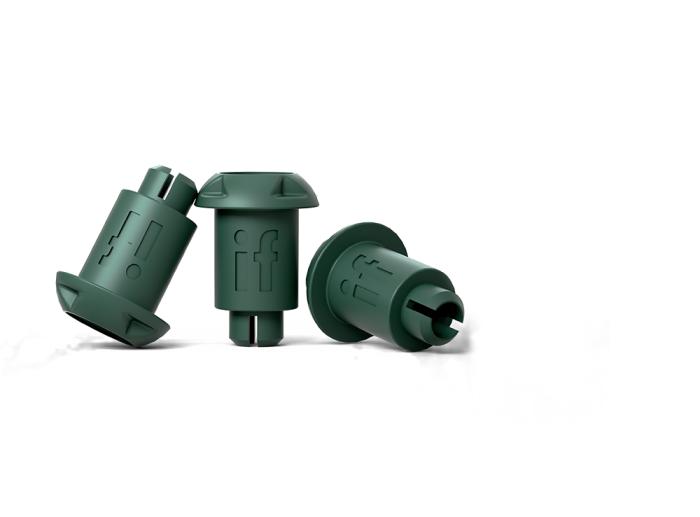

The Peanut 2 Short is made of a strong reinforced plastic. It has a smooth short dowel end for effortless insertion.
A hole through the length of the component allows for a 3.5mm screw to be used, this provides a very strong core and grip strength which secures the component to the panel. By adjusting the screw tightness, the joint can be made tighter or looser, allowing woodworkers to achieve the perfect joint even after multiple reassemblies.
The Peanut 2 Short has been designed with a shoulder to stop over-insertion and is perfectly calibrated for a tight joint in most situations. The head has been specially designed to maximise ease of assembly and joint strength. Due to its dome shape, the Peanut head smoothly slides along the slot created by the T-shaped Peanut Cutter.
In assembly, the Peanut head rides over the lip of the slot and slides to the end, this action creates a strong clamping force, pulling the two panels together from the inside.
Specifications are subject to change without notice.
