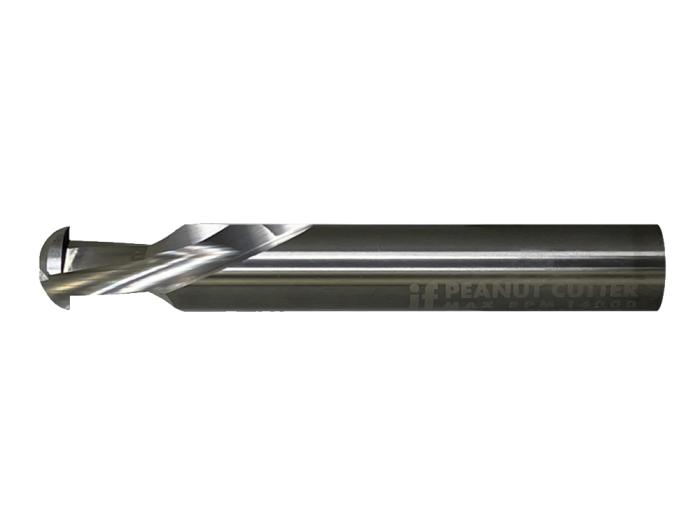

The Peanut Cutter 1/2" shank is a T-shaped cutter with a domed head and produces the Peanut slots required for all solid wood Peanut components and compatible with all solid wood Peanut connectors.
The Peanut Cutter creates a keyhole slot which has an undercut, the Peanut Component inserts into the slot and slides along the undercut to clamp two panels together.
The cutter is precisely machined from 1/2” solid carbide rods and cannot be resharpened. To create an 8mm or 12mm Peanut Cutter, the 1/2” Peanut Cutter goes through a second operation to grind the shank down to size.
For machines or routers which are unable to use the current Peanut Cutter shank sizes, we recommend purchasing a collet
Key points:
- Cuts approximately 6,500+ slots in MFC*
- Available in 3 different shank sizes
- Compatible with all solid wood Peanut connectors
- Recommended Max RPM 14,000 (CNC application)
- Made from solid carbide
- Compatible with CNC and router
*This is an estimated result. Value may vary dependent on various factors but no limited to type/quality of material.
Make an enquiry about the IF Peanut Cutter

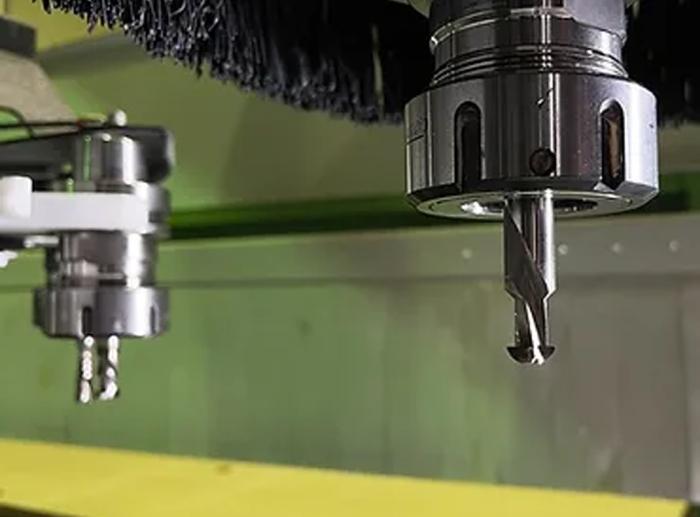

Insert your Peanut Cutter
Contact us for questions on running speeds
Machining

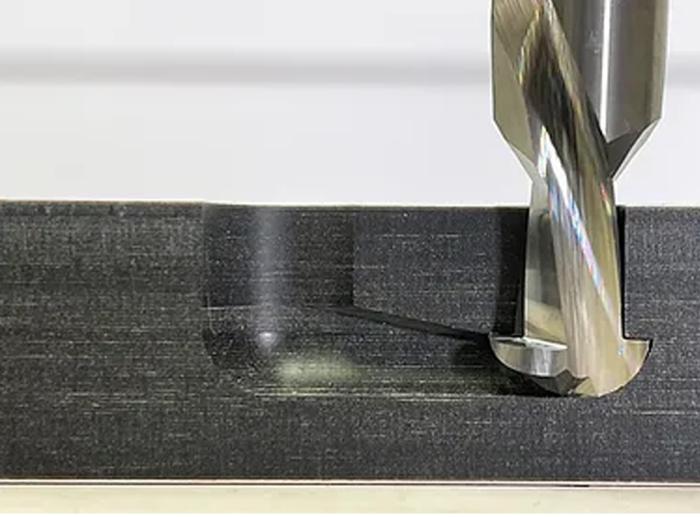

Route your Peanut slots

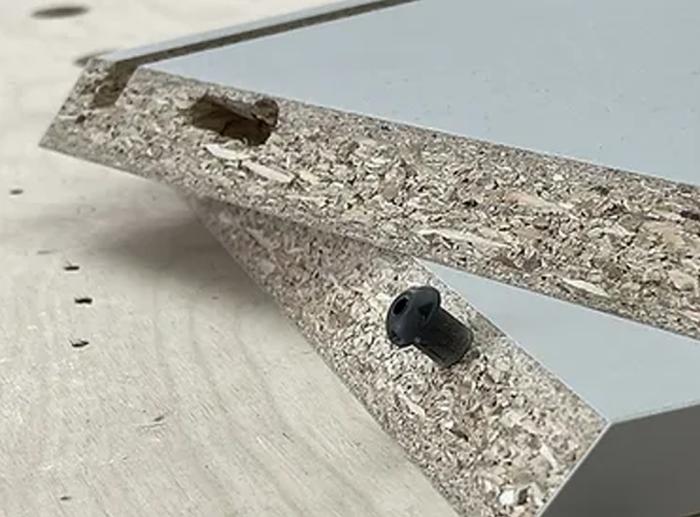

Join your furniture
After all other machining is complete and Peanuts are inserted, simply connect your furniture together
Specifications are subject to change without notice.
Intelligent Fixings PEANUT Connecting System
