Constant feed speed and exact guidance of your workpiece means standard tasks are performed precisely and safely.

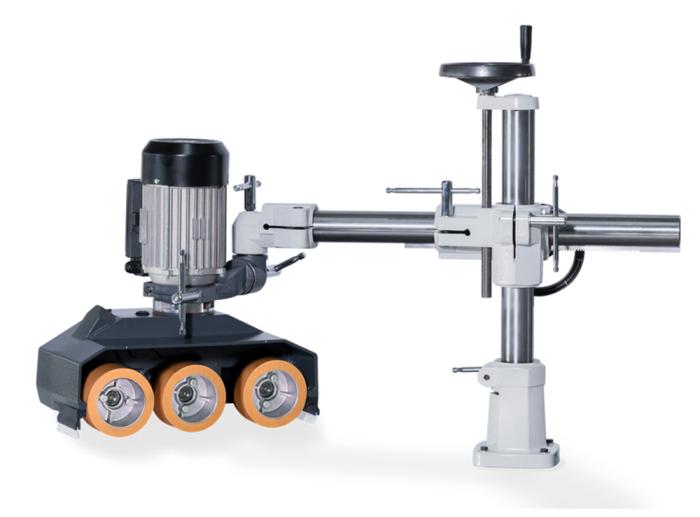

Felder’s F348 offers 3 driven rollers and four feed speeds to give you the control and accuracy you need, and the advanced tilting head allows for every conceivable position.
Advantages: Exact and clean work, constant feed speed, uniform and precise results. Advanced tilting head for every feed position.
Make an enquiry about the Felder F 348 Power Feeder
Please note, power feed units fitted to a machine should stop when the machine stops.
It is advisable that this power feed unit is integrated to the primary machine’s emergency stop circuit.
| Motor | .75kW (1hp) 3phase or .58kW (.78hp) 1phase |
|---|---|
| Feed speed | 8 spd (3.2/6.3/8.3/12.5/16.7/25/32/63 m/min) |
| Rollers | 120mm Ø, 60mm wide |
| Drive system | 3 rollers |
| Weight | 59kg |
Specifications are subject to change without notice.
F 348 Power Feeder
|
F48 Power Feeder
|
H32 Power Feeder
|
S308 Power Feeder
|
|
|---|---|---|---|---|
| Motor | .75kW (1hp) 3phase or .58kW (.78hp) 1phase | .75kW (1hp) single or three phase | .18kW (.25hp) single phase | .51kW (.7hp) single phase |
| Drive system | 3 rollers | 4 rollers | 3 rollers | 3 rollers |
| Feed speed | 8 spd (3.2/6.3/8.3/12.5/16.7/25/32/63 m/min) | 8 speed (3.5/4/6.5/8/10/12.5/20/25 m/min) | 4 speed (3.4/7/8/15 m/min) | 8 speed (2.5/5.5/7/11/14/21/27/54 m/min) |
| Weight | 59kg | 67kg | 32kg | 41kg |
| Rollers | 120mm Ø, 60mm wide | 120mm Ø, 60mm wide | 80mm Ø, 30mm wide | 100mm Ø, 50mm wide |
Felder offer woodworking machine specialists for industry, business and hobby use. Tradition – Innovation – Perfection.
