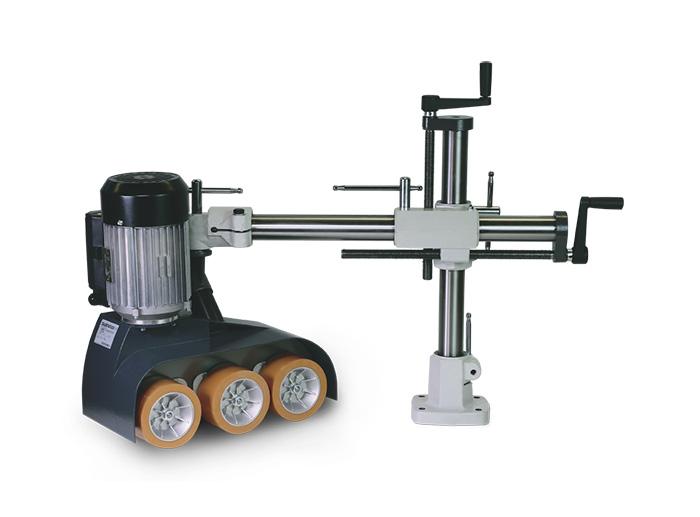

Felder S308 Power Feeder
Constant feed speed and exact guidance of your workpiece means standard tasks are performed precisely and safely.
Felder’s S308 is a light commercial power feeder with 3 driven rollers and eight feed speeds, giving you the control and accuracy you need. The simple tilting head helps you set your powerfeed up for best results..
Make an enquiry about the Felder S308 Power Feeder
Please note, power feed units fitted to a machine should stop when the machine stops.
It is advisable that this power feed unit is integrated to the primary machine’s emergency stop circuit.
Order code 05-3-011
| Motor | .51kW (.7hp) single phase |
|---|---|
| Feed speed | 8 speed (2.5/5.5/7/11/14/21/27/54 m/min) |
| Rollers | 100mm Ø, 50mm wide |
| Drive system | 3 rollers |
| Weight | 41kg |
Specifications are subject to change without notice.
S308 Power Feeder
|
H32 Power Feeder
|
|
|---|---|---|
| Motor | .51kW (.7hp) single phase | .18kW (.25hp) single phase |
| Drive system | 3 rollers | 3 rollers |
| Feed speed | 8 speed (2.5/5.5/7/11/14/21/27/54 m/min) | 4 speed (3.4/7/8/15 m/min) |
| Weight | 41kg | 32kg |
| Rollers | 100mm Ø, 50mm wide | 80mm Ø, 30mm wide |
Felder offer woodworking machine specialists for industry, business and hobby use. Tradition – Innovation – Perfection.
