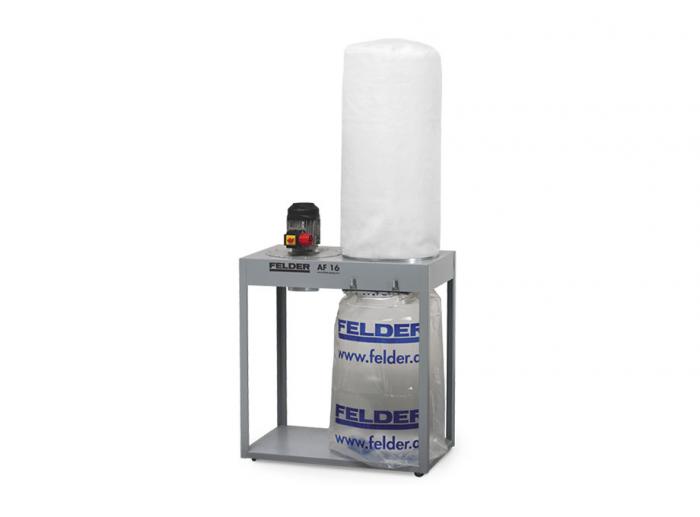

Felder AF16 Extractor

Maximum extraction in very little space!

With high operational comfort thanks to the quick-change chip collector system, and a large connection for tube and pipe extraction, this is a top quality European extractor to keep your workshop clean and tidy.

The AF16 features a steel frame for warp resistance as well as a 5mm thick steel impeller to resist any damage from large offcuts. The high-class motor from ATB in Austria guarantees reliability and suction power.

The AF16 is provided with a Class-L filter and can be optionally upgraded to a Class-M filter (Class-M is the recommended filtration level when working with wood-dust according to EN 60335-2-69:2012).

Make an enquiry

Make an enquiry about the Felder AF16 Extractor

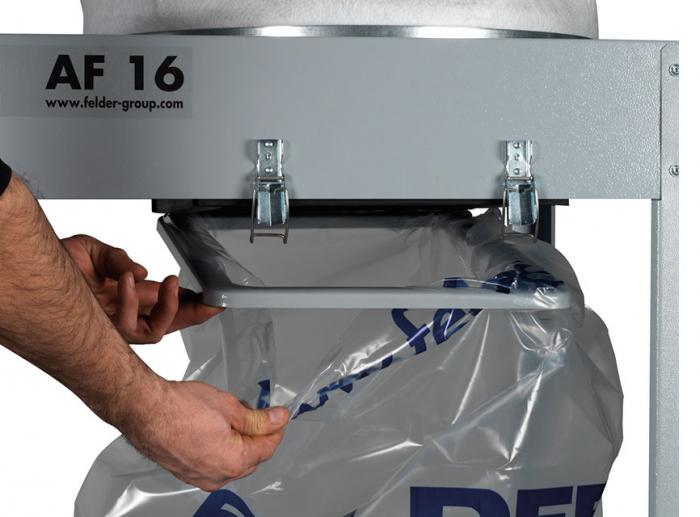

Quick collection bag changeover

2 Quick-lock clamps on the front of the machine allow the most ergonomic changeover of plastic bags on a mobile extractor, making an otherwise difficult and dirty task extremely quick and clean.

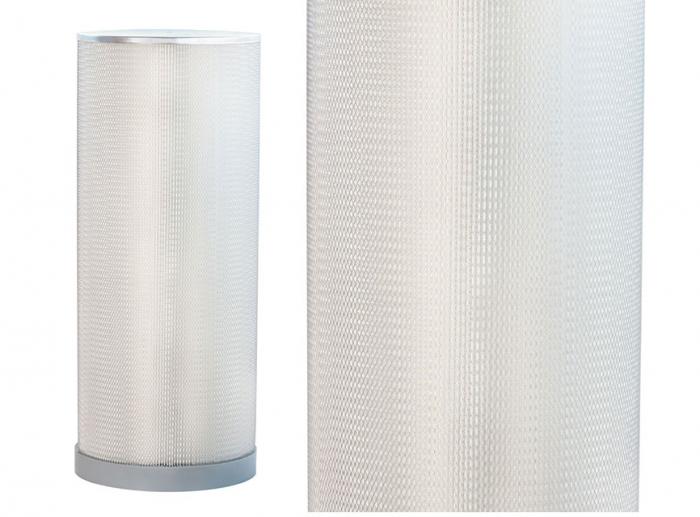

Optional Class-M Filters

The optional Class-M filters provide a higher degree of dust filtration for reduced contamination of your workshop. This is an active step towards ensuring the health of you and your workers.

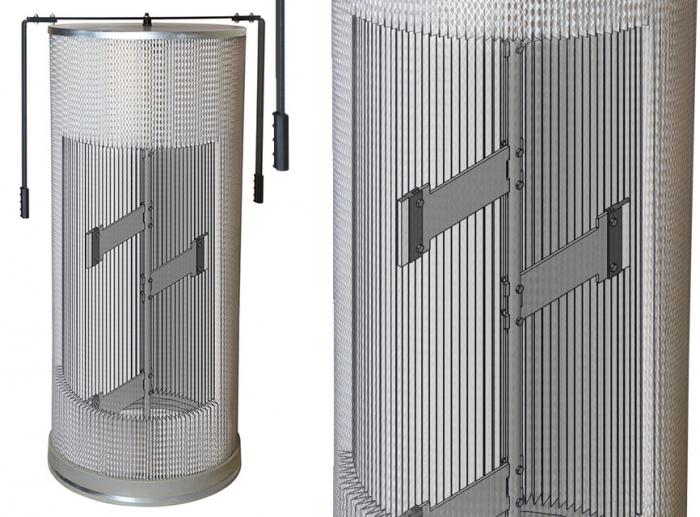

Optional Class-M Filter Cleaner

The optional Class-M filter cleaner keeps the filter clear of blockages for consistent high airflow results.

Prod code: 401-247

Motor	2.2kW (3hp)
Air pressure	2150Pa
Air flow	50m³/min (1766CFM)
Dust extraction	160mm
Collection bag	1 x 200L
Weight	52kg

Specifications are subject to change without notice.

	AF16 Extractor	AF12 Extractor	AF22 Extractor Stationary	AF14 Extractor
Motor	2.2kW (3hp)	1.1kW (1.5hp)	4kW (5.5HP)	1.85kW (2.5hp)
Air flow	50m³/min (1766CFM)	22.5m³/min (795CFM)	51.7m³/min (1825CFM)	39m³/min (1385CFM)
Dust extraction	160mm	120mm	200mm	140mm
Collection bag	1 x 200L	1 x 110L	2 x 200L	1 x 200L
Weight	52kg	32kg	65kg	47kg
Air pressure	2150Pa	1800Pa	2510Pa	2140Pa
