Compact Design, Stable Temperature, With a 40% higher adhesion than conventional hot-melt coating

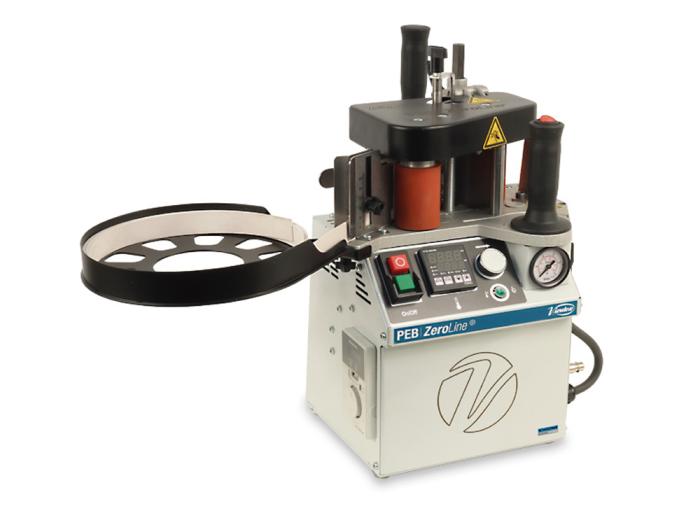

Compact design Portable Edgebanding machine with ZeroLine® technology by hot air. Thanks to this technology the banding between the panel and the tape is excellent, with a seamless joint. The result is an edgebanding of high quality.
Excellent finishing on straight, round, shaped and inclined panels. Very practical for small or medium manufacturing series due to its easy operation and fast adjustment.
For PVC & ABS tapes with coextruded or postprocessed active layer, so it is not necessary to clean a glue tank.
For tapes up to 2 mm thickness. It is possible to band acrilic and lacquered boards.

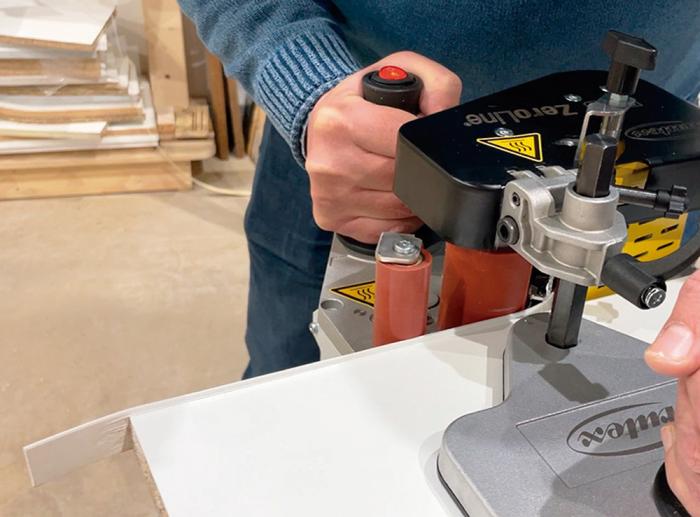

Perfect finishing on straight, round, shaped and inclined panels (0°- 50°).
The PEB works with low pressure air. It does not need a high performance compressed air system.

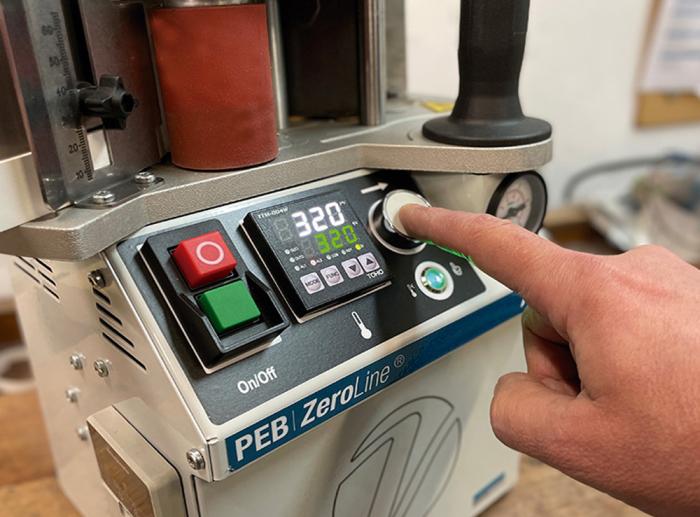

With light indicator of optimal working temperature reached. Equipped with roller holder.
The edge banding machines with hot air technology fuse the edge to the panel, providing an excellent finish and seamless joint.
ZeroLine® is a registered trademark of Virutex.
With light indicator of optimal working temperature reached.
Tape thickness | 0.8 - 2.0 mm |
---|---|
Air pressure | 6 bar |
Feed speed | 1.0 - 3.3 m/min |
Tape width | 10 - 65 mm |
Working temperature | max: 370° C |
Dimensions (W x D x H) | 230x212x360 mm |
Weight | 11.5kg |
Specifications are subject to change without notice.
Virutex has a wide range of machinery and accessories that are available via Jacks.
