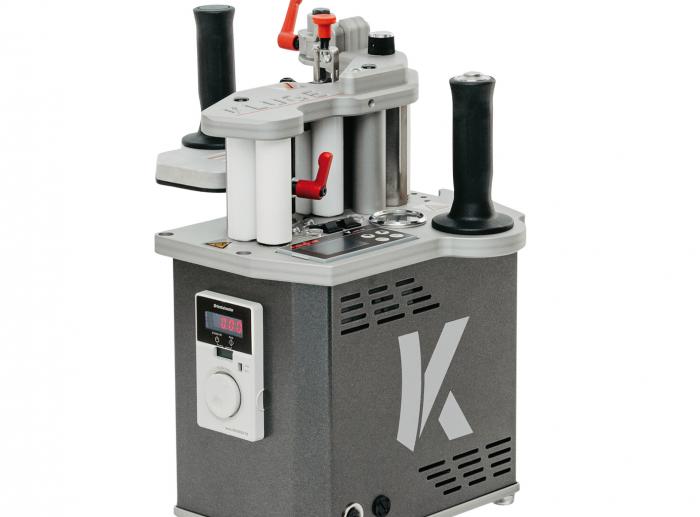

Mafell HIT-M 65 SA edgebander

The HIT-M is the first and only mobile edgebander for creating a zero joint. The hot-air injection method used allows all commercially available pre-coated or post-coated edges to be applied without the use of additional adhesive.

The HIT-M can be used for both straight and curved workpieces with the abilty to work extremely tight radii of 10mm. Edging of bevelled surfaces is no problem with the ability to apply up to a 50° bevel when used freehand and 55° when used in the machine stand with pneumatic adjustment.

The working temperature is reached a few seconds after switching on the unit and as there is no gluepot, there is no need for time-consuming colour changes or cleaning of glue pans.

Included with the HIT-M 65 SA is the BAT+ machining table for stationary work of larger workpieces.

An entry-level option to get you started in the airTec zero-joint revolution.

Make an enquiry

Make an enquiry about the Mafell HIT-M 65 SA edgebander

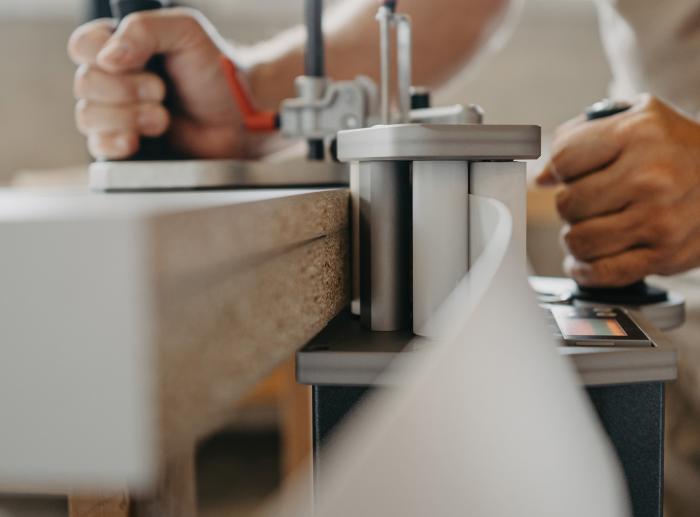

Edges from 0.4 - 3 mm

All commercially available edges from 0.4 - 3 mm (¹/64 - ¹/8 in) with pre-coated or post-coated functional layer can be processed with the HIT-M

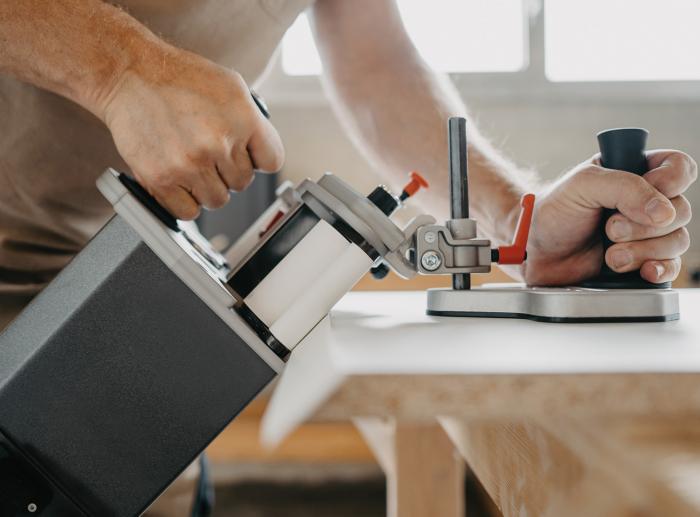

Support plate can be swiveled up to 50°

For beveled plate edges, the support plate can be swiveled up to 50°

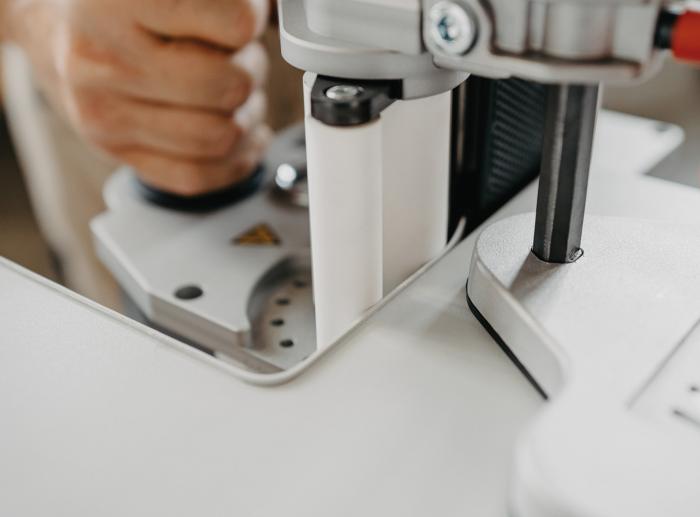

Driven pressure roller

Due to the driven pressure roller of the SA-model, extreme inner radii as from 10 mm can be effortlessly implemented

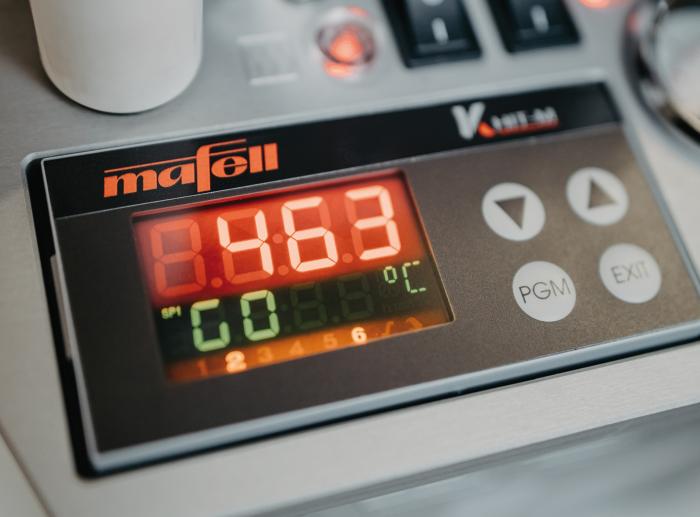

Simple and intuitive controls

A clear arrangement of the control elements makes working with the device simple and intuitive

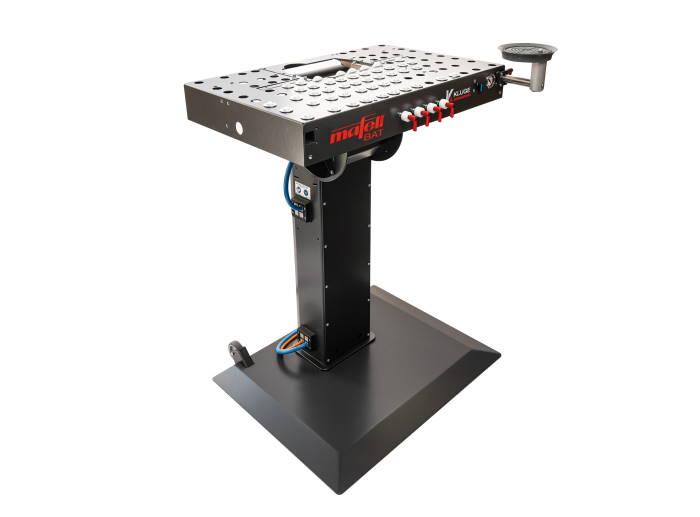

BAT+ machining table included

The included BAT+ machining table turns the edgebander into a semi-stationary system for support of larger workpieces with ball bearing casters ensuring smooth movement of the panel over the table.

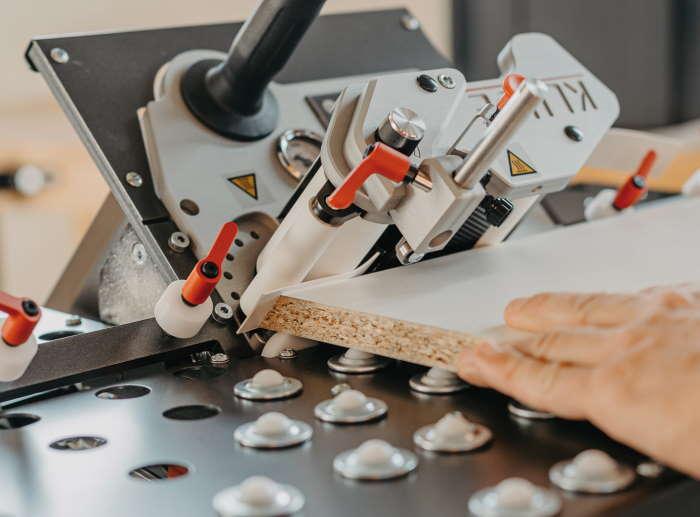

Machine table swivel up to 55°

For beveled edges the machine table can be swiveled up to 55°.

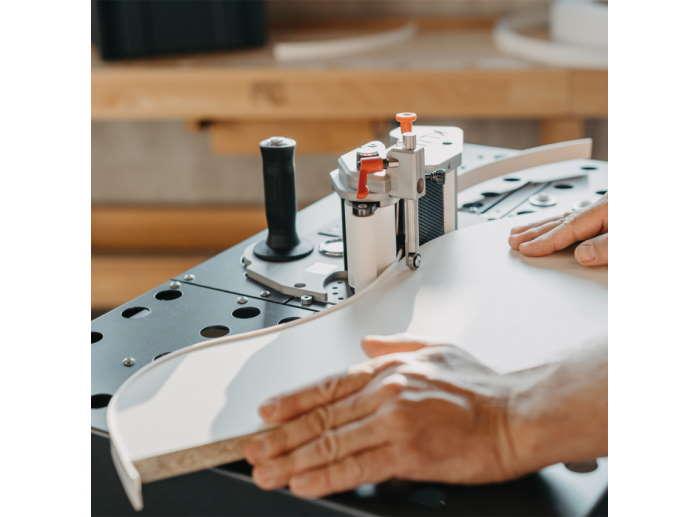

Freeform edgebanding

The ability to perform both curved shapes and straight edges on the machining table with quick configuration changeover time.

Tape thickness	0.4 - 3.0mm
Air pressure	6 - 10 bar
Feed speed	1.0 - 5.5m/min
Working temperature	Maximum 520°C
Maximum workpiece thickness	10 - 65mm
Weight	10.8kg
Min, inner Radius	10mm

Specifications are subject to change without notice.

	HIT-M 65 SA edgebander	PEB250 Handheld Edgebander	PEB Zero line Edgebander
Tape thickness	0.4 - 3.0mm	0.4 - 3mm	0.8 - 2.0 mm
Feed speed	1.0 - 5.5m/min	2, 4, 5, 6m/min	1.0 - 3.3 m/min
Working temperature	Maximum 520°C	120 - 200°C	max: 370° C
