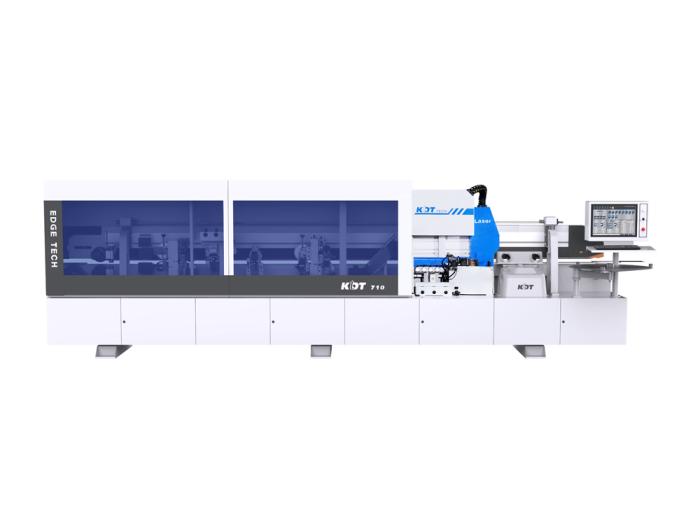

The KE-710 BT Edgebander is an affordable industrial-level fully loaded, auto-adjustable Edgebander with 10 independent servo motors for quick and precise adjustments from the control panel to an accuracy of 0.01mm.
Make an enquiry about the KDT KE-710 BT LASER
• Top Belt Pressure Beam – Motorised Adjustment
• Solid Polished Steel Infeed Fence - Servo Adjustable (S1)
• Pre-Milling Unit with Diamond Tooling
• Laser Unit
• Pressure Zone - Servo Adjustable (S2)
• End Trimming Unit - 2-Point Pneumatic Adjustment
• Fine Trim Trimming Unit - Servo Adjustable (S3 – S6)
• 2 Motor Corner Rounding Unit – 2-Point Pneumatic Adjustment
• Multi-Profile Top & Bottom Radius Scraping Unit - Servo Adjustable (S7 – S10)
• Flat Surface Scraping Unit
• Detergent Spray Unit
• Buffing Unit
| Panel thickness | 9 - 36mm |
|---|---|
| Tape thickness | 0.4 - 3mm (0.8 - 3mm laser) |
| Feed speed | 15, 18 & 24m/min |
| Dimensions (W x D x H) | 6200 x 940 x 1960mm |
| Weight | 2900kg |
Specifications are subject to change without notice.
KE-710 BT LASER
|

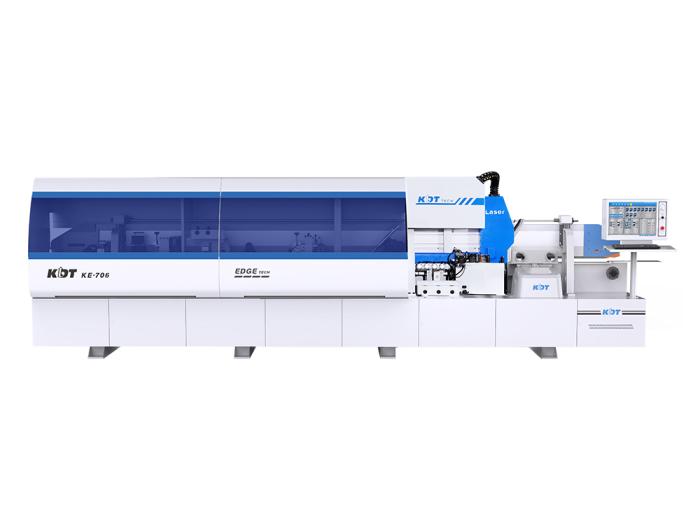

KE-706GBSUT Laser Edgebander
|
|
|---|---|---|
| Weight | 2900kg | 4000kg |
| Feed speed | 15, 18 & 24m/min | 15, 18 & 24m/min |
| Tape thickness | 0.4 - 3mm (0.8 - 3mm laser) | 0.4 - 3mm (0.8 - 3mm laser) |
| Panel thickness | 9 - 36mm | 9 - 60mm |
| Dimensions (W x D x H) | 6200 x 940 x 1960mm | 8800 x 940 x 1960mm |
