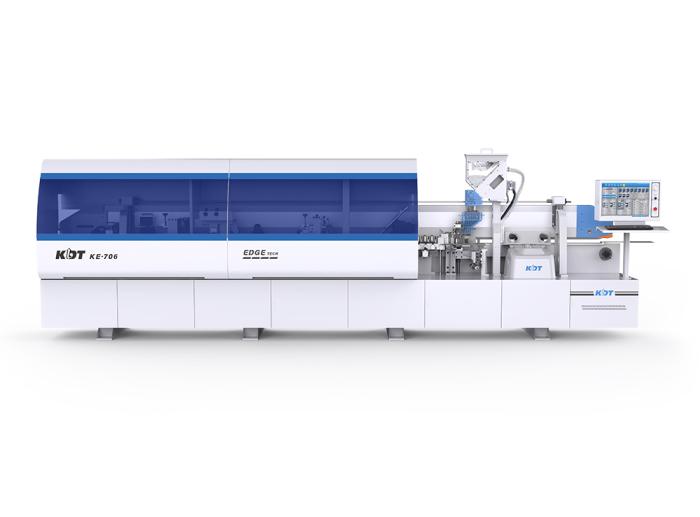

KDT KE-706 Edgebander
The KE-706 GT Edgebander is an affordable industrial-level fully loaded, auto-adjustable Edgebander
Make an enquiry about the KDT KE-706BT Edgebander
- Anti-adhesive spray unit prior to Pre-milling
- Top Belt Pressure Beam - Servo Adjustable
- Solid Polished Steel Infeed Fence - Servo Adjustable
- Pre-Milling Unit with Diamond Tooling
- Gravity Fed Quick-Change EVA Hot-Melt Glue Application Unit
- Pressure Zone - Servo Adjustable
- End Trimming Unit
- Fine Trim Trimming Unit - Servo Adjustable
- 2 Motor Corner Rounding Unit – 2-Point Pneumatic Adjustment
- Multi-Profile Top & Bottom Radius Scraping Unit - Servo Adjustable
- Flat Surface Scraping Unit
- Detergent Spray Unit
- Buffing Unit
| Panel thickness | 9 - 60mm |
|---|---|
| Tape thickness | 0.4 - 3mm |
| Feed speed | 15, 18 & 24m/min |
| Dimensions (W x D x H) | 940 x 6200 x 1960mm |
| Weight | 2900kg |
Specifications are subject to change without notice.
