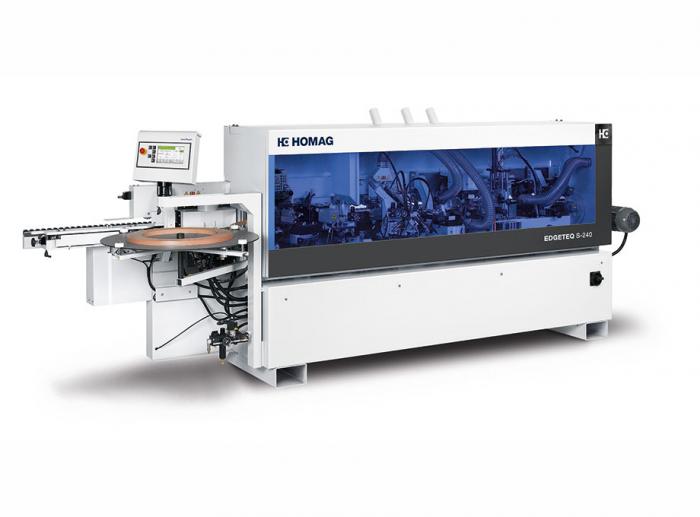

Homag is the worldwide market leader of edgebanders, and their EDGETEQ range is perfectly suited to the small to mid-sized companies of New Zealand. The EDGETEQ S-240 series provides complete solutions for the small to medium sized shop:
Compact and affordable, and based on the popular 'Ambition' range (previously branded 'Brandt'), Homag's EDGETEQ S-240 machines offer precision and quality at an affordable price.
Automating units for the first time provides you with perfect results and easy operation. Our short and compact models enable you to fully process your workpieces in the smallest possible space. These machines enable you to meet demands such as the trend for zero joints.
Benefits
- 11 different models to meet every requirement
- Perfect edges
- Optimum entry-level machine
- Short and compact machines
- Intuitive operation – innovative easyTouch control system
- Robust design
For the most demanding standards of quality and reliability there is no substitute for a Homag.
Make an enquiry about the Homag EDGETEQ S-240 series
(Please note specifications vary by model)
- For banding edge thicknesses up to 3 (6) mm and workpiece thicknesses up to 50 (60) mm
- Also available with joint trimming unit for a perfect cut and an optimum glue joint
- Excellent ease of use and operating safety thanks to the state-of-the-art touchscreen control system
- Profile trimming unit for rounding corners - complete processing
- Zero joints - airTec unit for a perfect zero joint finish
- Short setup times thanks to pneumatic adjustment of the units
- Multi-stage technology for highly flexible use with changing materials
| Panel thickness | 8 - 50mm (opt to 60) |
|---|---|
| Tape thickness | 0.3 - 3mm |
| Solid strip thickness | Optional to 6mm |
| Feed speed | 11m/min |
Machines in the EDGETEQ S-240 range include:
Model 1210
Model 1220 F
Model 1210 HF
Model 1220 AT
Model 1220 C
Model 1220 FC
Model 1220 HF
Model 1230 AT
Model 1230 FC
Model 1230 HF
Model 1240 FC
Specifications are subject to change without notice.
Want to know more? Read about a local owner from Joiners magazine.
Brandt 1220FC at Rob O'Keeffe Joinery in Wanganui, Joiners June 2017
Brandt 1240FC at Boxmakers by Vikon , Joiners March 2022
