DH10 Drilling head

Vertical drilling unit with 10 vertical drilling spindles. 6 spindles in the X direction and 4 in the Y direction.

• All drilling spindles can be used individually or in combination • All drill spindles can access the full width and length of the working table • Rotation speed 6000rpm

Main spindle 12kW (15HP)

The main spindle is connected to the Z-axis plates and guided with 2 lineal guides. Z-axis movement with large diameter ball screw.

The tool is clamped with ISO-30 connection. The tool holder connection is monitored to maximise safety.

• Connected load: 12KW (15HP) • Spindle rotation speed: 1000 - 21000 rpm • Blower to improve dust extraction during operation • Bearing: ceramic bearings • Spindle cooling: air-cooled • Supplied with 12 tool holders

Vacuum system

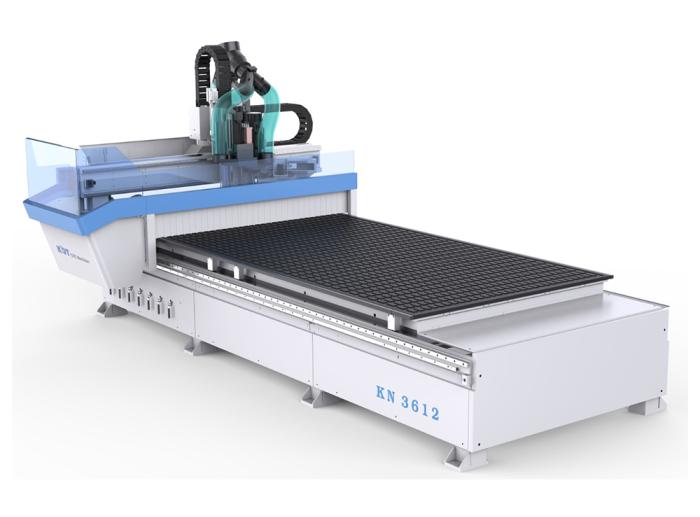

2 x Becker dry vane vacuum pumps with a total vacuum performance of 500 m3/h at 50 Hz are supplied as standard with the KDT KN-3612DE CNC. The vacuum pumps combined with the multi grooved phenolic matrix table and efficient under table vacuum plumbing system ensure workpieces are held firmly in position.

A control sensor for the vacuum suction level avoids the risk of components moving during processing and potentially being projected into the workshop.

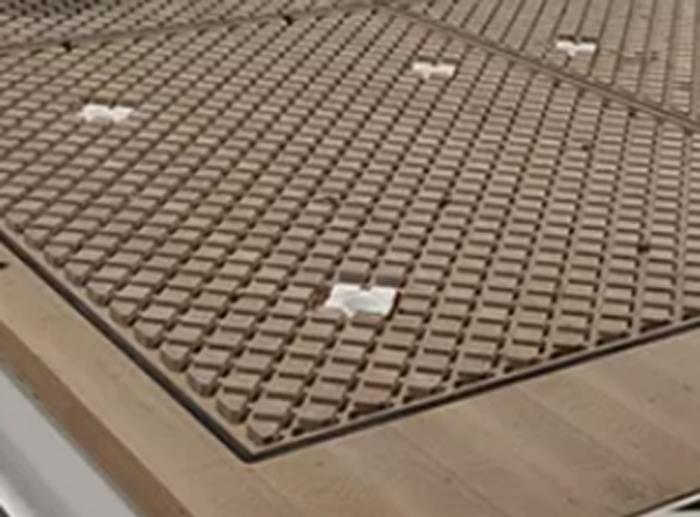

Matrix Vacuum Table: 3700 x 1830mm

Featuring a large open vacuum chamber integrated into the machine frame. Significantly improving vacuum distribution across the full length and width of the phenolic matrix vacuum table.

4 individually selectable vacuum zones can be automatically turned ON and OFF directly from the control panel.

12 Station rotary tool changer

The rotary tool changer travels with the gantry to speed up tool changes.

100 mm maximum tool diameter.

Your KN-3612DE CNC is equipped with 12 x tool holders as standard.

Automatic length measurement systems for tool in Z axis

No manual tool measurement required.

The tool will be measured whilst in the machine to provide an exact tool length. The length of the tool will be automatically transferred and saved to the tooling database.

The Z axis stroke will compensate for the tool length so that the exact milling depth is achieved.

Lineal workpiece guide rails

2 lineal rails, 1 on each side of the machine guide workpieces as they are being pushed off the machining table onto the (optional) outfeed conveyor table.

When loading panels manually the back rail and 2 panel locating pins on the left pop-up to help the operator position the panel accurately.

Both rails and pop-up pins are monitored to prevent the possibility of a collision with the main spindle.

Guiding system X & Y axis

The gantry movement along the X and Y axes is carried out through a helical rack and pinion system with lineal guides.

Helical rack and pinions ensure rack teeth are always fully engaged. Delivering smooth acceleration and deceleration with increased positioning accuracy.

Vacuum pusher arm

Use the vacuum pusher arm to clean the spoil board between processing sheets. Can also be used in combination with the (optional) outfeed conveyor table to automatically unload the machining table.

Also supplied with suction cups & side panel alignment pusher for connection to (optional) automatic loading table.

Efficient dust extraction system

Keep your workshop and CNC machine clean. Supplied with 3 independent extraction branches. 1 for the main spindle, 1 the drilling head and 1 for the vacuum pusher.

The automatic gate system closes the non-required extraction ports, channeling the extraction airflow to the required port.

No requirement for a 90° ducting bend above the extraction ports as on some CNC machines. A 90° bend significantly reduces airflow and extraction performance.

• 1 x 200mm extraction port connection • Air volume required 3400m3/h at 20m/sec
