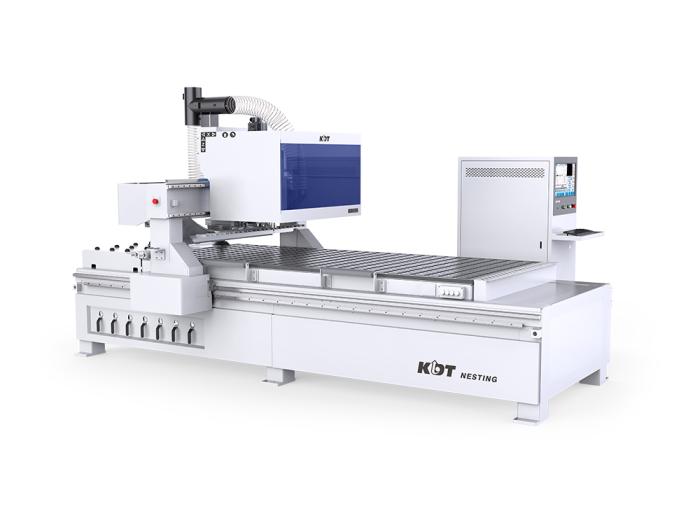

Build Quality

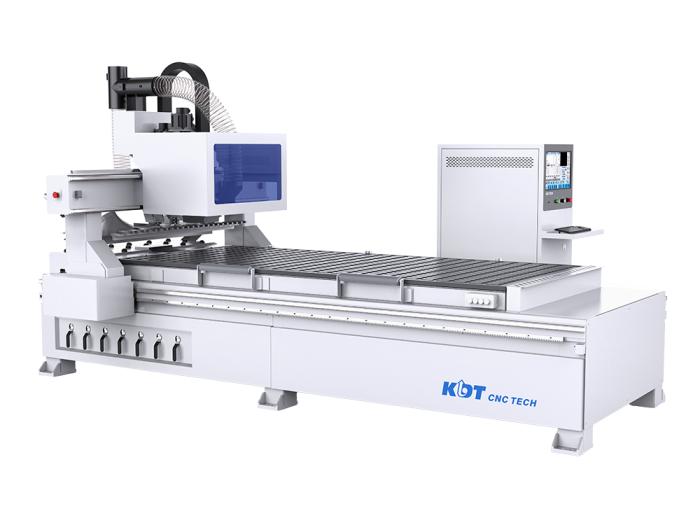

Heavy duty frame construction. Twin 260 x 160 x 8mm thick steel beams form the foundation of the machine frame.
Precision CNC robotic welded, heat treated to 590 ° C then machined on a 5 axis CNC to guarantee maximum accuracy for positioning components.
Performance
Superior 8mm thick steel gantry design dampens vibration. Driven on both sides by independent servo motors with absolute encoders. Eliminates gantry flex while maintaining repeatable accuracy. Positioning speed in X & Y axis of 100m/min.
100% Quality
Only the highest quality components go into every KDT CNC. Taiwanese PMI helical rack & pinion with German robotic flexible cables ensure performance you can rely on.
Ease of Use
Use of the latest software and operating systems provide a modern, user-friendly interface for the CNC operator. Automatic central lubrication, automatic gated extraction and monitored pop-up rails and stops ensure a safe and comfortable working environment.
Heavy Duty Gantry (HDG)
8mm thick steel gantry with 1.5KW servo motors on both sides providing positioning accuracy and fast acceleration and deceleration.
Powerful 9KW (12HP) Main spindle
Plenty of power for almost any job.
Twin X Axis Servo Motors
Prevents “racking” of gantry and increases processing accuracy.
Industrial Controller & Windows 10 OS
Proven industrial CNC controller with Microsoft 10 operating system.
Modular System
Add auto labelling, loading and unloading units to increase productivity and efficiency
Make an enquiry about the KDT KN-2409NL
Main spindle 9kW (12HP)
Main spindle 9kW (12HP) The main spindle is connected to the Z-axis plates and guided with 2 lineal guides. Z-axis movement with large diameter ball screw. The tool is clamped with ISO-30 connection. The tool holder connection is monitored to maximise safety. • Connected load: 9kW (12HP) • Spindle rotation speed: 3000 - 18000 rpm • 4-way air blower to significantly improve dust extraction performance • Bearing: ceramic bearings • Spindle cooling: air-cooled • Supplied with 12 tool holders
Automatic length measurement systems for tool in Z axis
No manual tool measurement required.
The tool will be measured whilst in the machine to provide an exact tool length. The length of the tool will be automatically transferred and saved to the tooling database.
The Z axis stroke will compensate for the tool length so that the exact milling depth is achieved.

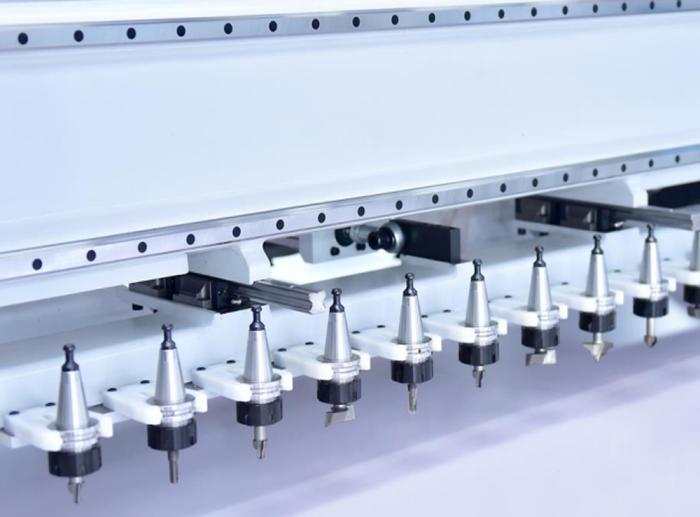

12 Position linear tool magazine
The linear tool changer is conveniently tucked under the gantry and travels along the X axis with the gantry.
This reduces the time required to change tools as the gantry does not need to travel back and forth to a fixed tool magazine when changing tools.

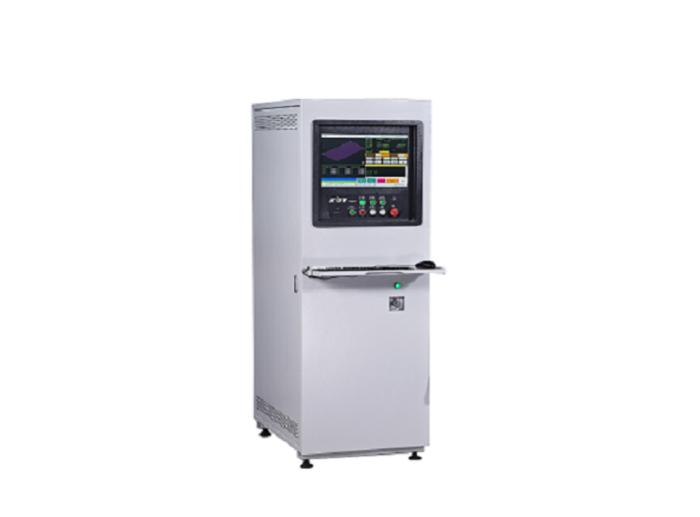

Control terminal for machine operation
Clear and easy to understand interface for machine operation and singular piece programming. Includes handheld remote for testing programs and prototyping. • Mobile control terminal • Windows 10 Operating System • 1 USB port
Vacuum system

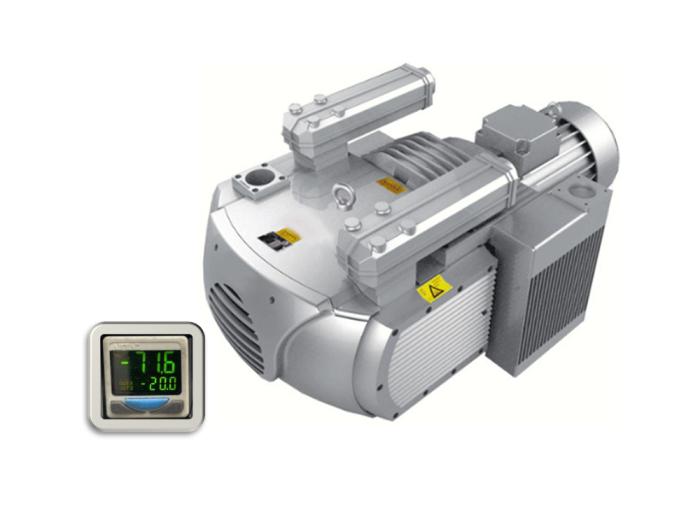

A Eurovac vacuum pump with a total vacuum performance of 250 m3/h at 50 Hz is supplied as standard with the KDT KN-2409DL CNC.
The vacuum pump combined with the multi grooved phenolic matrix table and efficient under table vacuum plumbing system, ensure workpieces are held firmly in position.
• 250 m3/h vacuum capacity
A control sensor for the vacuum suction level avoids the risk of components moving during processing and potentially being projected into the workshop.
Guiding system X & Y Axis
Gantry movement along the X and Y axes is carried out through a 30mm helical rack and pinion system with high precision lineal guides.
Helical rack and pinions ensure rack teeth are always fully engaged. Delivering smooth acceleration and deceleration with increased positioning accuracy.
Vacuum pusher arm
Use the vacuum pusher arm to clean the spoil board between processing sheets. Can also be used in combination with the (optional) outfeed conveyor table to automatically unload the machining table.
Also supplied with suction cups & side panel alignment pusher for connection to (optional) automatic loading table.
Automatic extraction gate system
The automatic extraction gate system closes the non-required chutes focusing the extraction airflow to the required port. 2 independent extraction chutes with automatic gates. 1 for the main spindle 1 for the vacuum pusher 1 x 150mm main extraction port connection Air volume required 2800m3/h at 25m/sec (class leading)
| Table size | 2850mm x 1220mm |
|---|---|
| Main spindle | 9kW |
| Tool changer | 12 Station magazine |
| Vacuum | 250m³/h |
| Weight | 2500 kg |
Specifications are subject to change without notice.
