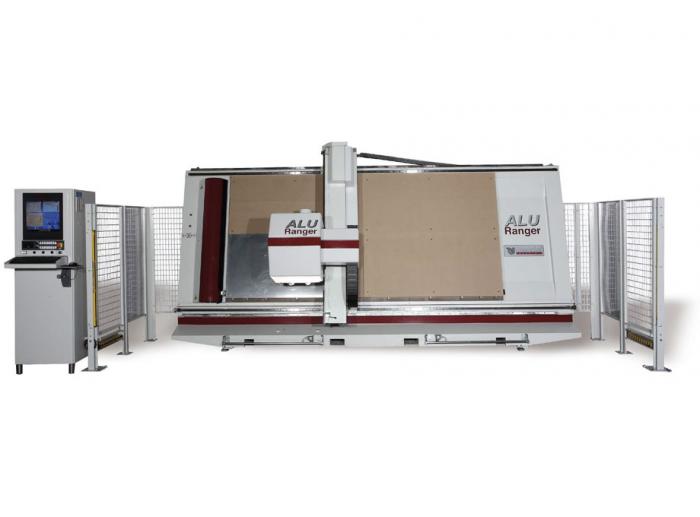

RANGER is the Panel Router with Vertical Table for high-speed panel cutting, drilling and milling.
Ranger is a machine designed and equipped to process panels made of different materials, such as solid aluminium, ACM, HPL, fibre cement and plastic, which are used in a variety of sectors, including architecture, industry, transport, interior design and signage.
The verticality of the worktable, its solid construction and patented automation systems are just 3 of the main features of Ranger that ensure increased safety, efficiency, cleanliness and quality during processing.
You get fast, accurate processing on a small footprint, simple programming, and - thanks to gravity - clean working surfaces.
Make an enquiry about the Muratori ALU Ranger

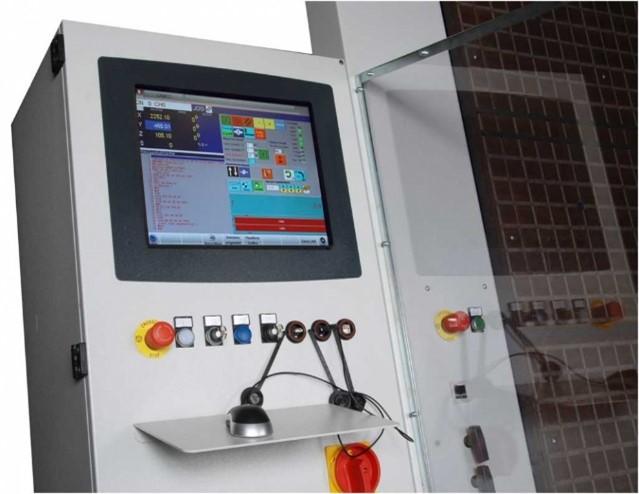

PC controller system
Up to 7-axis control (X, Y, Z interpolating)
17” LCD colour monitor
Ethernet and USB connection to PC.
An optional hand-held remote can be supplied with 4 lines and 16 characters with speed control and manual axis control.
- Space saving and maximum accessibility
- Machine frame electrowelded with monolithic structure
- "Gantry" type beam to reduce vibration
- Three-axis movement via quality componentry, including brushless AC servomotors and digital Yaskawa drivers
- High production speed with dedicated working units
- Friendly user programming with variable parametrics
- Vertical working table ensures panels are always clean from shavings, due to the advanced dust extraction system - and gravity.
The ALU Ranger comes in a variety of sizes and configurations. The 4216 detailed here is just one of several models available.
| Maximum cutting height | X = 30, Y = 30 & Z = 10m/min |
|---|---|
| Total input power | 10kW |
| Spindle speeds | 18,000rpm |
| Main spindle | 3.3kW x 2 |
| X, Y, Z working area | 4200 x 1600 x 80mm |
| Interface | USB |
| Drive system | Servo |
| Vacuum | 1 x 100m³/h. 5 zones |
| Weight | 2200kg |
Specifications are subject to change without notice.
