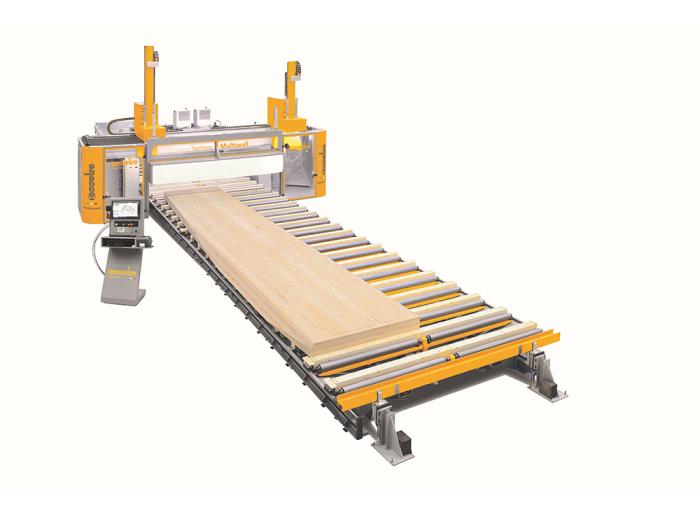

Solid and flexible NC working centre with mobile portal frame to process walls.
NC working centre to process curved beams, X-LAM / CLT walls, SIPS walls and frame walls with dimensions up to 6000 mm in width, 480 mm in thickness and unlimited length.
Make an enquiry about the Essetre Techno Multiwall

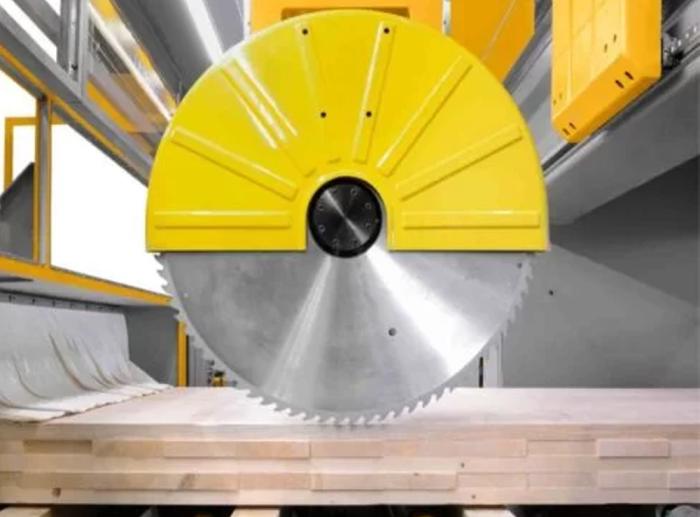

Blade Unit
Special 1200 mm diameter 5-axis blade unit with 55 kW motor in S6 at 400 rpm for cutting walls up to 400 mm thick.

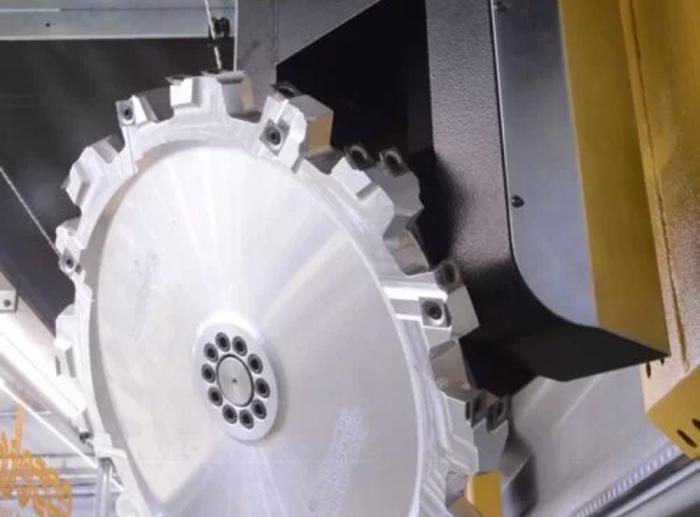

Milling Unit
5-axis milling unit with cone HSK80F and 53 kW motor in S6 at 6000 rpm, complete with 9-positions tool changing magazine.

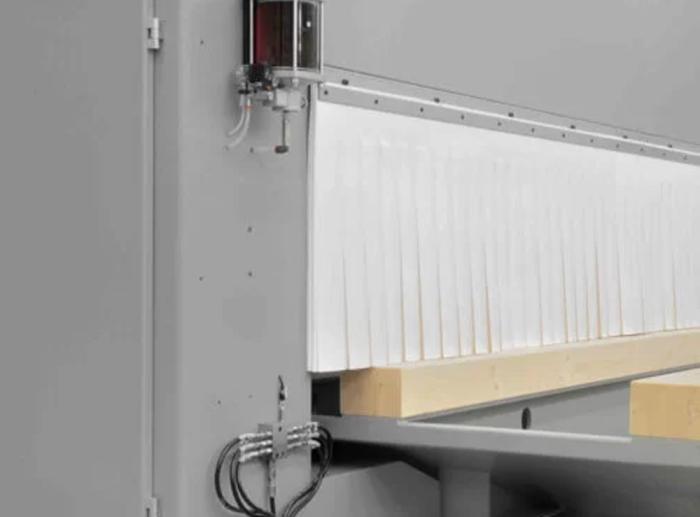

Portal Frame
The working area consists of a moving portal frame integrated with the structure.

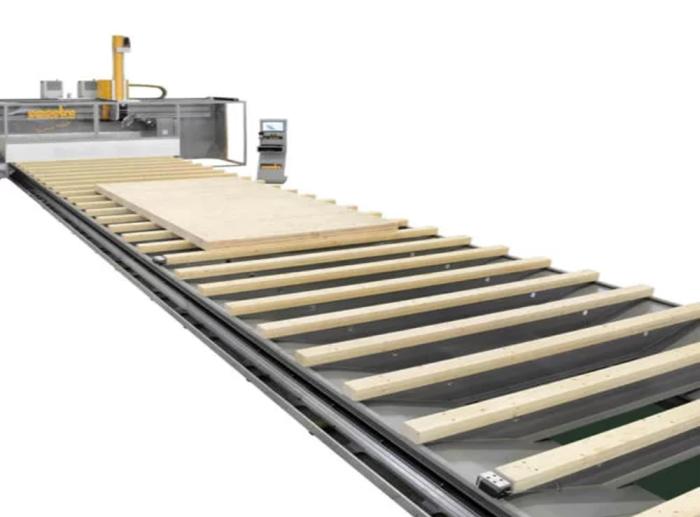

Wall Working Area
The wall working area consists of a basement in electro-welded mechanical carpentry on which the mobile portal frame slides and on which different types of walls can be processed thanks to the many applicable options. It is also designed to convey chips onto a motorised conveyor belt.

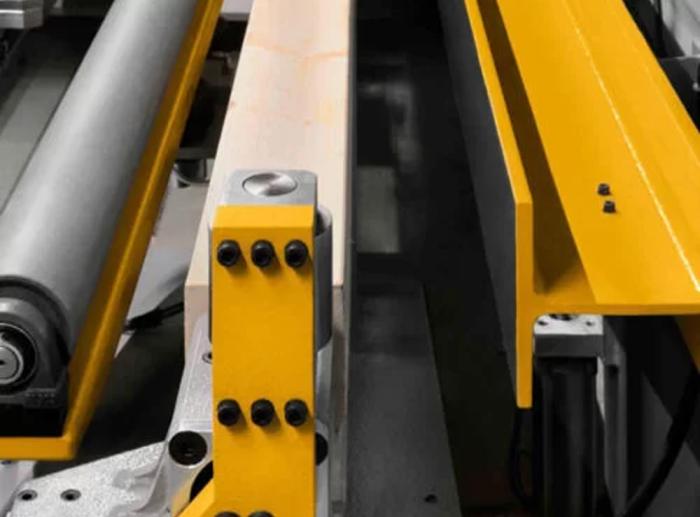

References
Hiding references for the positioning of the piece.

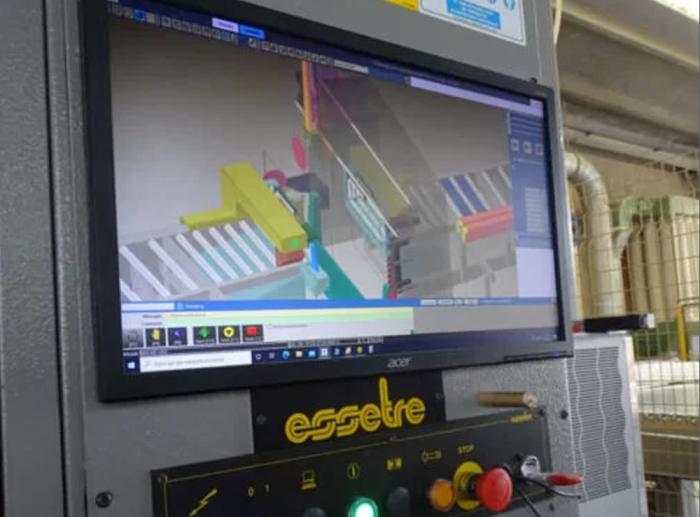

E-Live Software
The machine is controlled by the new Essetre E-Live Software, with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures.
The software is also equipped with a simulation and anti-collision system.
Specifications are subject to change without notice.
