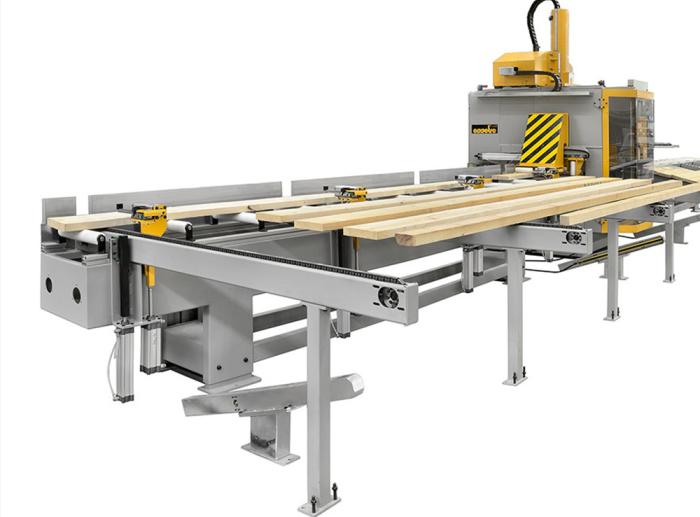

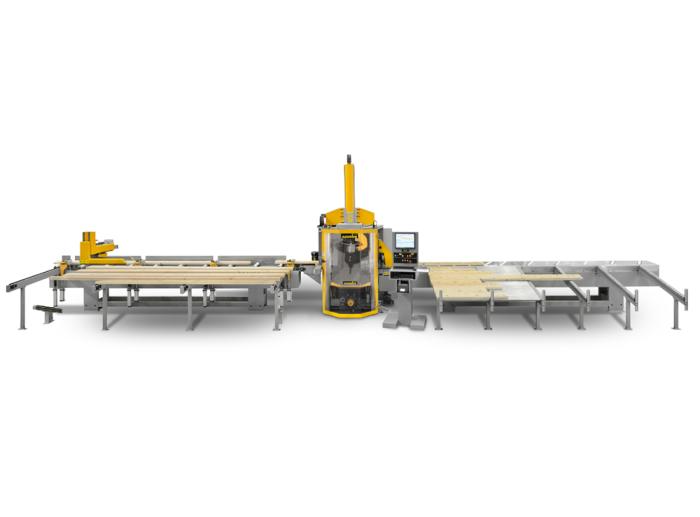

Compact, flexible and intuitive machining centre ideal for small sections, this NC machining centre is ideal for cutting and machining trusses, frame house elements, light and solid wood beams. Maximum working section 450 x h 150 mm.
Make an enquiry about the Essetre Techno Saw

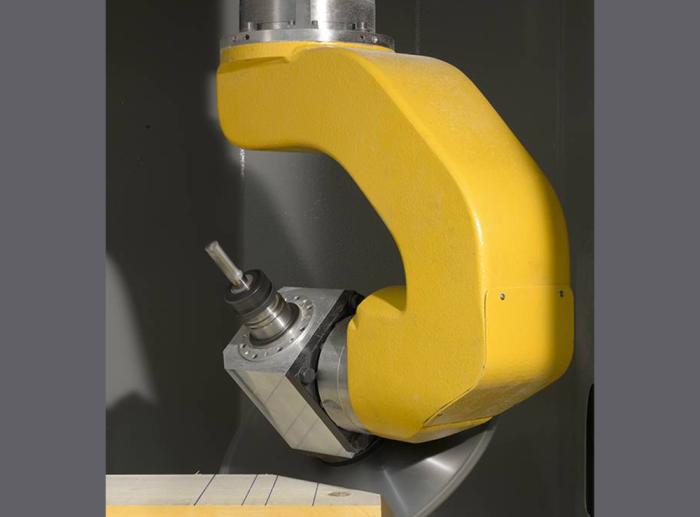

Milling Head
Patented milling head with 5 continuous interpolating axis for the processing of the 6 faces of the workpiece. Patented dual output motor with HSK63F tool holder.

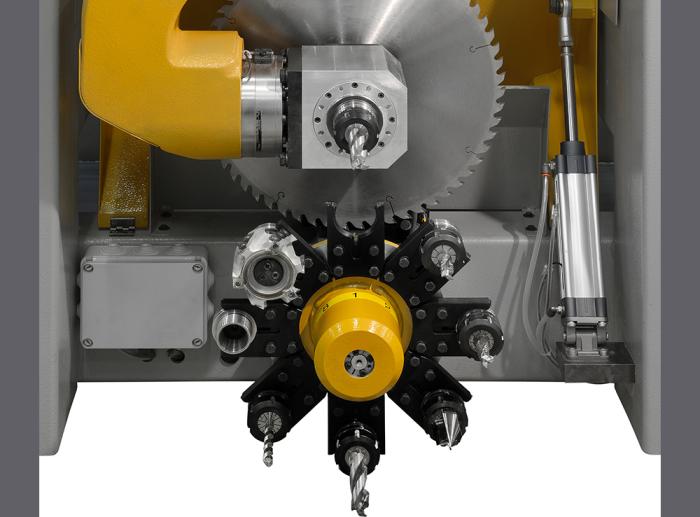

Tool Magazine
Rotative tool changing magazine with 8 positions for HSK63F cones, managed by a controlled axis. The magazine is installed on the front of the cabin, complete with automatic cover to keep cones and tools clean.
Loading Area
Additional loading area to process workpieces up to 13000 mm, consisting of 5 fixed supports on the machine structure equipped with motorized chains for the automatic loading of boards and beams on the loose rollers of the machine entry plan.

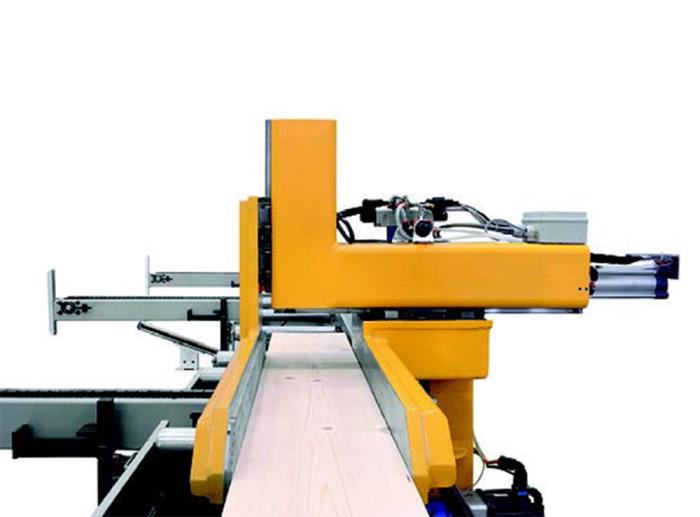

Automatic Clamp
Automatic clamp controlled by NC upon linear guides movement.
Console
The control console complete with NC is installed on the machine structure through a hinge system, which allows it to be oriented in multiple positions.
A remote control panel is available complete with manual controls of the axis movement, START, STOP and RESET of the program.
E-Live Software
The machine is controlled by the new Essetre E-Live Software, with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures.
The software is also equipped with a simulation and anti-collision system.
Specifications are subject to change without notice.
