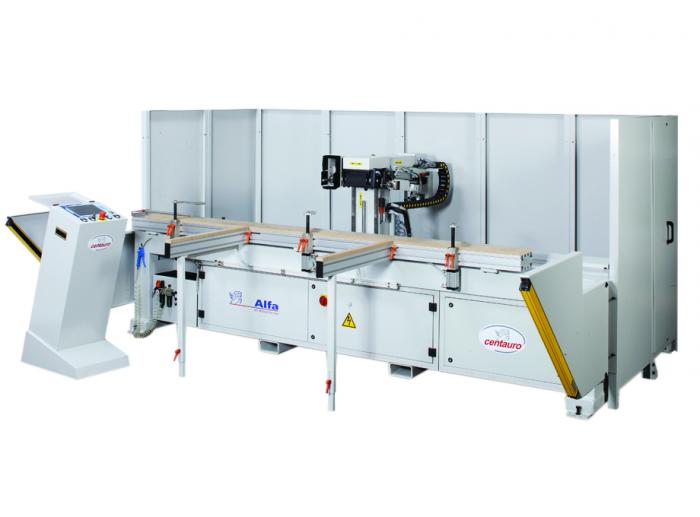

The Alfa is a highly flexible CNC milling machine for a quick and precise peparation of hung doors. It also offers the versatility of milling the preparation of stair stringers and louvre doors.
Make an enquiry about the Centauro Alfa

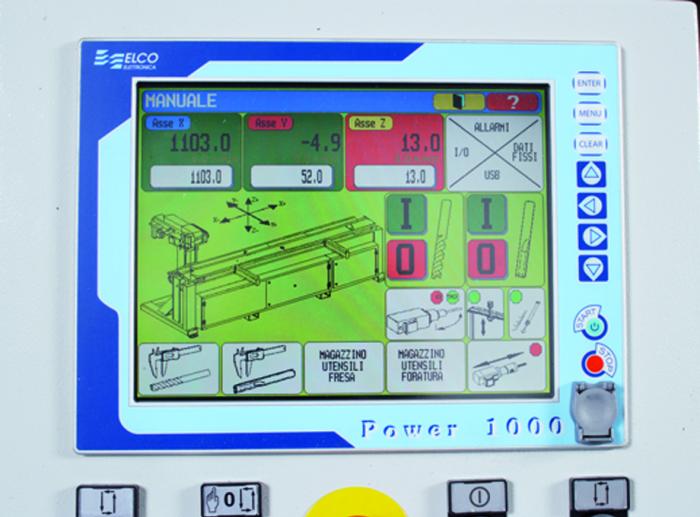

Touch screen controller
Simple touch screen controller. Clear, logical icons and graphics with touch screen interface make operation very simple.
Large database of stored macros are easily adjustable to provide a wide range of milling operations.
Sturdy construction with brushless motors, re-circulating ball screws and lineal guides ensure many years of accurate machining.
Horizontal or vertical milling of doors, windows, frames or beams.
Workpiece thickness measuring probe ensures accurate milling depth every time.
Compact design makes the Alfa easy to place in your workshop.
| Air pressure | 6 bar |
|---|---|
| Dust extraction | 1 x 80mm Ø; 2 x 100mm Ø |
| Dimensions (W x D x H) | 4050 x 1610 x 2690mm |
| Axis output X, Y, Z (milling unit) | 2800 x 180 (400 optional) x 150mm |
| X, Y, Z working area | 2400mm x 180mm x 150mm |
| ER32 collet for milling cutter 16mm Ø | 1 |
| Retractable rear stops | 2 |
| Front clamps | 3 |
| Side stops | 2 |
| Front table extensions for piece support | 2 |
| Router motor power | 3.3kW (5.5kW optional) |
| Router motor speed | 0-18,000 rpm |
| Drilling angle | -10 to +45° |
| Controller memory | 99 programs (50 lines each) |
| Axis speed (X, Y, Z) | 35/6/6 m/min |
| Working table dimension | 3000 x 618mm |
| Weight | 1250kg |
Specifications are subject to change without notice.
Made in Italy, Centauro manufacture a range of quality CNC machines specifically for the door and window industry.
