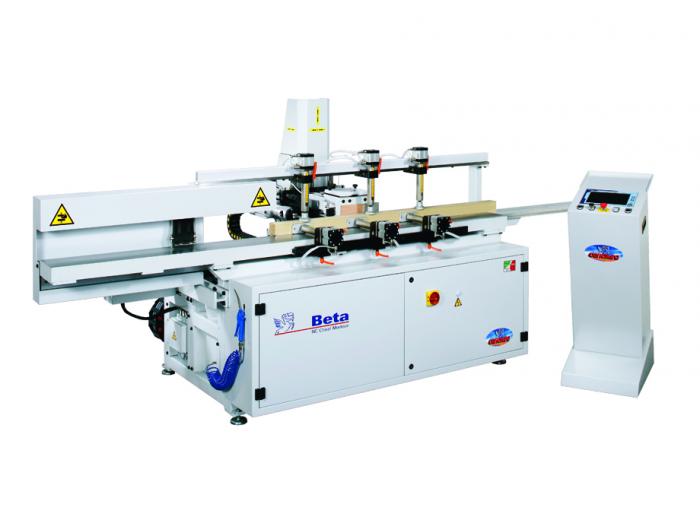

21st century mortising - extremely clean, fast and accurate mortising for window and door parts.
Make an enquiry about the Centauro Beta

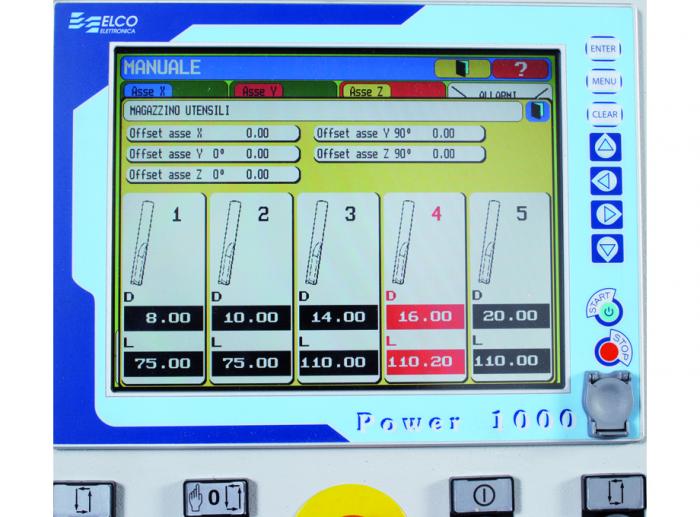

Touch screen controller with pre-installed macros
Clear, logical icons and graphics with touch screen interface make operation very simple.
Large database of stored marcos are easily adjustable to provide a wide range of mortise operations.
Optional milling head can be equipped for hinge recessing and slotting for louvre doors
Optional hollowing chisel head allows the execution of small square holes on door or window parts for the introduction of intermediate wooden strips, or vertical mortise slots thanks to programmable Zaxis operation
Axis traverse with brushless, hi torque and low maintenance motors
X, Y and Z axis movements are all via re-circulating ball and screw drives and use linear slideways to give maximum positioning accuracy
| Dust extraction | 1 x 80mmØ X 1 x 60mmØ |
|---|---|
| Dimensions (W x D x H) | 3850 x 1780 x 1505mm |
| Router motor power | 2.2kW (optional) |
| Controller memory | 99 programs (50 lines each) |
| Axis stroke (X, Y, Z) | 1100 x 250 x 100mm |
| Axis speed (X, Y, Z) | 25, 6, 5 m/min |
| Maximum workpiece width | 200mm |
| Maximum swing chisel length | 210mm |
| Maximum swing chisel thickness | 20mm |
| Minimum slot length (swing chisel) | ~25mm |
| Minimum slot thickness | 6mm |
| Working table dimension | 1210mm x 215mm |
| Vertical pneumatic clamps | 3 |
| Horizontal pneumatic clamps | 3 |
| Swing chisel motor power | 2.9kW |
| Hollow chisel motor power (optional) | 0.75kW |
| Weight | 1430 kg |
Specifications are subject to change without notice.
Made in Italy, Centauro manufacture a range of quality CNC machines specifically for the door and window industry.
