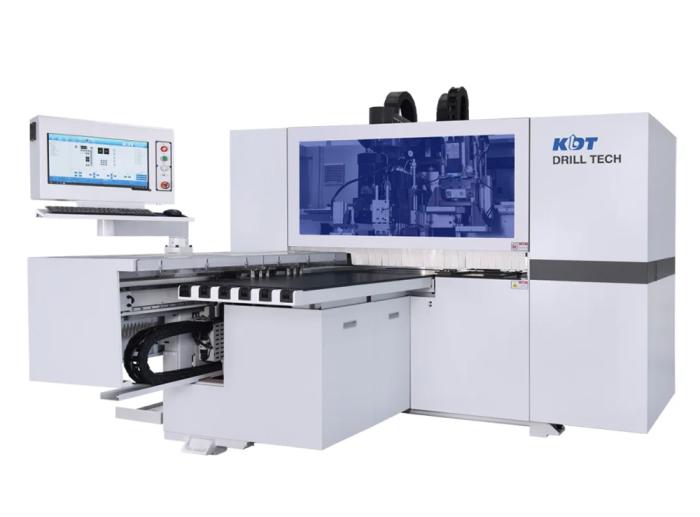

6-Sided drilling and routing in one process.
Advanced Spindle and Tool Change System
Equipped with a powerful 5.5KW spindle and an automatic tool changer, this CNC drilling machine excels in handling a wide range of processing techniques. Whether you need slotting, milling, or working on complex, invisible parts, this machine offers the flexibility and precision required for diverse manufacturing tasks.
Heavy Duty Machine Frame Construction
It starts with a solid machine frame. The machine frame is made from steel beams 260 x 160 x 8mm. Approximate weight 3000kG.
The frame is robotically welded then put through an annealing process whereby it is heat treated to 590°C. The frame is then powder coated and machined on a 5 axis CNC.
Precision Air Bearing Table
Featuring a double translational air bearing table, this machine ensures exceptional movement flexibility tailored to the exact hole positions. The design not only supports the plate effectively but also enhances drilling accuracy. Additionally, it minimizes dust accumulation at the bottom, maintaining a cleaner work environment and prolonging the lifespan of the machine.
Enhanced Efficiency with Advanced Gripper System
Equipped with double grippers and 3.8-meter-long guide rails. The maximum moving speed of 140m/min significantly reduces unnecessary movements, optimizing the overall processing efficiency. This advanced gripper system ensures reliable, swift operation, helping you meet production demands with ease.
Make an enquiry about the KDT KD-610HZ CNC Drilling Center
6-Sided - Processing Units Configuration

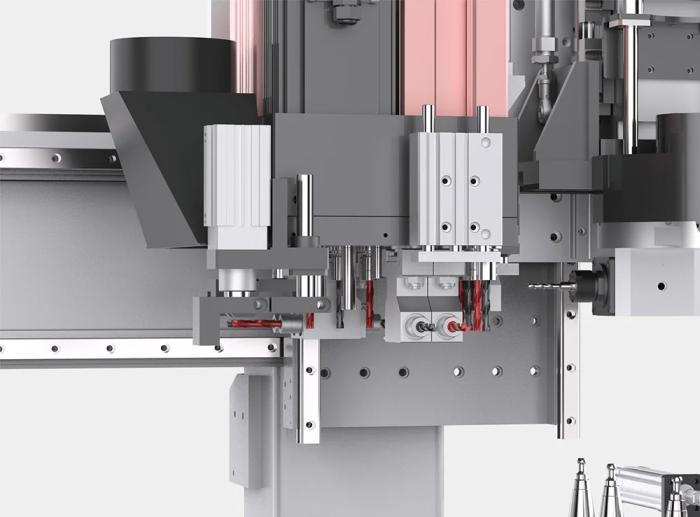

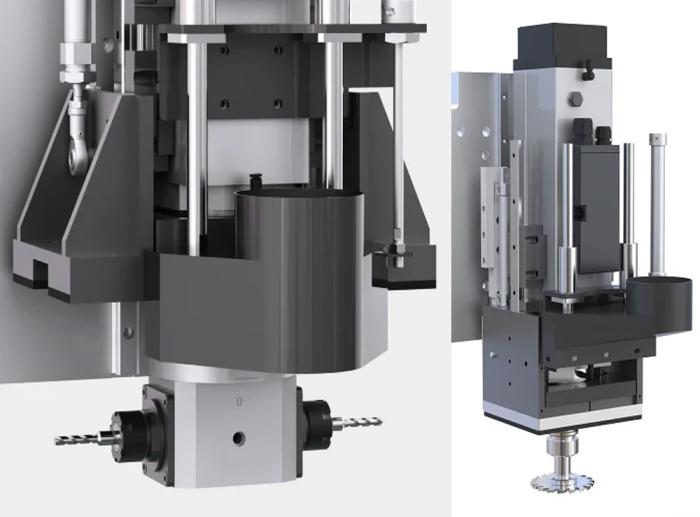

Maximum versatility with 6-Sidedd drilling and routing all in one process. Each unit has its own individual pressure device to ensure the workpiece is held securely for clean and accurate processing. Top Units: Processing from the top down 5.5kW Auto tool change spindle 12 vertical & 8 horizontal spindle drilling head Sawblade for linear grooves in X direction Bottom Units: Processing from the bottom up 3.5kW Manual tool change spindle 12 vertical spindle drilling head
2 Milling spindles
2 milling spindles 5.5kW and 3.5kW , 18000rpm (top and bottom).
The upper milling spindle, due to its increased power, has the ability to work with various tools and carry out various operations - milling under the LAMELLO coupler, side milling and grooving .
5-station linear tool change

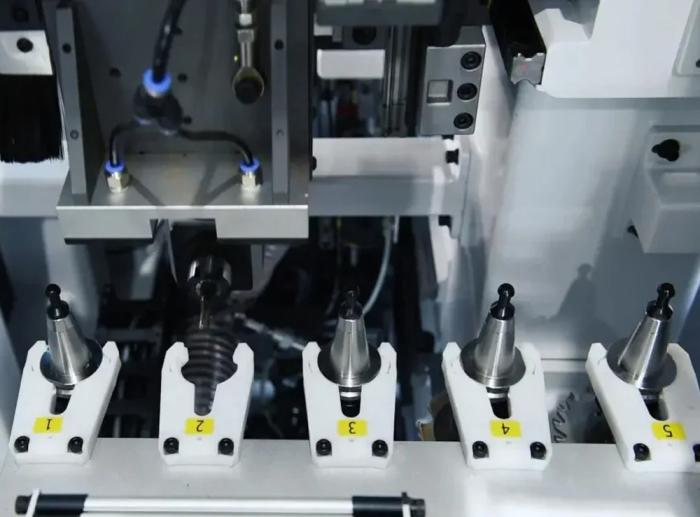

The top milling spindle is equipped with a 5-station linear tool change , which saves time when switching from one type of processing to another.

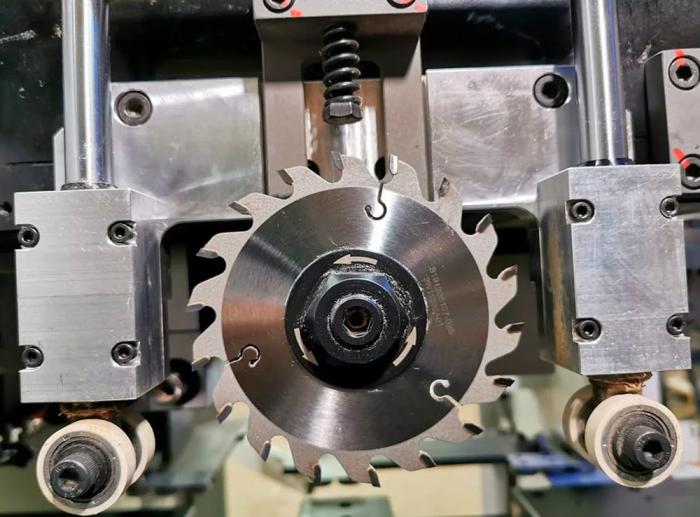

Grooving unit with saw
Grooving unit with a saw (disk diameter 120mm).

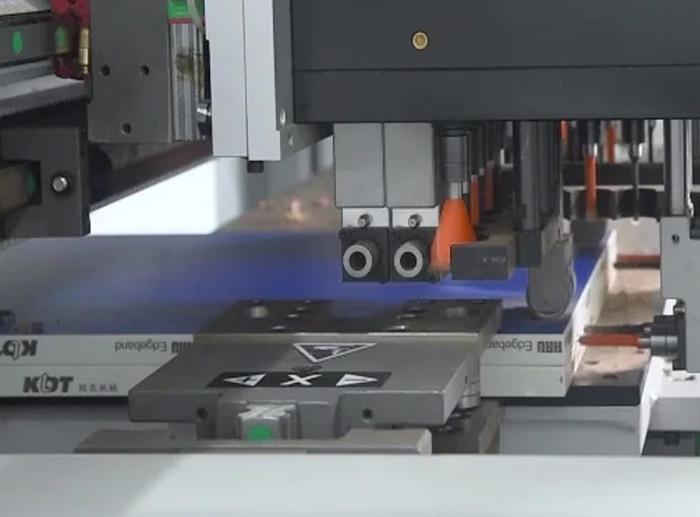

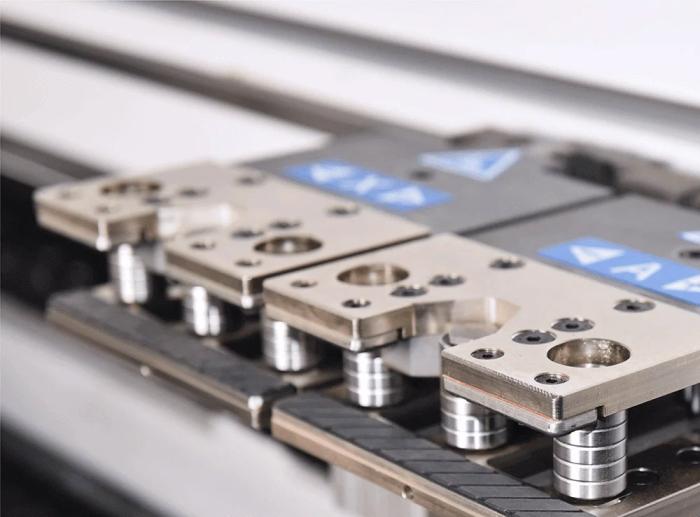

Automatic clamps
Two automatic clamps will allow you to securely fix the workpiece with a length of 70mm. up to 2800mm and perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with a single grip. The maximum speed has been increased to 140m/min .
Vertical clamp

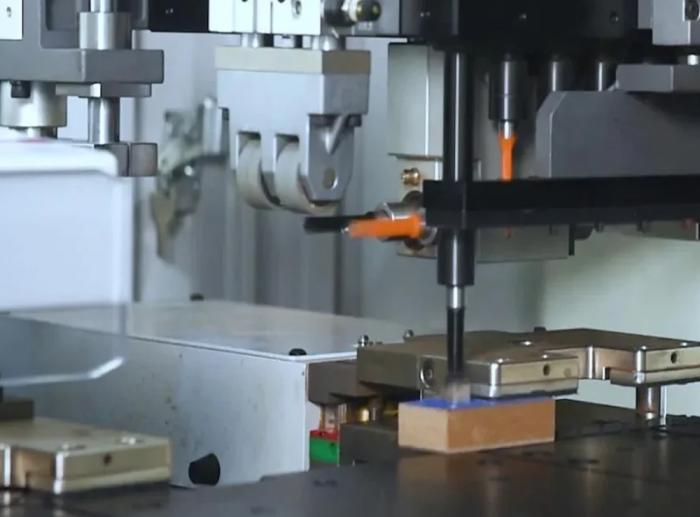

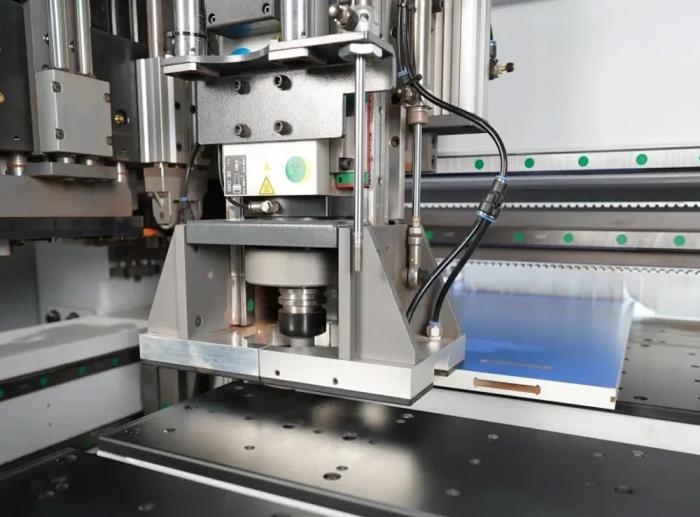

The top milling spindle is equipped with a powerful vertical clamp with two pressure plates . Improves milling accuracy and prevents damage to the workpiece.
Batch drilling mode
Processing of two parts at the same time with a mirror map.

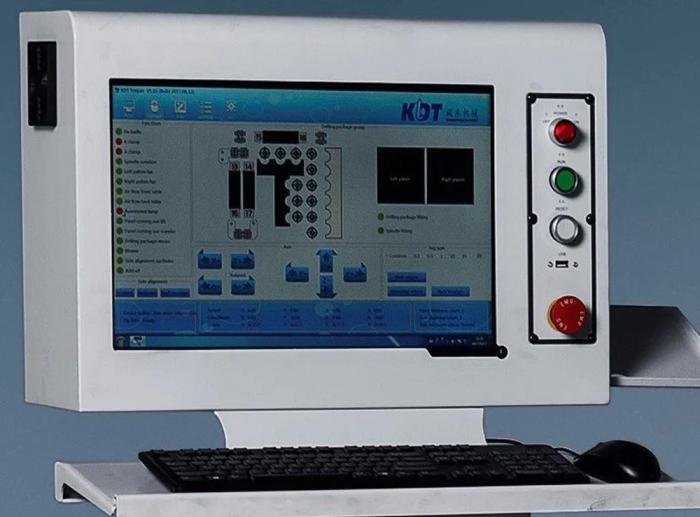

Control panel
CAD/CAM control panel with barcode reading capability to increase machine productivity.
Scanner
A barcode scanner is included in the basic equipment of the machine.
Easy workpiece movement

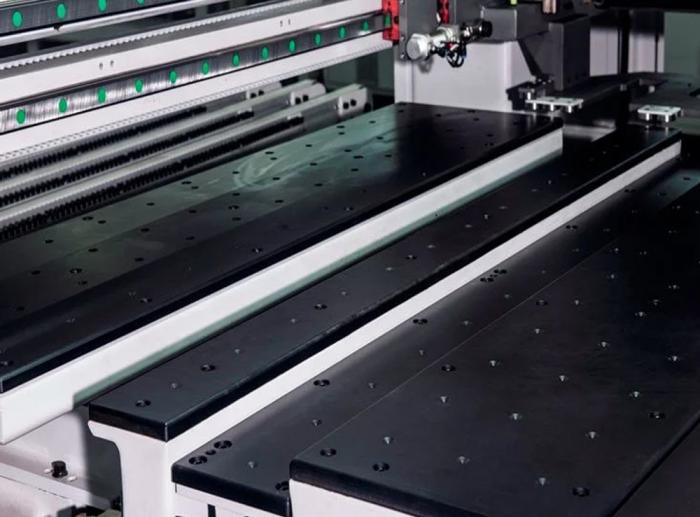

Easy movement of parts on the table occurs due to the air flow supplied by a special electric fan through the holes in the upper part of the table, thereby eliminating the possible appearance of scratches on the lower surface of the part.
Big and small workpiece capability
The minimum workpiece size is 70x35mm , which allows for the addition of small-sized parts.
High-precision servo drives

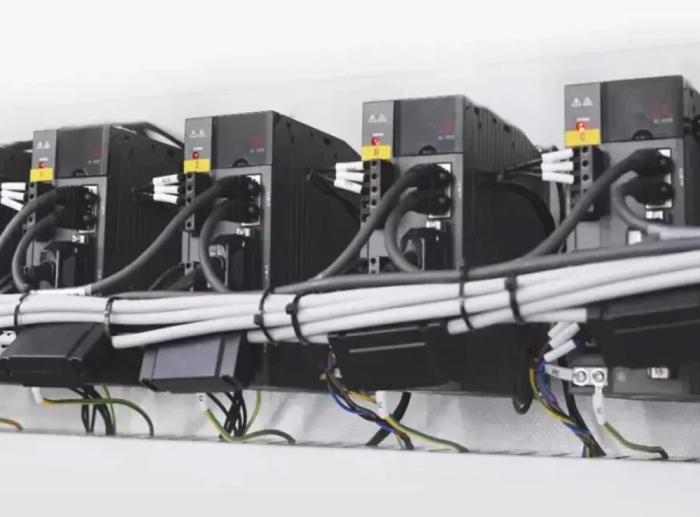

Using high-precision INVT servo drives for superior precision and high productivity.

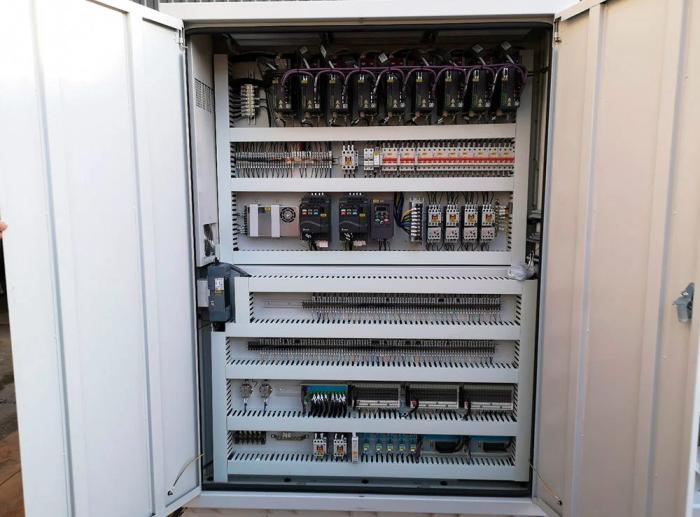

Dust and moisture resistant cabinet
Sealed dust and moisture resistant cabinet with electronic components from the world's leading manufacturers is removed from the processing area, which prolongs the service life of electrical components and provides ease of maintenance.
| Total input power | 21.9kW |
|---|---|
| Minimum workpiece length | 70mm |
| Minimum workpiece width | 35mm |
| Spindle speeds | 140 x 90 x 50 m/min |
| Maximum workpiece width | 1000mm |
| Maximum workpiece length | 2800mm |
