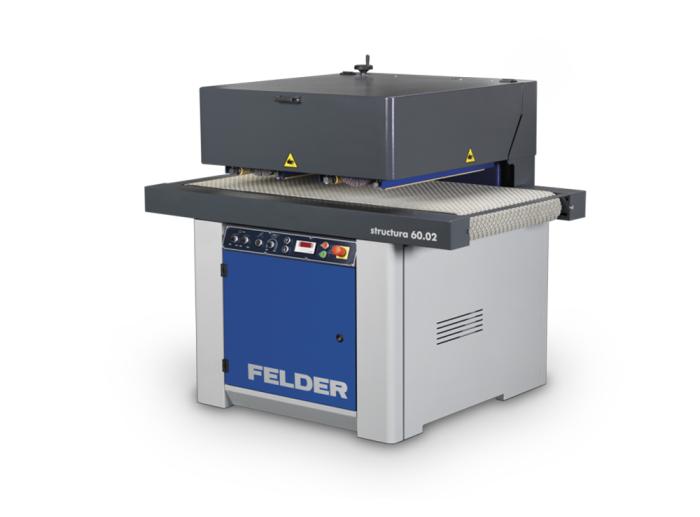

Give your workpiece a new face!
The solid machine chassis of the robust brushing machine structura offers maximum stability. With a working width of 650 mm and a variably adjustable infeed height of 3 to 200 mm, the machine is also suitable for larger workpiece requirements. The single sided mounting of the aggregates enables the processing of oversized workpieces.
The infeed with a table height of 900 mm and a continuous feeding belt with a web structure has an adjustable speed of 2.5–10 m/min.
Make an enquiry about the Felder Structura 60-02
Through feed height of 3-200 mm
With a working width of 650 mm and a variably adjustable infeed height of 3 - 200 mm, the machine is also suitable for larger workpiece requirements.

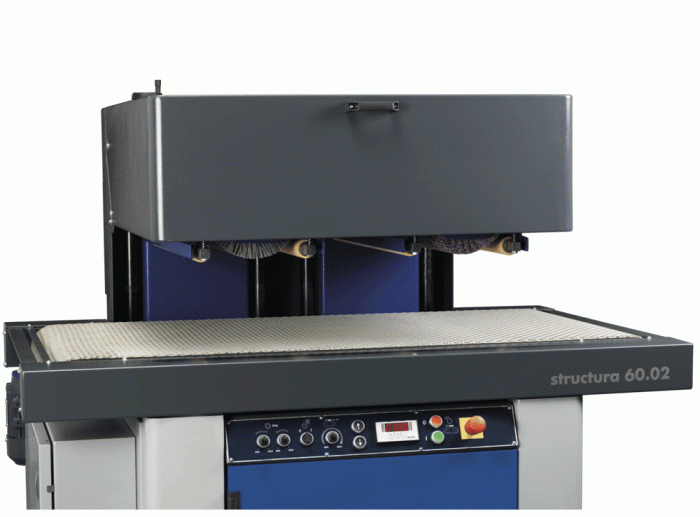

Machine chassis open to one side for extra wide workpieces
The solid machine chassis and robustness the Structura offers maximum stability. The single sided mounting of the aggregates enables the processing of oversized workpieces.

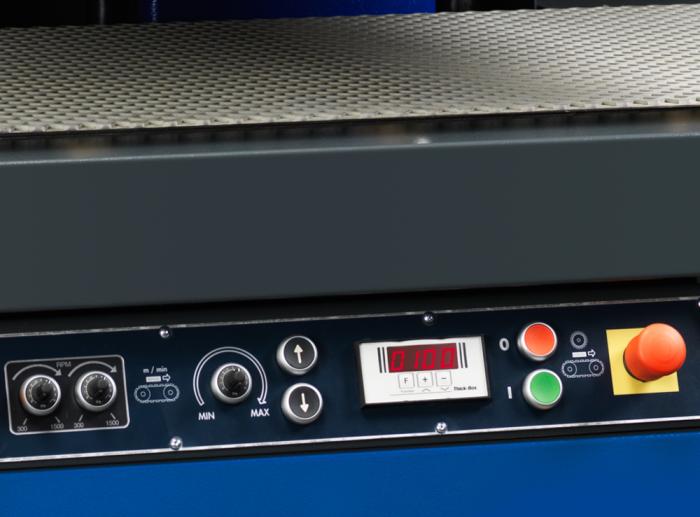

Control panel
The clearly structured and intuitive operating control panel offers maximum operating comfort for maximum productivity.

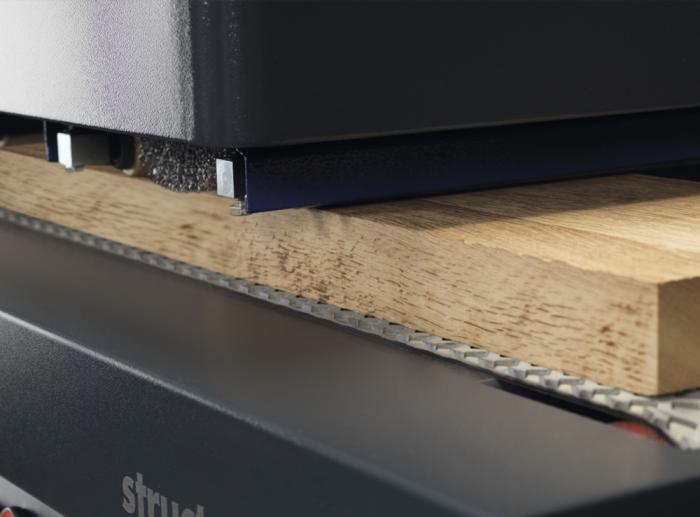

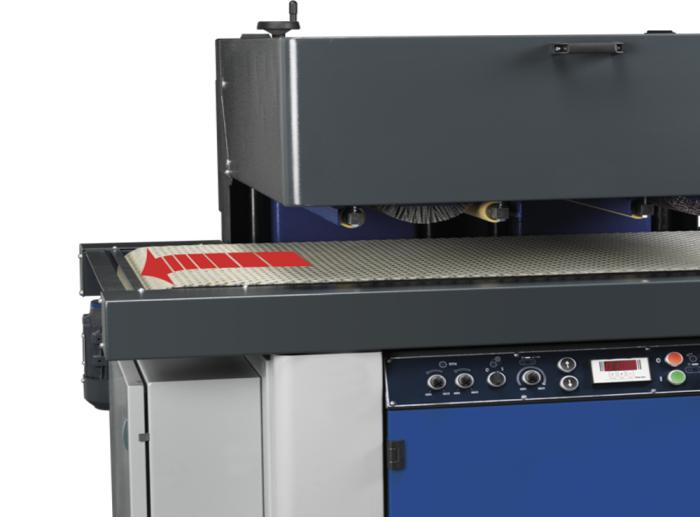

Variable feed speed adjustment for optimum working results
The infeed with a table height of 900 mm and a continuous feeding belt with web structure has an adjustable speed of 2.5 10 m/min.

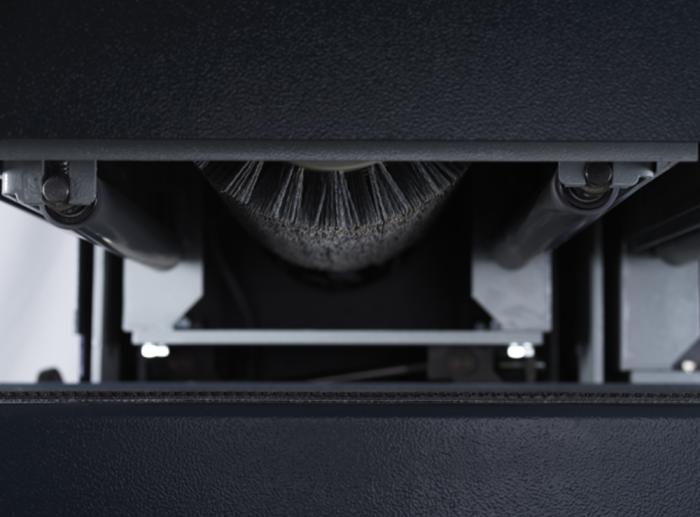

Brush aggregate / steel brush
Both of the brushing units are powered by powerful 4 kW (5.5 hp) motors rotating in the opposite direction to the workpiece feed.
The first aggregate is equipped as standard with a steel brush (D=200 mm). The electrical height adjustment and the manual fine adjustment of the 2 brushing aggregates make it possible to adjust to the required depth of cut quickly and accurately.

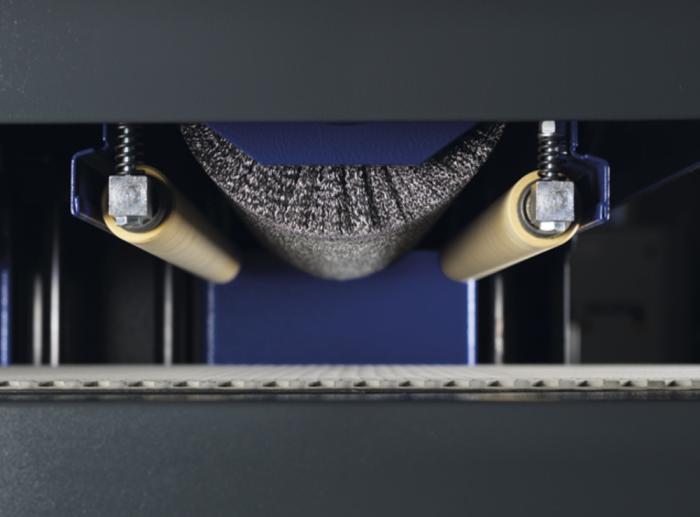

Brush aggregate / tynex brush
The second aggregate is equipped as standard with a Tynex brush (D=200mm K60). The electrical height adjustment and the manual fine adjustment of the 2 brushing aggregates make it possible to adjust to the required depth of cut quickly and accurately.
Both of the brushing units are powered by powerful 4 kW (5.5 hp) motors rotating in the opposite direction to the workpiece feed.

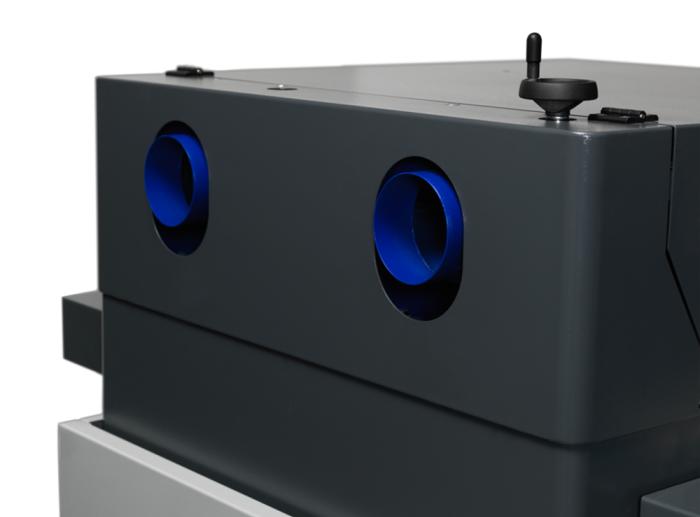

Dust extraction
Excellent planing results
| Motor | 4 kW (5.5 hp) |
|---|---|
| Dimensions (W x D x H) | 1455 x 1070 x 1250mm |
| Weight | 850kg |
Specifications are subject to change without notice.
