The FR series Copy Routers work from an interchangeable, pre-designed metal template. Often used for key locks, the shape is transferred to the workpiece by using one of the two copy pins to trace the template.
Copy Routers can also produce rectangular, square shapes or slots without a template by setting the four head guides to the required positions. The routing method is fast, accurate and can be utilised with unskilled labour.
Available in 3-phase and 1-phase.
- Traces from metal template
- Twin pin, twin template copying
- Recessed table for through routing
- Manual material clamps (2 x horizontal)
- Router bit included
- Pneumatic material clamps (2 x horizontal)
- Pneumatic spray mist tool lubrication
- Air gun
- Supplied on sheet metal stand

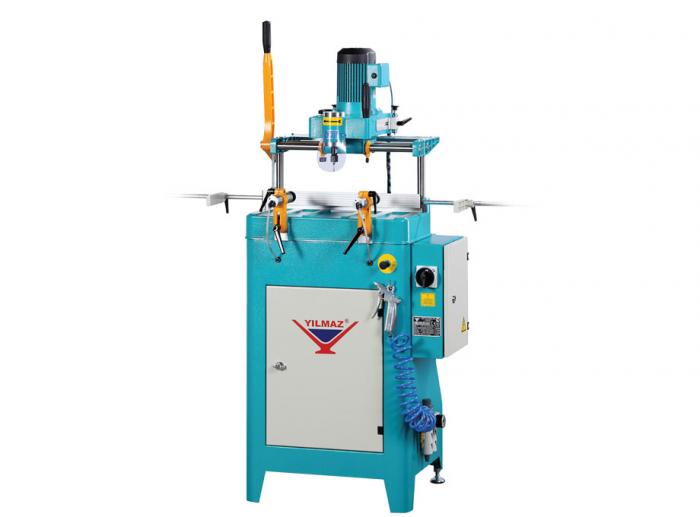

Make an enquiry about the Yilmaz FR221S Copy Router
The FR221S has features and quality not previously available on an entry level router. With a sealed induction motor and including quality Festo and Telemecanique electrical components, the FR221 is designed to give a long, trouble-free life.
Watch a similar model from Yilmaz on youtube below.
| Motor | 750W (1hp) 3-phase 550W 1-phase |
|---|---|
| Dimensions (W x D x H) | 64 x 80 x 149cm |
| Spindle speeds | 14,000rpm |
| X, Y, Z working area | 270 x 110 x 130mm |
| Weight | 72kg |
Specifications are subject to change without notice.
FR221S Copy Router
|
CRM200S Copy Router
|
CRM250S Copy Router
|
|
|---|---|---|---|
| Motor | 750W (1hp) 3-phase 550W 1-phase | 1.2kW (1.6hp) single-phase | 3x 1.1kW (1.5hp) 3-phase |
| Weight | 72kg | 120kg | 370kg |
| Spindle speeds | 14,000rpm | 18,000rpm | 18,000rpm |
Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:
- machine stands
- cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
- clamp and lubricant sprays to ensure you can process your materials securely and efficiently
- saw blades. We stock a variety of blades including specialist blades for aluminium
All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
