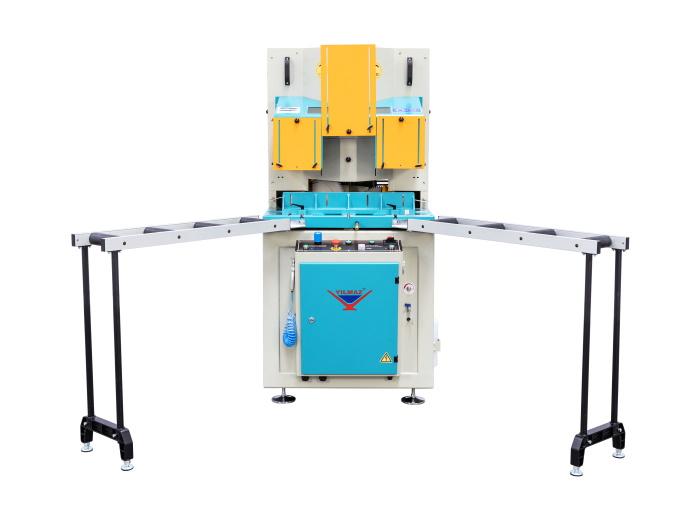

The VK 420 is designed for precise V cutting and 90° end notching with minimal off-cut sizes on aluminium, PVC and timber in one cut.
The saw unit is controlled by a hydro-pneumatic system that has an adjustable stroke speed and cutting height for maximum efficiency across all ranges of profiles being cut.
The fences are easily positioned in a T-slot guideway to adjust the position of cut on the workpiece.
Safety is ensured using adjustable guarding on all 3 sides of the machine in combination with a two-handed saw blade start mechanism.
Make an enquiry about the Yilmaz VK420 V Notching Saw

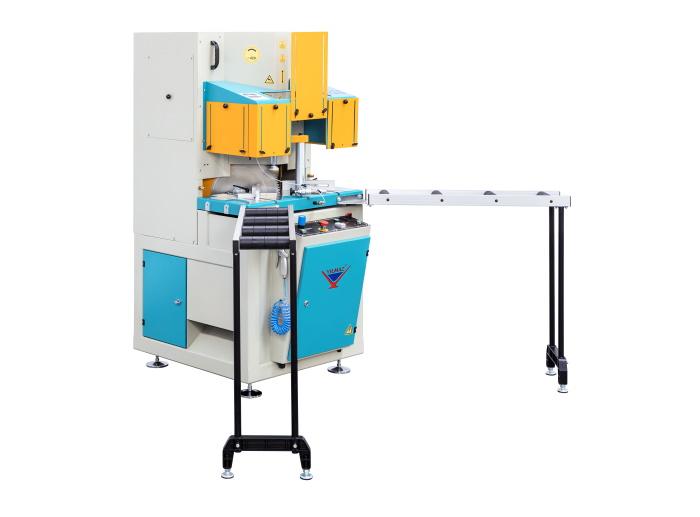

90° End Notching Fence Kit
Clamps, roller tables and fence kit for 90° end notching work included with the machine

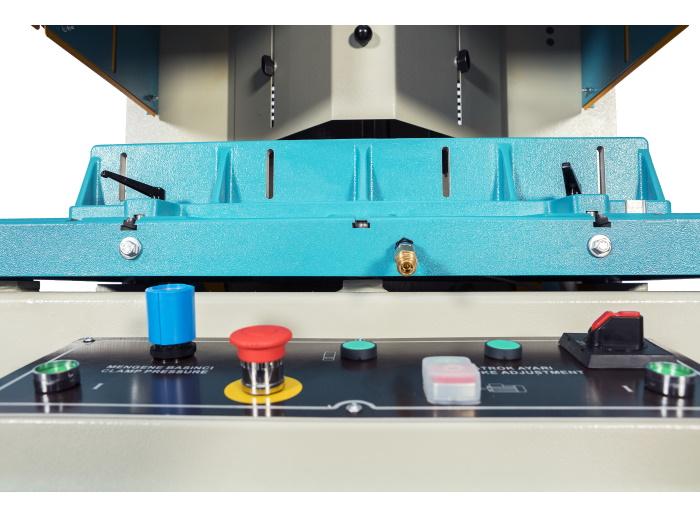

VK 420 Control Panel
The main control panel is clearly laid out and easy to use. The two hand start operation significantly improves safety for the operator

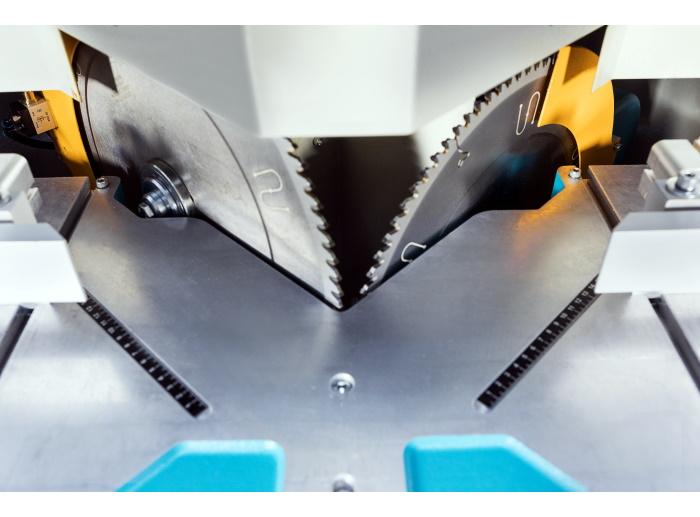

V Cutting Design
The VK 420 design allows two saw-blades to cut a perfect 90° V in one pass
Included Equipment
- 2 horizontal pneumatic clamps
- Additional clamps, roller tables and fence kit for 90° notching operations
- Pneumatic spray-mist blade lubrication
- Air gun
- Solid construction
- Supplied with two high-quality European aluminium sawblades
| Saw blade Ø | 420mm |
|---|---|
| Maximum cutting height | 230mm |
| Saw blade speed | 2750rpm |
| Motor | 2x2.2kW (3hp) 3-phase |
| Air pressure | 6 - 8 bar |
| Dimensions (W x D x H) | 89 x 115 x 186cm |
| Air consumption | 50L/min |
| Weight | 360kg |
Specifications are subject to change without notice.
Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:
- machine stands
- cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
- clamp and lubricant sprays to ensure you can process your materials securely and efficiently
- saw blades - we stock a variety of blades including specialist blades for aluminium
All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
