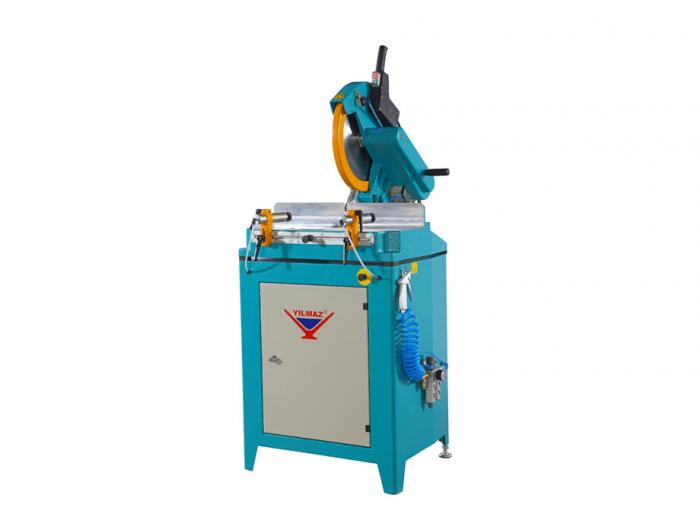

The KD400P mitre saw, with industry-leading cutting capacity, is ideal for commercial and industrial aluminium mitre cutting.
Available in 3-phase and 1-phase.
- 400mm blade capacity
- Mitre facility 0 – 45° left and right, indexed at 0, 15, 22.5, 30 & 45°
- Heavy duty construction
- Poly vee belt drive
- Pneumatic material clamps (2x horizontal)
- Pneumatic spray mist saw blade lubrication
- Air gun
- Supplied on sheet metal cabinet stand
- German high quality TCT Aluminium blade included (400 x 30mm x 108T)
Make an enquiry about the Yilmaz KD400P Mitre Saw

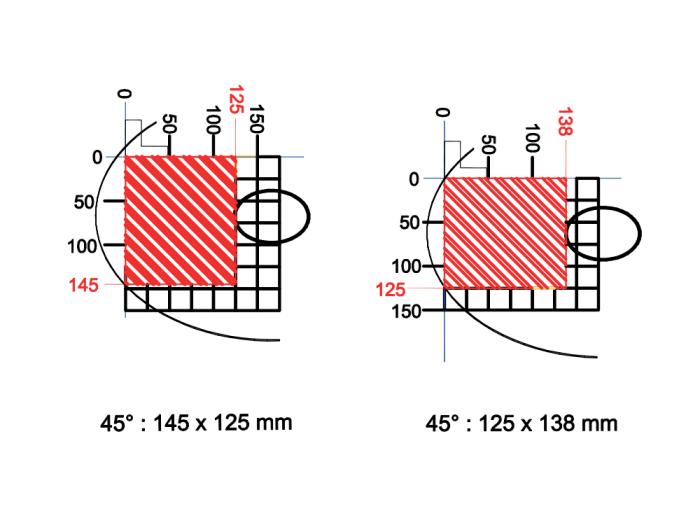

Cutting Diagram 45°

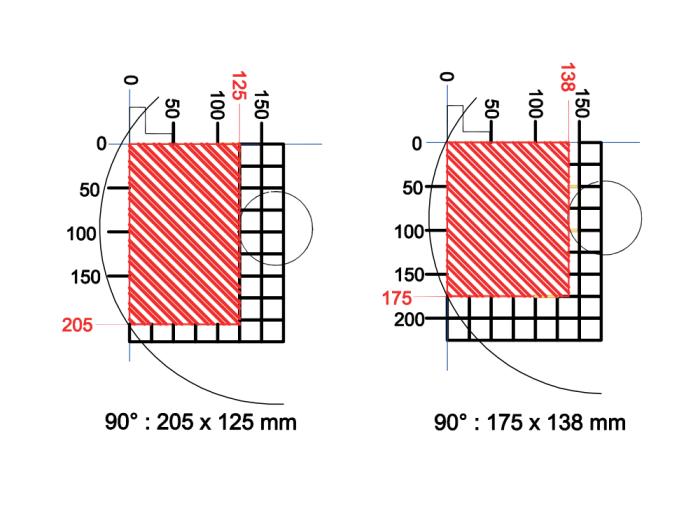

Cutting Diagram 90°
| Saw blade Ø | 400mm |
|---|---|
| Saw blade speed | 3000rpm |
| Motor | 2.2 kW (3hp) |
| Air pressure | 6 - 8 bar |
| Dimensions (W x D x H) | 71 x 80 x 149cm |
| Air consumption | 7L/min |
| Weight | 120kg |
Specifications are subject to change without notice.
KD400P Mitre Saw
|
KD400M Mitre Saw
|
|
|---|---|---|
| Motor | 2.2 kW (3hp) | 2.2 kW (3hp) Single-phase |
| Weight | 120kg | 70kg |
| Saw blade Ø | 400mm | 400mm |
| Saw blade speed | 3000rpm | 3000rpm |
| Dimensions (W x D x H) | 71 x 80 x 149cm | 70 x 64 x 61cm |
Jacks and Yilmaz provide a range of accessories to suit your manufacturing needs, including:
- machine stands
- cutting lubricant to ensure your cutting is accurate and your tooling is kept in the best shape
- clamp and lubricant sprays to ensure you can process your materials securely and efficiently
- saw blades - we stock a variety of blades including specialist blades for aluminium
All Yilmaz machines Jack sell meet the requirements for ‘CE’ or European Conformity – the strict standards for safety, public health and consumer protection as required by the European Union.
Aluminium processing machines and equipment
