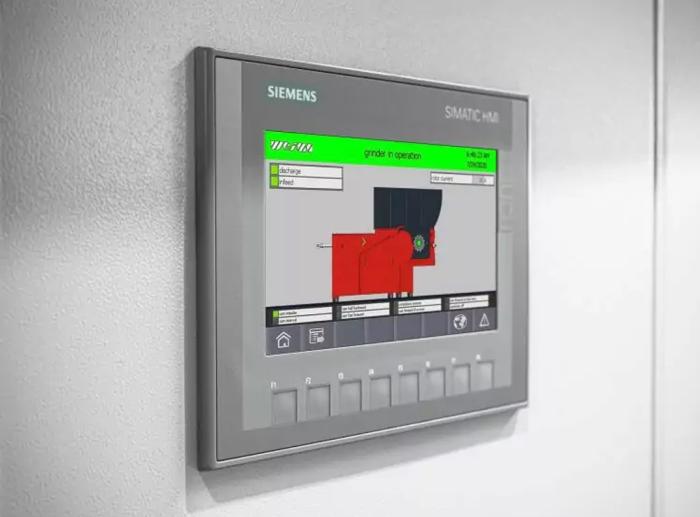

Flexible control for changing material flows

Weima only requires one control panel to precisely control one or more machines, this includes operating the conveyor system. The built-in Siemens PLC control is optimally adapted to the shredding process. Various slide controls and rotor settings can be conveniently adjusted to the desired application.

All control cabinets are designed in-house and built in Weima's German production facilities.

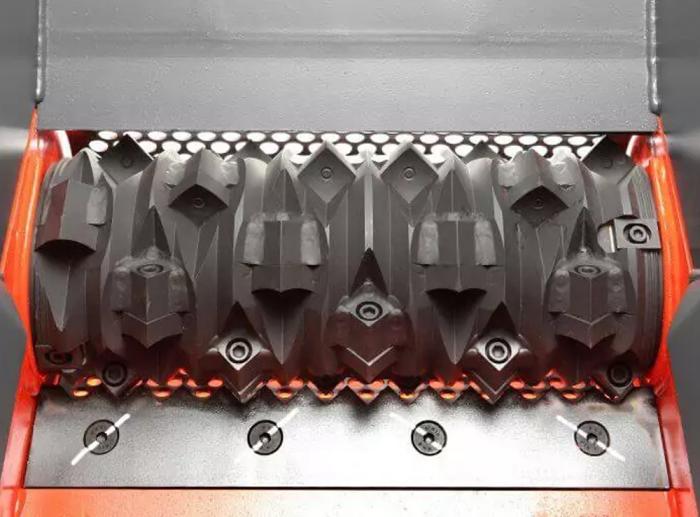

V rotor for demanding applications

Many of our customers describe the profiled V rotor as a best in class for shredding. The material intake is optimally designed with two rows of knives.

The V rotor results in high throughput, low energy consumption, reduced thermal stress and low wear costs.

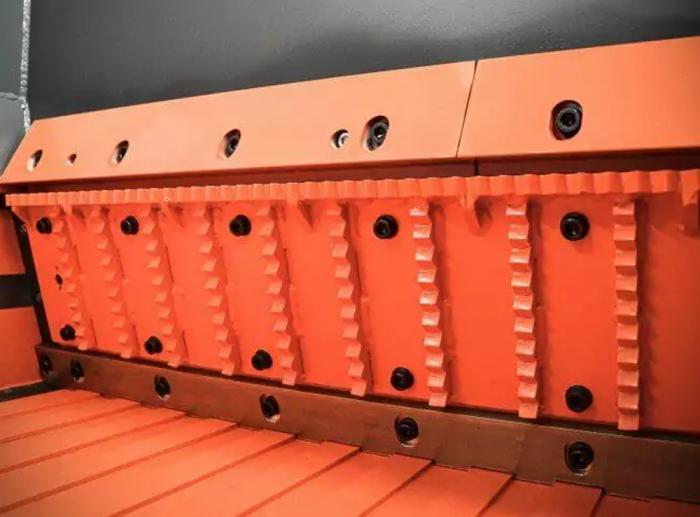

Ram with serrated plate and segmented floor

The ram feed can be controlled manually, cyclically, or load-dependently, depending on the requirements, it makes sense to supplement the classic material ram with more technical options.

To prevent possible jamming and improve its guidance, the ram can be guided on rollers.

In addition, Weima recommends the use of a segmented floor – especially for very thin materials.

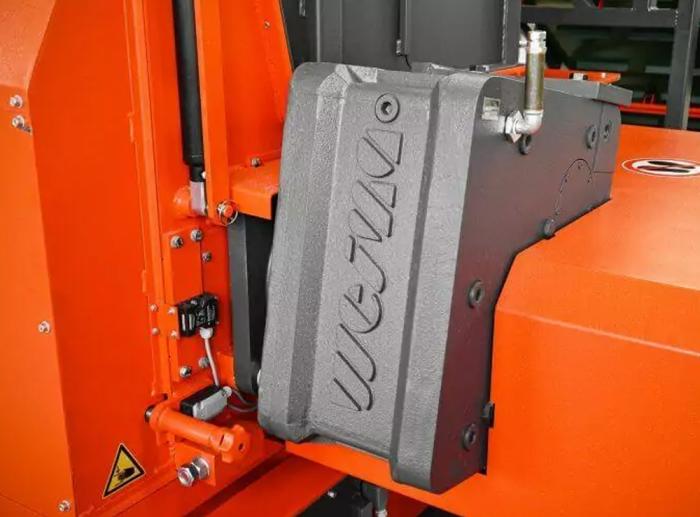

Electromechanical drive with WAP gearbox

For most applications, electromechanical drives are the classic choice because they are easy to maintain and robust. Weima's special feature: they manufacture their own gearboxes that are specially designed for shredding operations. Torque monitoring and shock-absorbing vibration dampers round off the package. A hydrodynamic start-up clutch is available as an option for further protection of the machine.

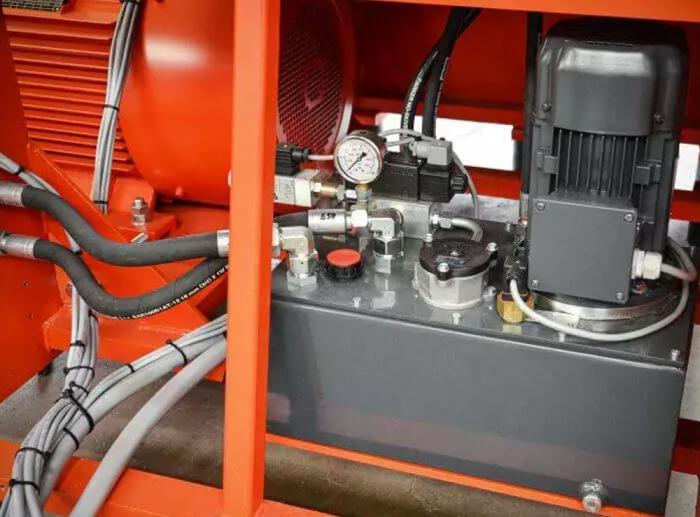

Higher throughputs with turbo hydraulics

The ram of a shredder is moved back and forth hydraulically with turbo hydraulics, this happens even faster, for continuous operation.

Additional oil cooling and a length measuring systems are available upon request.

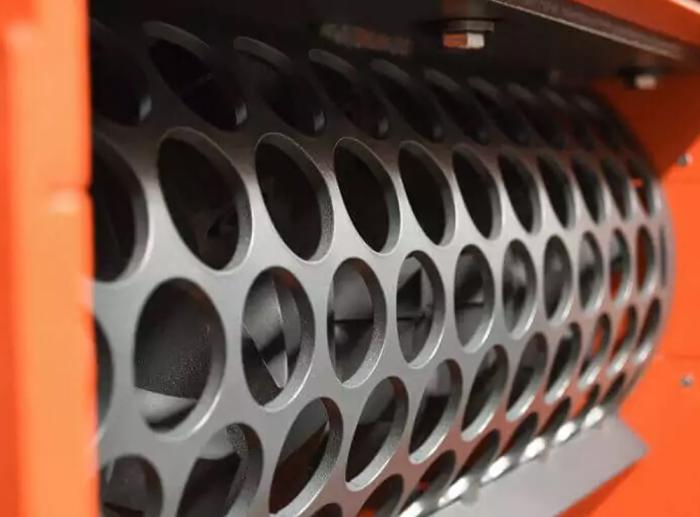

Interchangeable screen

Achieve consistent shredding results with the flexible, interchangeable screen

Adapt the screen to your needs. The smaller the hole diameter, the finer the shredded material that is discharged.

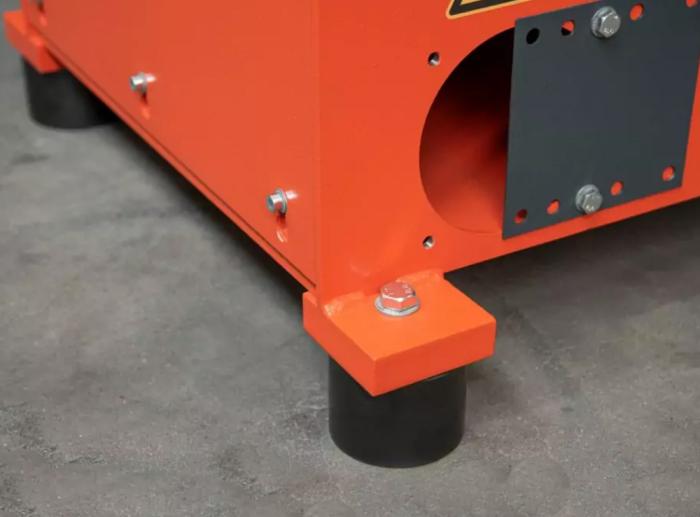

Vibration-damping rubber feet

Thanks to the compact feet made of hard rubber there is no need to anchor the machine to the plant floor. The installation remains flexible. More importantly, disruptive vibrations that negatively affect the surrounding area are effectively avoided.
